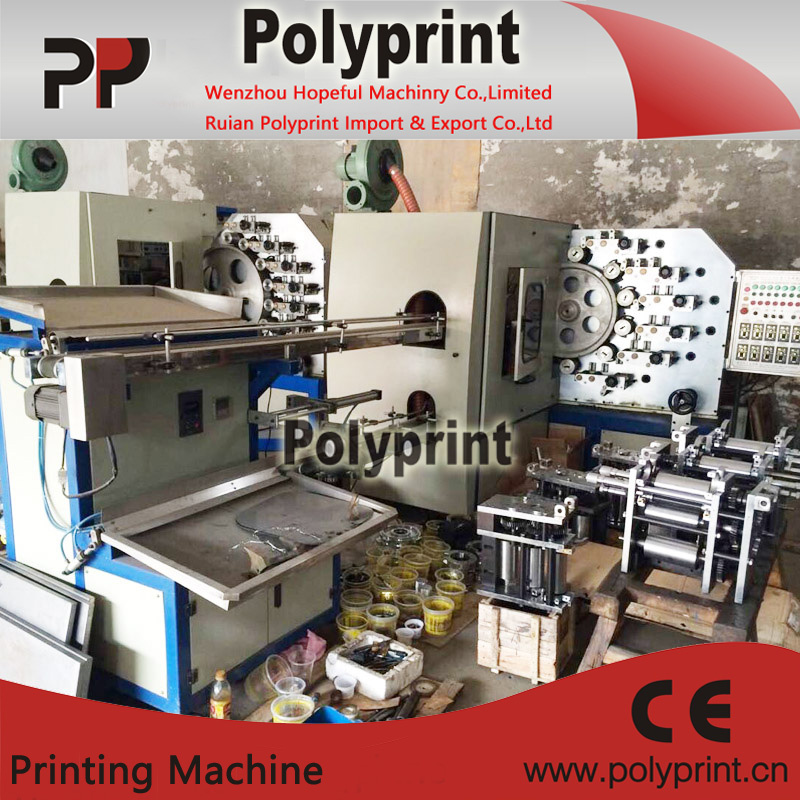

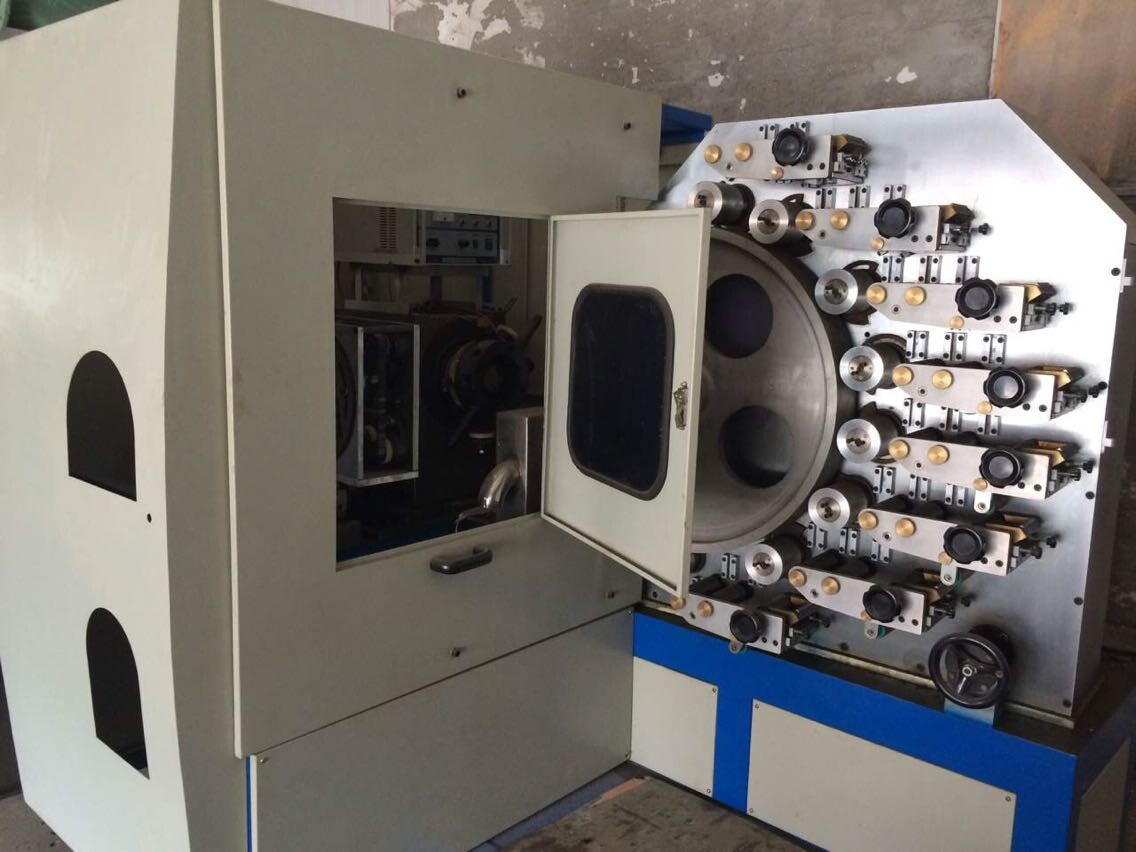

Automatic Offset High-Performance Printing Machine (PP-4C)
| Price: |
US $ 53500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Products Description:
FEATURE:PP-4C six color curved offset lithograph machine adoption domestic and international forerunner technique at design. All have more big renewal, make machine at operation, usage, maintain etc. Be vivid, convenience, stability credibility.
This machine adopts top and bottom fall into the cup, print ex- electricity Yu processing, print a vestige clear, true.
Lord electrical engineering adoption three mutually change the Pin adjust soon, synchronous take to spread to move, have no the class adjust soon, operation 3teady, have no noise.
Provide the Mo have great capacity a little adjust, all the Mo Gun pressure adjusts convenience, ideal provide Mo.
Print the version install for the fixed position spring coil auto tense, up, bottom print a version convenience, set color to version easy.
Printing Gun tube with print version Gun to establish to hang an arm type and take off to match to adjust to press simple credibility.
After print auto accept the cup, mold head work UV solid turn, auto hide light function, and safety credibility.
This machine is an orientation customer demand, can formation four colors, and many colors machine provide you usage.Technical Parameter:| 1 | Industry Voltage (3 Phase, 4 Wires) | 380V, 50HZ |
| 2 | Printing Color | 4Colors |
| 3 | Printing Speed (depending on material, shape and dimensions of containers to be printed) | 100-170PCS/min |
| 4 | Printing Perimeter | 400mm |
| 5 | Max. Printing Length | 100mm |
| 6 | Min. Printing Length | 20mm |
| 7 | Max. Diameter of container (printing surface) | 140mm |
| 8 | Min. Diameter of container (printing surface) | 45mm |
| 9 | Max. Cup Diameter | 160mm |
| 10 | Min. Cup Diameter | 50mm |
| 11 | Diameter of printing plate roller | 150mm |
| 12 | Diameter of central roller | 600mm |
| 13 | Taper (Printing Angle) | 3°--13° |
| 14 | Max. Printing Sectors on central roller | 4 PCS |
| 15 | Number of Cup Mandrels | 8 PCS |
| 16 | Drive Control Type | Human-computer Interface |
| 17 | Pressure Required for Pneumatic System (Complete Machine) | 6-8 Bar |
| 18 | Total Electrical Power | 18 kw |
| 19 | UV Drying Power | 6 kw x1 |
| 20 | Max. Air Consumption | 48 m³/h |
| 21 | Suitable Printing Material | PP, PS, PET, HDPE etc |
| 22 | Corona Power | 1 kw |
| 23 | Machine Dimension (for reference) | 5500x2500x3000 mm |
| 24 | Weight (for reference) | 3500 kgs |
Sample Picture:
Our services:
- warranty:1year warranty after installation, if the spare parts is broken in the warranty period, we will send a free replacement parts as free.
- Installation and training: we can send 1-2 engineers to install and set up the machine, but all the charges should be paid by buyer.
- Quotation: valid for 60days.
Packaging shipping:
Company information:
Polyprint Machinery is one of the first company specialized in manufacturing extruder, thermoforming machine, plastic cup making machine, lid forming machine, cup lip curling machine, cup packing machine and cup printing machine since 2006.Contact information:
Mr Andy
| Prod Model: |
PP-4C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Industry Voltage (3 Phase, 4 Wires): |
380V, 50Hz |
| Printing Color: |
4colors |
| Printing Perimeter: |
400mm |
| Max. Printing Length: |
100mm |
| Min. Printing Length: |
20mm |
| Diameter Of Printing Plate Roller: |
150mm |
| Machine Dimension (for Reference): |
5500X2500X3000 mm |
