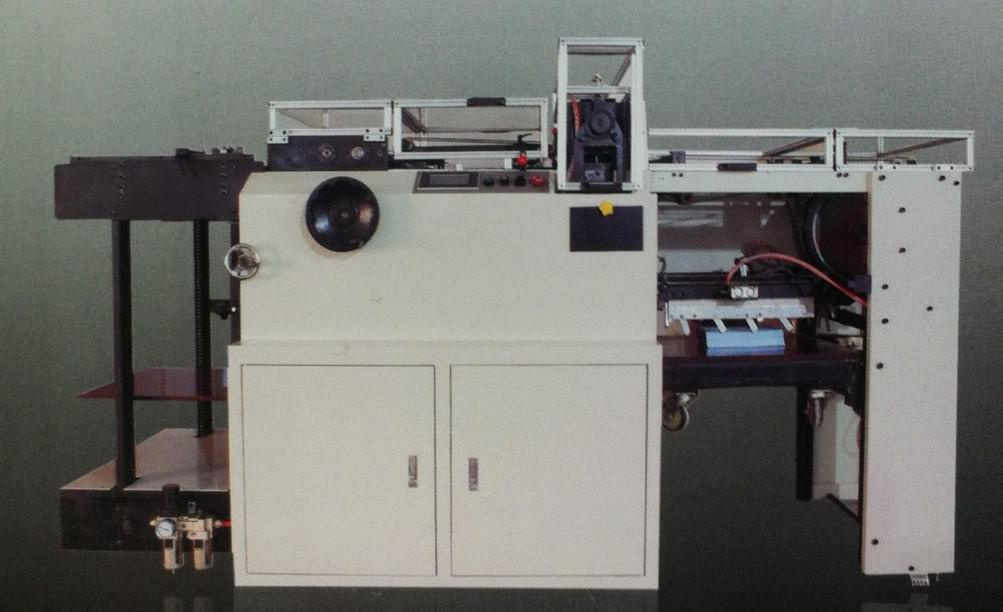

THE MACHINE IS SUITABLE FOR PUNCHING HOLES IN ALL KINDS OF NOTEBOOKS, BOOK AND PERIODICALS, CELANDARS PAPER, TUTORIAL PAPER IN BATCH, ESPECIALLY FOR WIDTH PAPER AND PRESSPAPER. THIS MACHINE COMBINES WITH ADVANTAGES OF EFFICIENCE, HIGH SAFETY, EASY OPERATION AND WIDE USE OF PAPER TO INCREASE YOUR PRODUCTIO EFFICIENT RATE, SO EASY FOR PUNCHING IF YOU OWN IT
Product Feature
IT'S WIDE APPLIED FOR PUNCHING FIFFERENT PAPER SIZE, MAX PUNCHING WIDTH 600MM AND 3MM THICKNESS OF PRESSPAPER.
EASY OPERATION AND HIGH SAFETY.
TO MAKE SPECIAL PUNCHING HOLE MODULE IS AVAILABLE FOR THE CUSTOMPER'S REQUEST WITHIN THE SIZE OF PAPER.
HIGH QUALITY FOR PUNCHING WITHOUT DECKLE EDGE AND ACCURATE PUNCHING POSITION.
Product Specification/Models
MAX. SHEET: 550X600MM(PUNCH SIDE)
MIN. SHEET: 120X100MM(PUNCH SIDE)
MAX PUNCHING THICKNESS: 3MM
WEIGHT OF PAPER: 60-350GSM
PUNCHING SPEED: UP TO 7200 PUNCH TIMES/HOUR
THE MAX HEIGHT OF PAPER: 500MM
POWER: 3PH 380V 50HZ
DIMENSION: 2200X1300X1200MM
NET WEIGHT: 1600KG
NINGBO CREATIVE AUTOMATIC CO. Ltd is one of the earliest enterprises which engage in developing and manufacturing the loose-leaf binding facilities and coil processing equipments in China.
