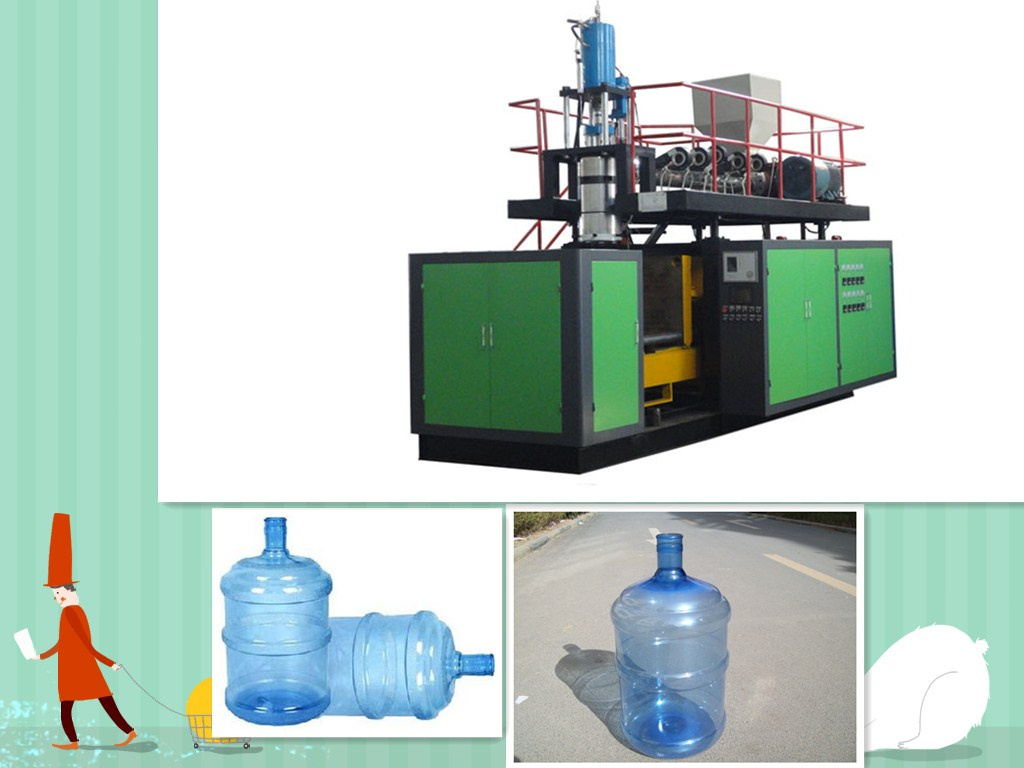

Automatic PC 5 Gallon Bottle Blowing Mold Machine (HT-80)

Automatic PC 5 Gallon Bottle Blowing Mold Machine (HT-80)
Price: US $ 76000Set
Trade Terms: FOB
Min Order: 1Set
Pay Type: L/C,T/T,Western Union
Taizhou Huangyan Huatai Machine & Mould Co.,Ltd. which is in the famous native place of orange, kingdom of mould, cradleland of plastic - Huangyan, has more than 20-year history in making plastic machines. It specializes in manufacturing plastic blow moulding machines (blow bottle machines, hollow blow mold machines), honeycomb heating-boxes, ultrared heating-boxes, moulds and other plastic products.
Model HT-80PC
Suitable Materials   PC \ PP \ PE \ PVC \ PS \ ABS \ EVA \ PETG \ AS ^
Real Output When PC 5gallon water barrel 720g 1900 pcs/day
PC 5 gallon barrel weight Suitable use as standard 600-850g(adjusted by controller)
Product Volume 1cavity 5L ~ 50L
Extrusion Unit Screw Diameter 80mm
Screw L/D Ratio 22:1 L/D
Screw Speed 40 r/min
Plasticizing Capacity 90kg/h
Number of Heating Zone on Screw 4
Die Head Unit Amount of die head 1
Volume of Storage Jar 4 L
PC storage capacity 2Kg
Die-pin Diameter 80mm
Number of Heating Zone 4
Clamping Unit Work Station Amount 1
Mold Board Amount 4
Mold Board Size 700*700*66mm(L*W*T)
Clamping Force 180KN
Mould Unit Cavity amount 1 cavity
Max Mold Size 750*500*500mm(L*W*T)
Lifter Unit Turbine reducer lifter 4 pieces
Power Unit Electrical Source 220 / 380V,3phase 50 / 60Hz
Screw Motor Power 30kw
Clamping hydraulic motor 7.5kw
Servo hydraulic motor 4kw
Screw heating power 10kw
Die head heating power 5kw
Hopper dryer power 4.5kw
Prod Model: HT
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Automatic PC 5 Gallon Bottle Blowing Mol: PC 5 Gallon Bottle Mold
Automation: Automatic
Making Method Of Parison: Extrusion-Blow Molding
Computerized: Computerized
Certification: ISO9001:2008
Type: Extrusion Blow Molding Machine
Raw Material: PC
Taizhou Huangyan Huatai Machine & Mould Co.,Ltd. which is in the famous native place of orange, kingdom of mould, cradleland of plastic - Huangyan, has more than 20-year history in making plastic machines. It specializes in manufacturing plastic blow moulding machines (blow bottle machines, hollow blow mold machines), honeycomb heating-boxes, ultrared heating-boxes, moulds and other plastic products. It has abundance experiences and strong technology.
HuaTai is dedicated in researching and developing blow moulding machines endlessly,and has all kinds and comprehensive series of blow moulding machines. Owing to the struggle and effort of its technicians, there will appear several new types of advanced blow moulding machines to meet the demands of international market every year.
And now HuaTai has 2 main products (12-series and more than 80-model blow moulding machines). Semi-automatic and full-automatic, one-step method and two-step method, pneumatic and hydraulic are all available. These machines can produce from 10ML to 200L products, such as the large storage barrels, tanks, foldable containers, car hollow parts, office equipment accessories, sports equipment accessories, children's toys, amusement facility accessories, medical packaging containers, 5 gallon PC barrel, hollow bags, all kinds of plastic bottles and plastic barrels. What's more, most of the machines have obtained patents.
HuaTai's have been exported to many countries and areas, such as North America, West Europe, South Africa, Middle East, Southeast Asia, Russia and so on. With the guiding principle of cooperative, confiding, equal and mutual benefit spirit, HuaTai sincerely welcomes new and old customers visiting the factory.
