Automatic Pet Blow Molding Machine

Automatic Pet Blow Molding Machine
Price: US $ 50000/Set
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T

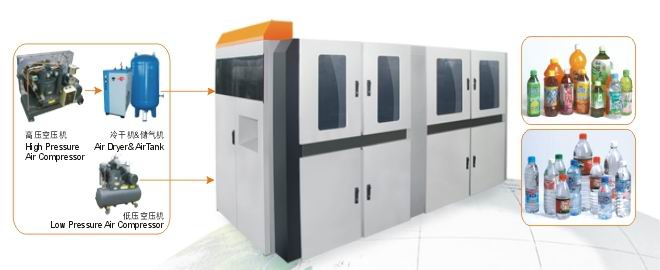

 DH-B series full-automatic pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has one to six cavities and the maximum capacity of the products is 0.6L and 1.5L,5L. It can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.
1).High Automatization
2).High Intelligence:The machine can be controlled through touch screen and running status is shown on it.
3).High Quanlity:Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4).High Speed:1400BPH(1-cavity) 2000BPH(2-cavity).
5).No Contamination:Closed production zone, good self-lubrication system avoid contamination.
6).Low Cost:Low consumption of electricity, air and water.
7).High Transparency:Easy maintenance, absolute safely, visual inspection, low noise.
Settings:
a).PLC colour display: OMRON(JAPAN)
b).Pneumatic parts:Parker(CHINA)
c).Controller of preform transfer:Servo motor National(JAPAN)
d).Other electric parts are all world-famous brand

Advanced processing equipment:
Machine center, digital lathe, EDM, such as many imported American and Japanese machine tools assure processing precision and good interchangeable function.

TYPEITEMDH-B1500-2
CONTAINERNumber of cavity2 cavities
Output2400-2600 pcs/hr
Max.container volume1.5L
Max.neck diameter80mm
Max.container diameter105mm
Max.container height300-330mm
ELECTRICAL SYSTEMNumber of lamp27pcs
Max.heating power35kw
Installation power42kw
Actual power consumption29kw
AIR SYSTEMOperatating pressure7-9kg/c
Low pressure consuming1200Ltr/min
Blowing pressure25-35kg/c
High pressure consuming2000-2500 Ltr/min
CHILLER WATEROperating pressure5-6 kg/c
Temperatuer10ºC
Consuming5600kcal/hr
Flow rater30Ltr/min
MACHINEMachine dimension2.4x1.5x1.7(m)
Machine weight2.0ton

Prod Model: DH-B1500-2
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Raw Material: PET
Making Method Of Parison: Stretch Blow
Automation: Automatic
Computerized: Computerized
Certification: ISO9001:2008
Type: Stretch Blow Molding Machine
Established in 1989, Zhejiang East Zhouqiang Plastic & Mould Industry Co., Ltd. is located in Huangyan--"Blow Molding Machine Town" in China, with total investment of 11 million US dollars and covers 50 thousand square meters. It is an enterprise professionally manufactures PE Blow Molding Machines, PE Extrusion Blow Moulding Machines, PET Stretch Blowing Machine and Extrusion Blowing Moulds.

Blow moulding machinery: Adopting foreign advanced technology and management system, and taking advantage of our solid technical power, we have been developing different kinds of plastic forming process and machinery. In accordance with plastic features, we developed series of blow molding machinery to meet customers's demand, such as fully-automatic PE blow molding machines, two-stage fully-auto pet stretch blow moulding machines, PE blow moulding machines, injection and stretch blow molding machines.

Focused on customers, cored on quality, the corporation and customers are viewed as a united whole. Customers" requirements are all we should do.
