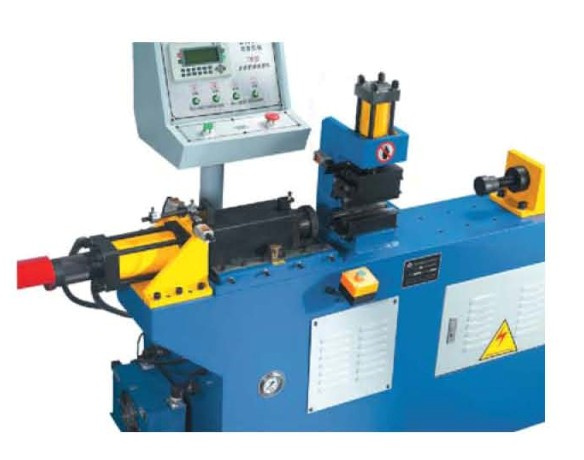

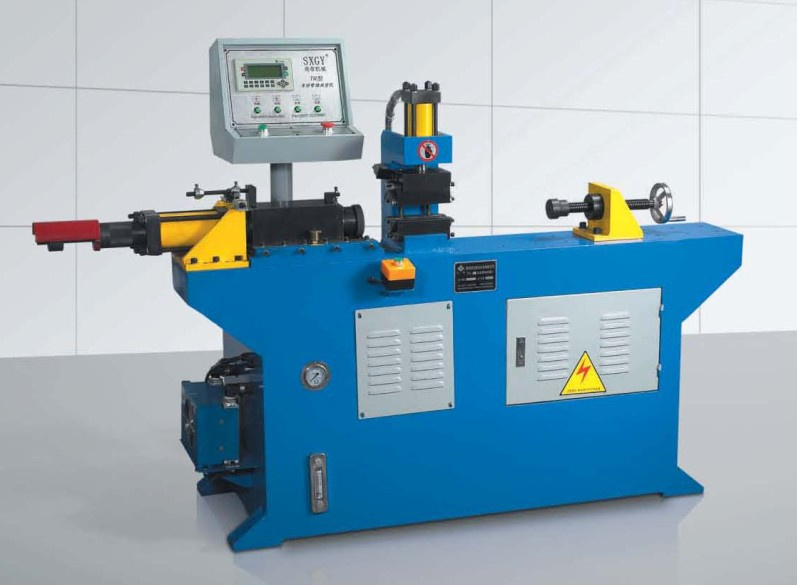

Automatic Pipe End Forming Machine
| Price: |
US $ 5000-8000set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
T/T |

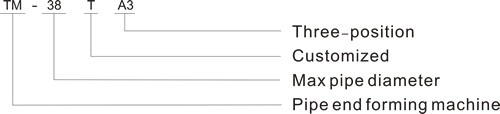

Common characteristics1. Suitable for various metal pipe processing;2. This machine has both manual and automatic functions and is equipped with emergency stop device;3. Processing shape: shrinkable pipe, pipe expanding flare opening, heading,tendon, suitable for air conditioner pipe fittings,oil pipe fittings and bathroom pipes;4. It can be supplied with new type cooler, automatic oiling machine and UV protector according to customers' requests;5. A supplemental automatic feeding system is available to reduce operator's labor force, then the operator only needs to collect or discharge material, improves the safety.| Spec./Model | TM-15A3 | TM-38 | TM-60 | TM-80 |
| Max applicable pipe fitting | Expand and shrinkage415×1.0mm
Tendon 10×1.0mm | Expand and shrinkage 38×2.0mm
Tendon 25×1.0mm | Expand and shrinkage 60×2.0mm
Tendon 40×1.5mm | Expand and shrinkage 80×2.0mm
Tendon60×2.0mm |
| Working stroke | 50mm | 100mm | 120mm | 160mm |
| Output oil pressure | 6 Toms | 8 Toms | 14 Toms | 32 Toms |
| Working speed | 100mm in1~2sec | 100mm in3~4sec | 100mm in3~4sec | 80mm in3~4sec |
| Machine size | 1240×1160×1410mm | 2000×550×1300mm | 2800×600×1400mm | 2800×630×1400mm |
| Machine weight | 850kg | 1100kg | 1250kg | 1700kg |
| Motor power | 3kw | 4kw | 5.5kw | 7.5kw |
| Prod Model: |
TM-38 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
2000*550*1300mm |
| Forging Forming Method: |
Mold Forging |
Zhejiang shunxin machinery Co., Ltd was established in 1989 which is located in the foot of the beautiful YanDang mountain of Yueqing city of Zhejiang province. It is near the express way, it has convenient transportation. The comanpy is specialized in all kinds of machines, such as pipe bending machine, pipe cutting machine, pipe end forming machine, pipe shrinking machine, chamfering machine, automatic riveter, hydrauic lathe, stripping machine. Tooth sharpening machine, saw blade sharpening machine.
Our company supply special equipment for Shanghai Volkswagen, Dongfeng, Chang'an, Changhe, Liuzhou Wuling domestic famous companies. And it has a Long history, superb technology, a full range of design, as well as we are cooperated with company domestic and overseas closely, all these are make our products received a consistent recognition and praise by our users.
The products are widely used in automobiles, motorcycles, bicycles, baby carriage, ships, steel furniture, sporting goods, leisure goods, air-conditioning piping, petrochemical, sanitary pipe industry. It is the ideal equipment for various pipe profile cutting, shaping, riveting process.
We would like to cooperate with the buyers all over the world in the future.
Zhejiang shunxin machinery Co., Ltd was established in 1989 which is located in the foot of the beautiful YanDang mountain of Yueqing city of Zhejiang province. It is near the express way, it has convenient transportation. The comanpy is specialized in all kinds of machines, such as pipe bending machine, pipe cutting machine, pipe end forming machine, pipe shrinking machine, chamfering machine, automatic riveter, hydrauic lathe, stripping machine. Tooth sharpening machine, saw blade sharpening machine.
Our company supply special equipment for Shanghai Volkswagen, Dongfeng, Chang'an, Changhe, Liuzhou Wuling domestic famous companies. And it has a Long history, superb technology, a full range of design, as well as we are cooperated with company domestic and overseas closely, all these are make our products received a consistent recognition and praise by our users.
The products are widely used in automobiles, motorcycles, bicycles, baby carriage, ships, steel furniture, sporting goods, leisure goods, air-conditioning piping, petrochemical, sanitary pipe industry. It is the ideal equipment for various pipe profile cutting, shaping, riveting process.
We would like to cooperate with the buyers all over the world in the future.
