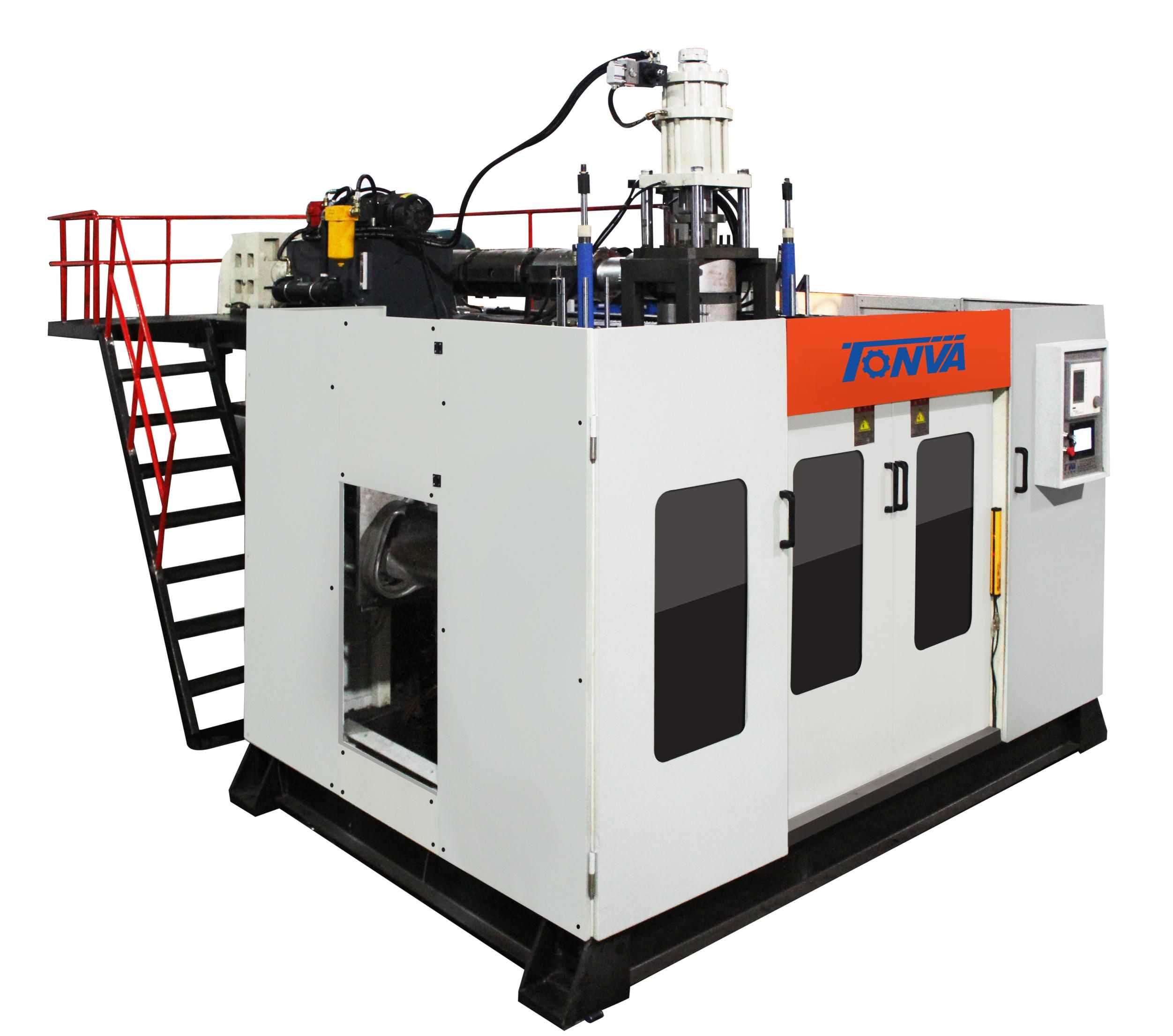

STANDARD SERIES TVHD-10L
Specifications:
22-year manufacturer of blow molding machine
Famous brand component parts
CE; ISO;SGS
1-year warranty
Customized
Basic specification:
Ø Double Station / One/two/three head optional
Ø 90mm screw / 30kw motor
Ø HDPE / LDPE /PP /PS etc material
Ø Automatic Trimming: Neck/Bottom/Handle/Sides
Ø Parison controller optional
Working condition:
Ø Power supply: 380VAC/50Hz
(depending on client's country)
Ø Water Cooling: 20ºC
Ø Air source: 0.6Mpa,0.6m³/min
Technical characteristic:
Ø TVHD series double station machine is adopted pure hydraulic system.With compact structure,running stable and easy to control.
Ø Products size range:suitable for 10L to 30L all kinds of hollow products.
Ø Application range:can be used as packing for food,medical,oil,chemical,cosmetic,autoparts,tools and toys etc.
Ø Suitable for raw materials of PE,PP,PA,PC,PS,ABS,TPU,EVA,PETG etc.
Ø Pure hydraulic system: Optimized hydraulic oil loop design gains a stable,fast,power saving property.
Ø All parts adopts international famous brand ,easy for installation and matainence.
Technical Parameters:
Category | Item | Unit | TVHD-10L |
Basic Specification | Raw material | / | PE/PP/PA/PVC etc. |
Dimension | m | 4.2×3.0×2.2 |
Total Weight | kg | 9800 |
Extrusion system | Diameter of screw | mm | 90 |
Screw L/D ratio | L/D | 25:1 |
Plasticizing capacity | kg/h | 120 |
Number of heating zones | Pcs | 7 |
Extruder heating power | kW | 23 |
Extruder drive power | kW | 30 |
Die head | Number of heating zone | pcs | 3 |
Heating power | kW | 8 |
Clamping system | Clamping range | mm | 250-300 |
Sliding range | mm | 450-500 |
Clamping force | kN | 100 |
Power consumption | Air pressure | Mpa | 0.6 |
Air consumption | m3/min | 0.6 |
Cooling water pressure | Mpa | 0.3 |
Cooling water consumption | m3/h | 1.5 |
Oil pump power | kW | 11 |
Oil pump capacity | ml/r | 59 |
Total Power | kW | 72 |
Average power Consumption | kW | 45 |
Main Features:
(1)Screw: Specially designed based on material's trait,high quality nitriding steel 38CrMoAlA,with nitriding surface HV≥800,brittleness≤2.
(2) Barrel: High quality nitriding steel 38CrMoAlA,with nitriding surface HV≥900,brittleness≤2.
(3) Drive mode: inverter and hard gear surface decelerator.
(4) Temperature controlling: PID&PWM temperature control model.
(5) Mode of cooling: adopt water cooler for the processing zone, fan cooler for the rest zones.
(6) Die head system: The melting plastic out of the extrusion system is divided through the core parts of die head, distributed by the die head channel to become several peach shaped sections.
(7) Clamping system: Joint-type clamping ,Double tie-bars, clamping by hydraulic cylinders.
(8) PLC and HMI: Adopt PLC to control the action program of the whole machine; adopt HMI for communication, parameter setting, modification and picture display;
(9) Extrusion motor: with the inverter controlling and alloy hard gear surface decelerator driving, saving power, lower noise, balanced and stable screw rotation.
