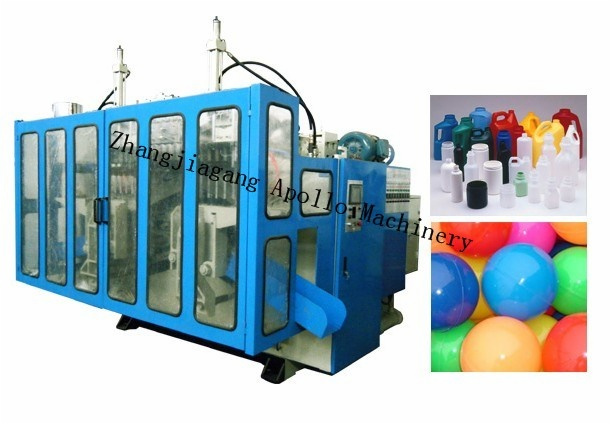

Automatic Plastic Bottle Blow Molding Machine

Automatic Plastic Bottle Blow Molding Machine
Price: Negotiable
Trade Terms: FOB
Min Order: 1/Set
Pay Type: L/C,T/T
Extrusion bottle blow moulding machine

Model No.: ABLB75(single station single die head)
ABLB75 extrusion bottle blow molding machine was specially designed for making plastic water bottles, lubricant oil bottles, detergent bottles, plastic toys and other plastic containers not over 8L.
electronic parts


Name

Trader

Micro computer control system

Japanese MITSUBISHI

Temperature Controller

TAIWAN YANHUA  PID

Auxiliary Relay

OMRON

contactor

Schneider from France

Electric motor

Three phase 220V or 380V

Power Source

TAIWAN MEANWELL

Transducer

TAIDA FROM CHINA
hydraulic parts


Name

Trader

Oil pump

TAIWAN HIGH-TECH

Valve

JAPAN YUKEN

Oil pump and connection

JAPAN YUKEN

Sealed part

HALLITE
air control system


Name

Trader

Cylinder

AIRTAC

Air Valve

FESTO





Technical Parameters: ( ABLB75 )



Max. Product volume

8 liters

Output capacity

120pcs/h

Screw diameter

75mm

Screw L/D ratio

24 L/D

Screw drive power

22 KW

Screw heating capacity

6 KW

No.of heating zone

4 zones

Output of HDPE

100KG/H

Oil pump drive power

11 KW

Clamping force

78KN

Max.size of mold

188-600mm

Mold stroke

400 X 450mm

Max.die diameter

180mm

Blowing pressure

0.6 mpa

Air Volume

0.7 M³/MIN

Cooling water pressure

0.3mpa

Water consumption

60 L/MIN

Size of Machine

3.6x1.8x2.8m

Weight of machine

6.3 ton
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Automation: Automatic
We Apollo Machinery, located in the high-speed developing port city-Zhangjiagang, which is nearby to the international big city-Shanghai, specializes in making various kinds of blowing molding machine for the solution for plastic industry. We have specialized in this field for over 10 years. Our company with over 100 staff was established in 1997, occupy 8000 square meters.

Through over 10 years of hard struggle, our company has developed from a small company to Medium and Large size company. We always place our customer's profit on the first place through high quality, responsible price and considerate after-sale sevices.

We can provide blow molding machines for various kinds of plastic products, including cosmetic packaging, medical packing, washing packing, foodstuff packing, lubricate packing, plastic toys, hollow tube, tool boxes, chemical barrel and more. Our machinery are suitable for plastic containers from 5ML to 200L. Our machinery are also suitable for various kinds of plastic processing such as: PP, PE, PVC, PA, ABS, PPE, POM, PPO, HDPE, PVDC, EVOH, PETG and so on. So we are confident that we can meet your various kinds of demands for plastic blow molding machines.

Our products have a great reputation in the blow molding machinery and our products are always warmly welcomed by our new and old customers. Not only our sales in our domestic land, our products are also exported to overseas, such as America area: Canada, Mexico, Argentina, Colombia, Europe area: UK, France, Germany. Russia, Middle East area: Saudi Arabia, Oman, Iran, Turkey and the other countries of Asia: Japan, Philippines, Myanmar, India and more.
