Packaging & Delivery
| Packaging Details: | Plastic film with wooden case. |
|---|
| Delivery Detail: | within 45days after received 30% downpayment or L/C. |
|---|
Specifications
Suitable Sheet: PS/ PET/ PVC/ PP
Hi-speed
high output
I. Usage:

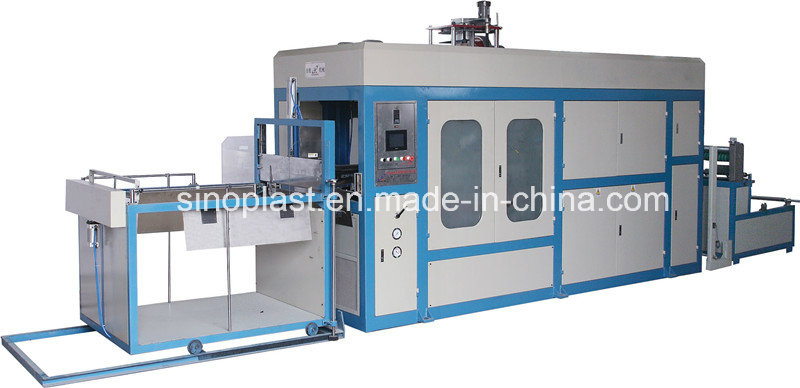

SPV-700/1200ZK Series Automatic Hi Speed Vacuum Forming Machine is suitable for processing those sheets including PVC, HIPS, PP, PET, etc. Under various specifications, it can be used for the
forming of disposable fast food containers, instant noodle bowls, western dinner plates,
food coverings (such as sugar boxes, cake boxes and etc), articles of daily use, hardware coverings,
children's toys and trays for raising seedlings of rice, vegetables and other plantations.
II. Main Technical Parameter:
Suitable Material | PP/PS/PET/PVC | Thickness | 0.1-1.2 mm |
Forming Length | 720-1220mm | Heating Oven Capacity | 26.4KW or 55KW |
Forming Width | 420-720mm | Motor Power | 2.6KW |
Forming Height | 200mm | Running Speed | 180-600cycles/hr |
Mode of cutting arrangement | off-mould | Air Consumption | 5000-12000L/hr |
Overall Dimension (mm) | L6680×W2230×H2680 | Machine Weight | About 3.2Ton |
Power Supply: 380v/50HZ Tri-phase, four-wire(special power could be provided) |

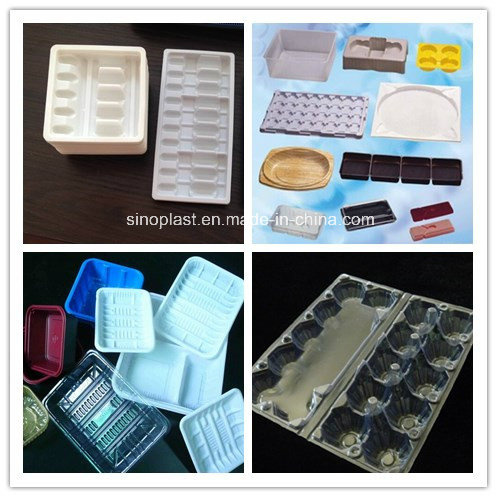

III. Some Samples Made by Vacuum Forming Machine:

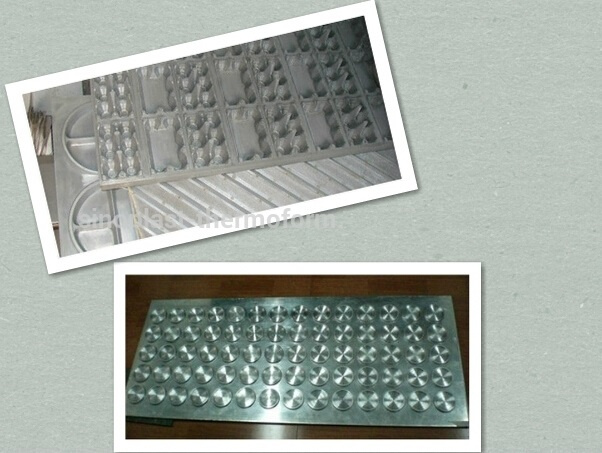

IV. Some Aluminum Moulds For Vacuum Forming Machine:
Contact person: Vera
Address: Doubei Industry, Pingyang County, Wenzhou City,
Zhejiang Province, China
Postal Code: 325400
Tel:0086-0577-63790922
Fax:0086-0577-63790122
Mob:0086-18868181076
Website: //www.cn-sinoplast.com/
Ruian Sinoplast Machinery Co., Ltd is a professional manufacturer of Plastic Sheet Extrusion Lines, Thermoforming Machines&Auxiliary Equipments from China.
Our company has a professional technician team with rich experience on the R&D of plastic sheet extrusion lines, thermoforming equipments and forming molds for many years. We could provide our clients complete service from machines and molds design, manufacture, installation, debugging and workers training.
We have passed the ISO9001: 2000 Quality Management System and CE certificate. With the market as our guide and continuous creation and renovation, we have won the honor and good image in the packaging industry and relative industry with high quality and good service. Our products are well sold throughout the country and exported to many different countries, such as, Southeast Asia, Russia, Europe, Middle East, Africa, America and etc.
Our company welcomes all the clients to visit our factory for the future communication and cooperation.
