Zhejiang Shuangli Plastic Machinery Co., Ltd.
Main products: Automatic plastic blow molding machine, blowing machine, bottle blowing machine and other related products.
Currently producing sales rotary automatic blow molding machine and reciprocating automatic blow molding
Machine is mainly used for the production of 5ml-10L polyethylene, polypropylene as the original the material of all kinds of plastic hollow containers, is currently one of the few professional manufacturer of blow molding machinery vendors.

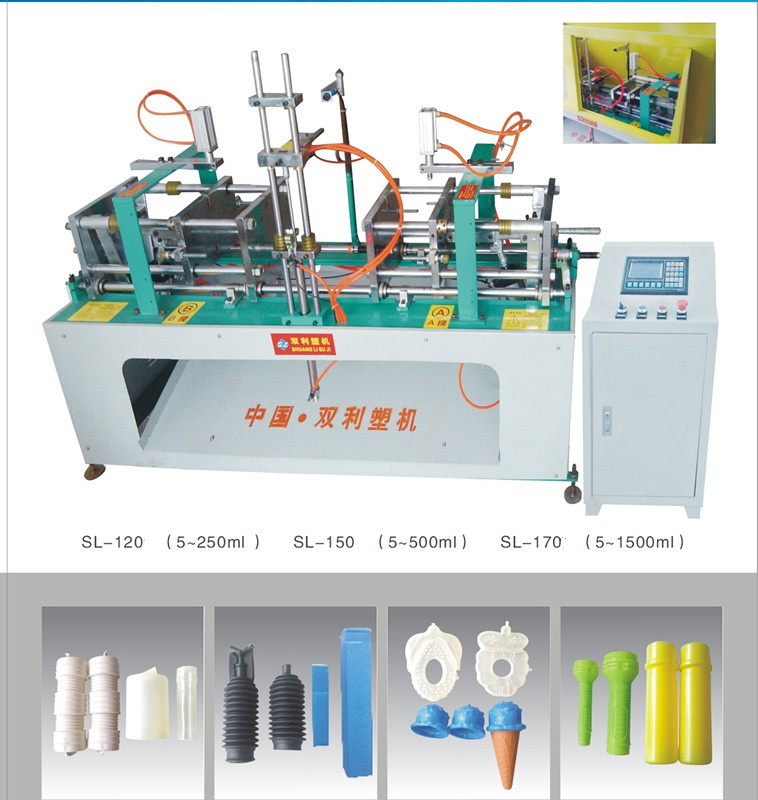

SL-120 SL-150 SL-170 Automatic Reciprocating Hollow Blowing Molding Machine uses the latest structural model design which is simple, practical, compact, innovative, high efficiency, low energy consumption, affordable etc.
With one extruder can be an automatic blow molding machine.
Slipper of this machine use linear bearing
All small business upgrading the ideal product. This machine access very convenient 220V power supply, PLC + man-machine interface (touch screen) computer-controlled, high stability, small resistance, high precision and easy operation.
Specification |
Units |
SL-120 Series |
SL-150 Series |
SL-170 Series |
Applied Materials |
|
PE PP PVC EVA |
PE PP PVC EVA |
PE PP PVC EVA |
Max Container Capacity |
L |
0.25 |
1 |
1.5 |
Number of Die |
Set |
2 |
2 |
2 |
Output (drycycle) |
pc/hr |
2200 |
1800 |
1200 |
Machine Dimension LxWxH |
M |
1.2x0.5x1 |
1.5x0.5x1.2 |
1.7x0.6x1.2 |
Total Weight |
ton |
0.2 |
0.3 |
0.4 |
Clamping Force |
KN |
0.8 |
1 |
1.5 |
Platen Opening Stroke |
mm |
50-90 |
60-140 |
60-170 |
Platen Size |
mm |
200x240 |
240x300 |
300x320 |
Max Mould Size WxH |
mm |
100x200 |
180x250 |
200x350 |
Mould Thickness |
mm |
50-90 |
60-140 |
60-170 |
Max Diameter |
mm |
50 |
90 |
130 |
Air Pressure |
Mpa |
0.3 |
0.4 |
0.5 |
Air Consumption |
m ³/min |
0.2 |
0.3 |
0.4 |
Max Opening Modulus |
mm |
100 |
140 |
170 |
Max Distance of the extrusion machine die ground |
|
900 |
1000 |
1100 |
Our company supply different kinds of products, with high quality and favaroble price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
