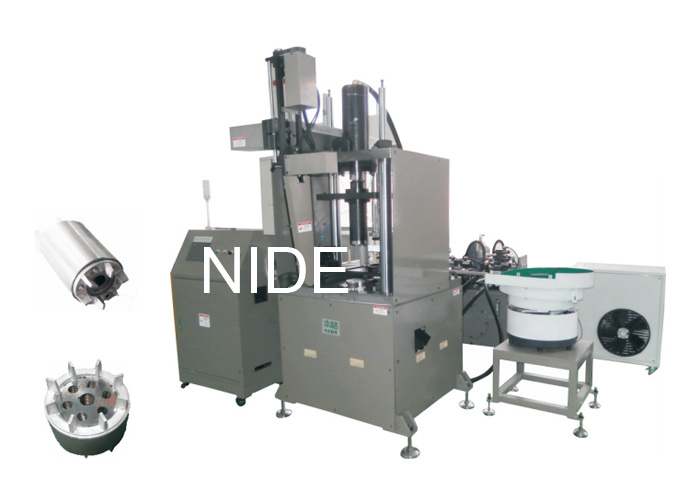

Machine features:
Automatic get aluminium melt liquid, automatic loading and unloading the rotor.
Rotor loading: automatic pneumatic circularly pick up.
Get aluminium melting liquid: servo motor control the mechanical arm, control the liquid volume through human-machine interface.
Automatic cut the waste material, automatic recycle the cut wasted material and convey it to the furnace by the conveyor.
Automatic feed mold releasing agent, the feeding time and times can be set.
There is water cooling channel, helpful for reducing the mold temperature effectively.
Setting on touch screen: forward and backward speed, stroke, swing angle of the mechanical arm, loading speed,etc.
Machine will alarm and stop working if out of material.
Failure will be automatic displayed and machine will alarm.
One person can take care of more than one machine.
Max. mold closing stroke | 150mm |
Pressing injection stroke | 50mm |
Hydraulic system working pressure | 10~25MPa |
Hydraulic motor power | 7.5kw |
Oil tank capacity | 350L |
Power | 380V/50Hz |
Rotor stack length | 16-100mm |
Rotor OD. | 40-100mm |
Pitch time | ≤18~24s |
Change-over time | 20mins |
Upper Presser operation pressure | 40T |
Bottom presser operation pressure | 15T |
Machine weight | 3200kg |
