Automatic Sheet Metal Blade Bending Machine Factory Direct Sale Price

Automatic Sheet Metal Blade Bending Machine Factory Direct Sale Price
Price: US $ 25000/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T

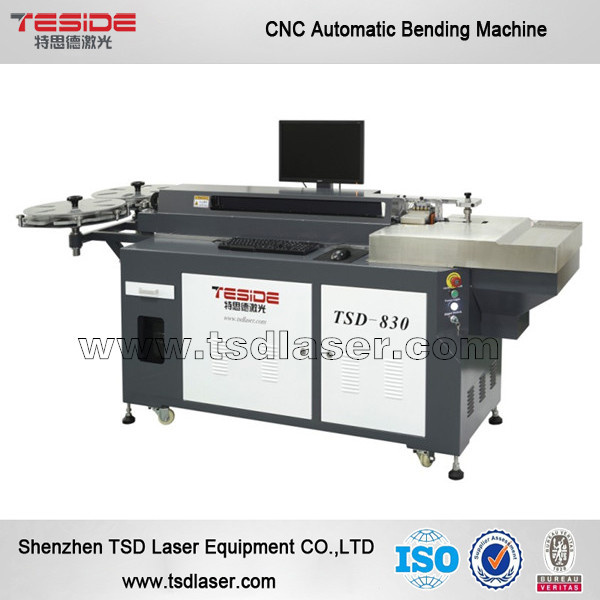

TSD-830 Auto blade bending machine

Automatic sheet metal blade bending machine factory direct sale price

Functions and usage
a) Possess of functions such as bending, bridge, front lipping, back lipping, cutting, flat cutting six functions.
b) Panasonic Servo motor system + Ball-screw guide- rail in design, eradicate skidding and dislocated.
c) Unique imported mould tool design, easy to bend pattern, high precision of size, durable
d) In order to guarantee precision and long-life span, transmission and control parts are imported
e) Self-developed latest bending control system, easy to operate and upgrade available.
f) Fully English & Chinese interface, easy to learn how to operate, make bending work easy.
g) It can be installed soon after bending patterns form the machine, no need extra more hard work.
h) It's widely used in box mould, doll mould bending.
i) Exactly to realize fully automatic bending, help to save plate making time.

Technical Parameter
Bending Blade thickness(mm)0.45mm/0.71mm/1.05mm/1.07mm
Bending Blade height(mm)8mm-23.8mm-30mm
Bridge widthOver 5.5mm any sizes available.
Bridge height15mm, 18mm
Max. bending angle100°
Min. ARC radius of 90 degree0.4MM
Front Min. bending size1.5MM
Back Min. cutting size1.0MM
Feeding precision±0.03mm
Bending flatness±0.2mm
FunctionsBending, cutting, Auto lipping, bridging
Cutting methodsSwing cutting or Auto flat cutting
Optimal pattern format Auto CAD, Core Draw files are supported
Air supply0.6mpa
Power supply380V 50/60Hz (Standard) 3 Phrase
Machine total power1.3KW
Gross weight.450KGS
Overall dimension2700×1050×1350mm(L×W×H)
H.S. Code8462219000

After-sales service
1. English-speaking engineer is available for end-user's machine installation and training under buy's cost around 5-7days.
2. English software, installation and related training instructions and videos are available for end-users.
3. In case of any problems or questions about laser technology you can always refer to TSD Laser.
4. With our customer-orientated service support, maintenance and repair costs will be kept low.
5. One year guarantee for machine is promised.


Packaging and delivery

Packaging Details: steel rule blade bending machine  Standard Sea-Worthy Wooden Case Packing:  Only ONE Wooden Case: L1.95 x W0.75 x H1.37Meters 500KGS

Delivery  Detail:20-25days



Company Information

Shenzhen TSD Laser Equipment Co., Ltd locates in Shenzhen China and specialize in die board laser cutting machine, automatic blade bending machine,Fiber laser metal cutting machien development, manufacture, marketing and service which has been widely used to manufactured for packing, printing and die making ,sheet metal cutting processing  industries.

Address: No.12 Building, hengmingzhu Technology&Industrial parlk, Tongfuyu Industrial Area, Shajing Street, Bao An Districr,Shenzhen,518104,Guangdong,P.R.China.
Tel:+86 775 2749 5815         Fax:+86 775 2960 9023        Mob:+0086 185 6572 9193



Trade Show

Exhibition: The 5th All in Print China
Add: Shanghai New International Expo Center
Date: 14-17th Nov. 2014
Booth No.: W2-B-409
---------------------------------------------------------------------------
Exhibition: International Packaging & Printing Industry Vietnam
Add: SECC--Saigon Exhibition & Convention Center, HCM
Show Date: October . 22-25, 2014
Booth No.: 628
--------------------------------------------------------------------------
Exhibition: The 12nd PRINTPACK INDIA
Add: India Expo Center, Greater Noida Delhi NCR
Show Date: February 11 to 15, 2015
Booth No.: Hall 10 - E16
--------------------------------------------------------------------------
Exhibition: The 22nd South China International Exhibition on Printing Industry
Add:  Area A.China Import &Export Fair Complex Guangzhou .PR China
Show Date: March 9 to 11, 2015
Booth No.: 4912
--------------------------------------------------------------------------
Exhibition: The 3rd International Printing Technology Exhibition of China (Guang Dong)
Add:  Guangdong Modern International Exhibition Center
Show Date: April 7 to 12, 2015
Booth No.: 71029
--------------------------------------------------------------------------
Exhibition:SinoCorrugated 2015
Add:Shanghai New International Expo Center
Show Date:April 14 to 17, 2015
Booth No.:Y59
--------------------------------------------------------------------------

Related Products: TSD-LC300-1216 Die Board CO2 Laser Cutting Machine

 Machine / Assistant Equipments Features:
a)   Motor System: Three Panasonic full-digital AC Servo Motor to guarantee high precision cutting
b)   Drive System: HIWIN Linear guide rail + ball screw to guarantee high precision cutting and table  moving
c)    External light path system: USA optical lens to guarantee strong laser focus
d)   Laser system: Best China RECI Laser tubes to guarantee stable laser working
e)   Cooling system: Best China CW-6000 Industrial Chiller water cooling
f )    Protective Gas: Dry oil-free air, Taiwan Tai Sheng air dryer
g)    Exhausting system: two sets exhaust fans to carry out smoking
h)    Laser control system: Fully English language TSD laser software, PC control
i )    Laser power Devices: Best China brand Hongyuan
j )    Fixed laser path, laser head fixed, board moving
k)    Stable machine design, high strength of machine bed, long-year working
l )    Low consumption of voltage about 5-7 kilowatt per hour

Technical Specifications:

Machine model No.

TSD-LC300-1216

Processing scale

1250mm x 1600mm

Machine weight

1500kgs

Laser type

CO2 Sealed laser tube

Laser power

300W double heads

Driving motor

Panasonic Servo Motor

Cutting depth

18mm-22mm plywood

Cutting precision

±0.05MM

USB port connection

Yes

Operating temperature

0-45°C

Mould knife thickness

0.45mm, 0.71mm,1.07mmetc. controllable

Cutting speed

25-30meters/hour 18-20mm plywood

Protective gas

Dry and oil-free air

Power supply

single-phase electricity 220V±5%  50Hz 10A

Numerical control panel

LCD screen, light-touched key-press

Software supported

CorelDraw, AutoCAD, Photo Shop,

Graphic format support

PLT,DXF,BMP,JPG,GIF,PGN,TIF

EMS memory

attached 32MB memory, can work under off-line condition

Laser tube guarantee

Guarantee 6 months,6000 hours life span for laser tube

Assistant equipments

Air Dryer, industrial chiller, Exhaust Fan, Computer System

Recommend spare parts

Laser Tube and Lens

H.S Code

8456100090


 Contact information

Ms.YoYo Huang
Business Manager

Mob:+86 185 6572 9193



Prod Model: TSD-830
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Name: Auto Blade Bending Machine
Model: Tsd-830
Bending Blade Thickness(Mm): Bending Blade Thickness(Mm)
Bending Blade Height(Mm): 8mm-23.8mm-30mm
Bridge Width: Over 5.5mm Any Sizes Available.
Bridge Height: 15mm, 18mm
Functions: Bending, Cutting, Auto Lipping, Bridging
Cutting Methods: Swing Cutting or Auto Flat Cutting
Air Supply: 0.6MPa
Overall Dimension: 2700×1050×1350mm(L×w×h)
Type For Fold-bending Machine: CNC Fold-bend Machine
Application: Die Making
Type For Pipe And Tube Bending Machine: Blade Bending
Shenzhen TSD Laser Equipment Co., Ltd locates in Shenzhen, China and specialize in fiber laser cutting machine, Flat CO2 die board laser cutting machine, fully automatic blade bending machine development, manufacture, marketing and service.

Our factory covers 5000 meter square, coming with 4 branches in China, 50 workers work for us. The current production capacity is around 20-30 sets per month. Our delivery performance keep improving also, in year 2011, our on time delivery rate is 100%, which makes our customer satisfied.
