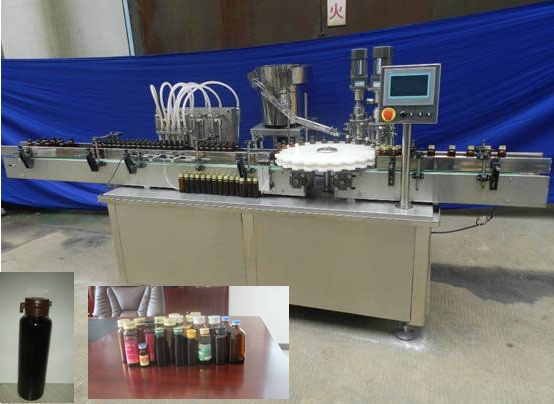

Automatic Vial Filling and Capping Machine Zhgx-100
Usage and Character
Mterial contact parts are importing 316L stainless steel which is anti-cprrosive. This machine can finihed the progress of filling and capping in one machine.
The filling heads adopts Siphon needle, which can solve the problem of dripping problems. Due to use the One-way seal valve and double-way sealing valve, can assure no dripping happens. The machine adopted 1 series high accuracy pumps, which can ensure the precise filling volume. We can also replace the pump with Ceramic pump or peristaltic pump filling according to requriements. The process of changing pumps is very simple.
This machine's advantage
1. Equipment general performance is strong, replacing the different specifications mould is little, and very convenient to operate.
Features:
All the electric components adopt the well-known brand in the world
Easy operation, no bottle no filling, high accuracy measuring
Autoamtic cap sorting and cap pressing, high performance.
Main body is made of 304 stainless steel, Meet the GMP standard.
Ideal choice for Pharmaceutical Industry and Chemical Industry.
.
Specifictions:
Filling volume 15-30ml
Speed: 70-100 bottles per min
Filling accuracy ≤ ± 1%
Power Supply 380V/50Hz
Capping accuracy ≥ 99%
Power 2. Kw
Net weight 550 kg
Size 3000*1200*1600mm
Configuration Table | Main body is made of 304 SUS |
Material contact parts are 316L importing SUS |
Measuring pump 8sets, 316LSUS |
Transporting motor is OPG of Taiwan |
Relay is Omoron |
Frequecy convertor adopts Mitsubishi |
Contacter is Schneider |
Main Motor is from Shanghai Lichao |
Speed reducer is from Hangzhou |
Mitsubishi PLC |
WEINVIEW Touch Screem |
CAM indexer from Japan |
Oscillation bedding plug machine is made by our factory |
All the buttons and swifts are Schneider |
Schneider Proximity switch |
Omoron Photoelectric switch |
|
