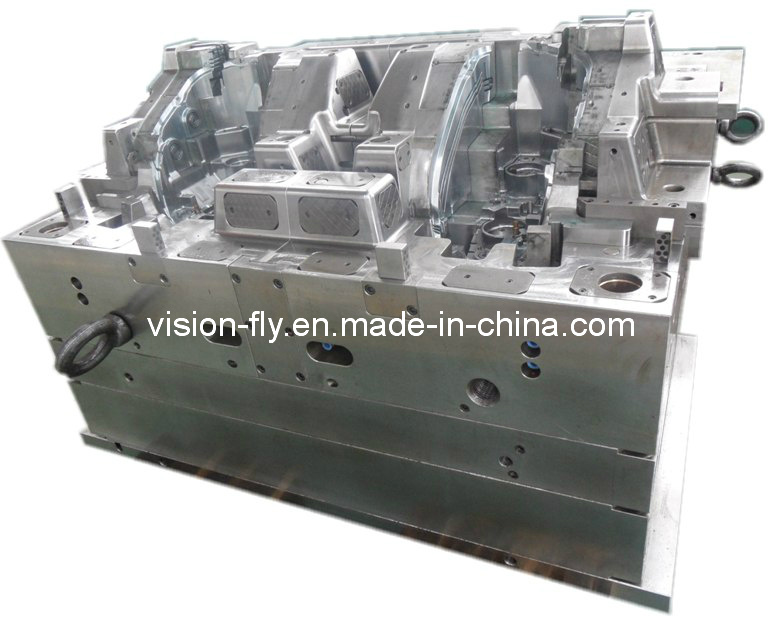

Automotive Light Mold

Automotive Light Mold
Price: Negotiable/Piece
Trade Terms: FOB,CIF,DAP
Min Order: 1/Set
Pay Type: T/T
Automotive light mold

Application: Automotive light

Injection mold


Mould description:
SGS certification
1. Steel of Cavity and core: 2738
2. Mold base: LKM
3. Cavity: 1x1Cavity
4. Mold gate way: Yudo hot runner
5. Cooling system: Enough cooling
6. Surface: Mirror polishing
7. Tolerance: 0.02mm, 2D/3D control
8. Mould life: 1, 000, 000 shots
9. Finishe time for first sample: 40 days.

Key Specifications/Special Features:

In order to make sure doff automatic and without any eject mark, must be arrange high Polish for this Plastic Injection Mould/Mold. This rack choose PP material, then advice choose hard enough steel
1. Customized designs, sizes and frames are accepted
2. Mould steel: NAK80 forging for cor and cav, LKM for moUld base (customized)
3. Mould treatment: Final treatment for cor and cav plates by vacuum queching to 38 to 42deg; (whole plates 0.3mm hardness)
4. Mould cavity: 1*1
5. Mould software: Choose UG for 3D design, AutoCAD for 2D drawing, mould flow for runner analyze

6. Mould size: 600 x 500mm (depends on client's machine upon changing mold size)
7. Mould fix machine: 350T on injection molding machine
8. Plastic material: PP (on normal choose PP)
9. Mould cycle time: 32 seconds/shot (without cool water when test this mold)
10. Mould doff way: Automatic by ejectors and air spring (Hasco standard)
11. Mould lifespan (minimum): 1, 000, 000 shots

12. Mould base: Copy standard mold base
13. Mould gate way: Hot runner (customized)
14. Mould packing: Standard wooden case
15. Minimum mould order should be one set
16. Mould shipment will be arranged within seven days after confirm amples and received balance
17. After product, if needs long time stay, should put oil (butter mix benzene) on the cor and cav, slider's surface prevents rust, with free spare parts during mould minimum life and technical Aegis.

Features:
1) We can provide plastic mould for various parts according to your requirements
2) We own CNC processing centers, CNC spark working machinery and various advanced mould tooling equipment. We also have established a CAD / CAM / CAE mould design and development center.
3) Our quality, price, after sale services are really competitive
4) Our range covers from eletrical accessory, auto parts, household appliance, computer accessory, medical appliance, car accessory, digital&security parts ect.
Mould, Mold, Plastic mould   Details:
Material of Core & Cavity Cav.               Mould Base Mould life(shots) Surface/Texture
P20                                                                                718H                                                                        NAK80                                                                2316 1*1 LKM                                                                              LKM (HASCO 50#)                                                                            DME 300000                              500.000                                    1000, 1000  EDM                                    MOLDTECH                                            High Polish
Machine Lead Time of mould Special Advantage
Advance CNC, EDM, W-cut   50 Days Glossy Surface High Polish
Products Details:
Dimension (mm) Material Dimension Control Tolerance
100*95*74mm ABS Korea 2D/3D Device   0.02mm

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shaping Mode: Injection Mould
Application: Car
Installation: Fixed
Process Combination Type: Single-Process Mode
Our company was established in 1993. We are specialized in design & manufacturing of plastic molds, die casting molds and production of plastic injection parts. We have a trading company registered in HongKong as well as a international sales office in ShenZhen, Guangdong, mainly serve for foreign customers and customers around Pearl River Delta.
There are 80 sets of molding equipments, including different size of CNC, engraving machine, EDM, linear cutting machine, grinding machine, milling machine, lathe, rocker drill, injection machine and so on. Inspection devices are CMM, projector, scanner and so on.
With twenty years' experence focus on mold manufacture, we keep long and good cooperation with customers from Taiwan, Japan, Europe and USA. We are extremely good at developing moldings in English, American, HASCO, and D-M-E standard as well as hot runner molds, high-smooth molds and large complex molds.
We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
