Host is extruded plastic extruder machine, which consists of extrusion system, transmission, and heating and cooling system.

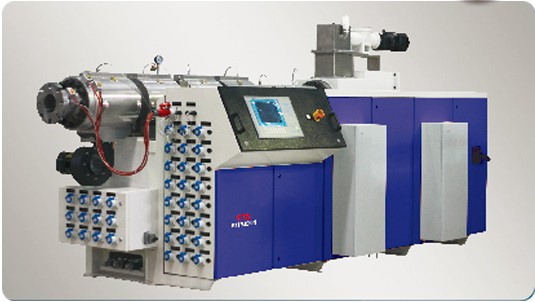

Twin-screw extruder
Twin-screw extruder
1 extrusion system extrusion system includes screw, barrel, hopper, nose, and mold, plastic extrusion system and plasticized by a homogeneous melt, and in the process established under the pressure of being a continuous screw extrusion head.
(1) Screw: Is the most important part of the extruder, it is directly related to the scope and productivity of the extruder, from high-strength corrosion-resistant alloy steel.
(2) Barrel: Is a metal cylinder, usually with heat-resistant, high compressive strength, extremely resistant, corrosion-resistant alloy steel or alloy steel lined composite steel pipe. Barrel and screw together to achieve plastic crushing, softening, melting, plasticizing, exhaust and compaction, continuous and uniform delivery system to the molding compound. Its barrel length is generally 15 to 30 times the diameter, to obtain sufficient heat so that the plastic and sufficient plasticizing principle.
(1) head and die: Die from alloy steel and carbon steel inner sleeve jacket structure, built with the head mold. The role of head of the plastic melt rotary motion into linear motion parallel and evenly smooth import mold sets in, and give the necessary plastic molding pressure. Plastic barrel plasticizing compaction, neck and head through the porous filter plate mold flow into the nose along a certain runner through the core die sets proper fit, forming an annular gap decreasing cross-section, so that the plastic melt forming a continuous coating layer around the tubular dense core wire. To ensure the plastic flow path within a reasonable head, eliminating the accumulation of plastic corners, often placed there shunt sleeve, pressure fluctuations for the elimination of plastic extrusion, also set equalizing ring. Machine head is also equipped with mold correction and adjustment device, easy to adjust and correct the mold core and concentricity die sets.
Extruder in accordance with the direction and angle of the screw head stream centerline, will head into the head angle (the angle 120o) and right-angle handpiece. Head shell is bolted to the body, head mold inside the cores sit in front of the nose and fixed line ports, core seat is equipped with a nut core, core and core seat with a central opening for passing the core wire; Fitted in front of the nose portion of the strap rings for pressure equalization; Molding part extruded from the die and die sets composed of the socket, the position of the die case can be adjusted via a support bolt to adjust the relative position of the die core sleeve, and easy to adjust uniformity of the extruded cladding thickness. Head outside and the temperature measuring device is equipped with a heating device.
Transmission drive system 2 is the role of the drive screw, feed screws in the extrusion process and the speed of the torque needed, usually by the electric motor, gear and bearing components.
2 heating and cooling apparatus for heating and cooling is a necessary condition for plastic extrusion process can be carried out.
Cooling means in order to ensure that the plastic temperature range required for the process settings. Specifically, in order to eliminate excess heat generated by the friction of the screw rotating shear, in order to avoid overheating the plastic decomposition, scorch or stereotypes difficulties. Cylinder water-cooled and air-cooled cooling is divided into two kinds, most small and medium extruder using air more appropriate large is to use more cooling water or in combination of two forms; Screw water-cooled cooling centers mainly aim is to increase the delivery rate of the solid material stable volume of the plastic,
