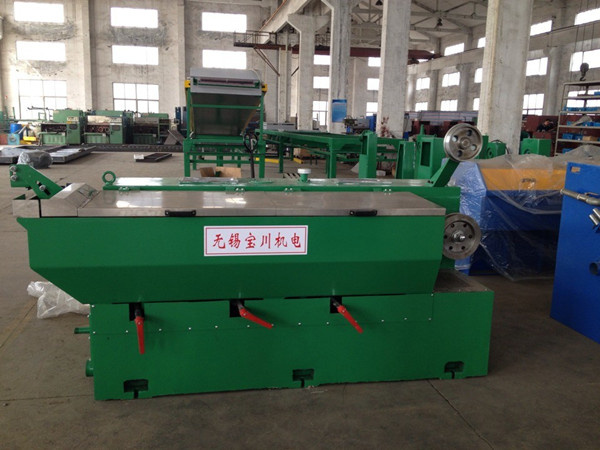

BAOC17DS high speed copper intermedaite wire drawing machine
Application
Copper intermediate wire drawing machine, inlet dimeter: 2.6-3.2, outlet diameter: 0.4-1.6
Composition
Pay-off 1 set
BAOC17DS intermediate wire drawing machine 1 set
Electric control system 1 set
Dancer 1 set
WS630 take up machine without shaft 1 set
Operation panel 1 set
Main teachncial parameter
Inlet diameter: 2.5-3.2
Outlet diameter: 0.4-1.6
Drawing speed: 2000mpm/max
Drawing dies No.: 17
Slip ratio of m/c: 20%+15%
Capstan dia. (Max): 250mm
Fix speed capsta dia. (Max): 250mm
Bobbin size: 400-600
Main motor: 55kw
Spool motor: 11kw
Power source: 380V 50HZ
Wuxi Baochuan Machinery Manufacture Co., Ltd is an enterprise specialized in reasearch and development, production and maketing of wire and cables equipments as a whole, located in China Cables city-Yixing city, famous and development economic Yangtze Rives Delta. We are all the time to make efforts to improve the machinery automation and developed a series ofg high efficiency, energy saving and humanized electric machine, by depending on the advantages of Yangtze River Delta"s, developed economic and location
Our main products, including: Wire drawing machines series: 13 Die, 9 dies high speed and low speed rod breakdown machine and online annealing machine(RBD), 17 Dies high speed intermediate drawing machine and online annealing machine; 20 die, 22 die, 24 die high speed fine wire drawing machine and online annealing machine; 15 die, 24 die super fine wire drawing machine, stainless, tin-coated, sliver-coated and so on special material wire drawing machine and online annealing machine. Annealing and tinning machine: 24 heads, 32H, 40H conduit annealing adn tinning machine.
