We are classical manufacturer in all types of Wire Drawing Machine, Continuous Annealing tin-coating Machine.

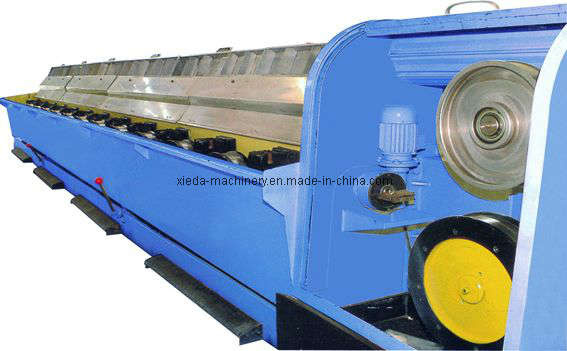

XD-13D Bare Copper Wire Large Drawing Machine
Inlet diameterΦ 8
Outlet diameterΦ 1.2-Φ 3.2
If you have anytjing requires, please feel free to tell us.
|
Machine type |
13D |
|
Inlet diameter |
Φ 8 |
|
Outlet diameter |
Φ 1.2-Φ 3.2 |
|
Drawing line speed |
1200 |
|
Drawing dies No. /Max |
13 |
|
Slip ratio of m/c |
24% |
|
Fix speed capstan slip ratio |
20% |
|
Capstan |
Tungsten |
|
Capstan dia. (Max. ) |
Φ 450 |
|
Fix speed capstan dia. |
Φ 450 |
|
Frame |
Weld; Two conjunctions |
|
Main motor |
250kw; DC motor |
|
Spooler motor |
15kw three phase inductor motor |
|
Revise system |
PID synchronous spooler |
Zhangjiagang Xieda Machinery Electric Co., Ltd., estiblished in 1991, which is located in the famous city of China--------zhangjiagang, nearby suzhou, Shanghai, wuxi. Our factory covers 15 acres with 8000 square meters building area, enjoying advantageous location and extremely convenient transportation.
We are classical manufacturer in all types of Wire Drawing Machine, Continuous Annealing tin-coating Machine, Stranding Machine and all kinds of frequency-conversion machinery equipments. We have an professional and innovative team with high vocational quality and enterprising morality. At the same time we introduce domestic and international advanced technology, setting up a perfect quality assurance system. We Provide the high quality post-sale service and won high praise, we have the best integrating design, producing department, sell and service group.
We sincerely welcome all friends from all walks of life to know more about "XIEDA", we hope build a long time and steady Cooperation Relationship between you and me. Sincere hope we can help your business more successfully.
----------Keep faith and close cooperation make us great achievement!
