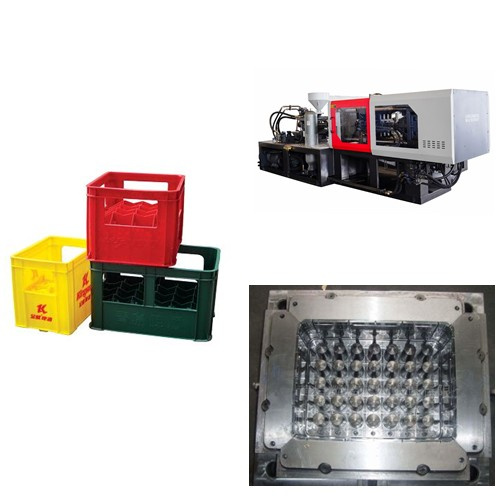

Specification of beer case injection moulding machine 398ton
LONGSHENG Machine Advantage:
1)Guarnateed for two years
2) Offer Injection Machine Operation&trainning Vedio
3) Have SGS certificate
4) T-Slot Platen
5)Machine weight much more than most of factory
6)Machine base use rectangular tube, more strong
7)Four PCS safe door are moveable, maintain the machine more convenience
8)Hydraulic Tank is moveable, more easy to clean the tank when needed
9)Heating band is made by ceramics, not steel sheet. Can work more long time;
10)Prepared more spare parts for customer as below:
2PCS nozzle; 1 set tool box; 3PCS heating band; 1 set mold clamp; 1 container lubricate oil; 1 PC oil filter; 2 PCS switch; 1 set spanner; Seal circle: 3PCS
11) Injection Machine computer with USB connect Point, you can move all mould settings parameter on your desktop computer
INJECTION UNIT |
|
Unit |
LSF-398 |
|
A |
B |
C |
|
Screw Diameter |
Mm |
70 |
75 |
80 |
|
Screw L/D Ratio |
L/D |
21.4 |
20 |
18.8 |
|
Short Size |
Cm3 |
1385 |
1590 |
1809 |
|
Injection weight |
G |
1260 |
1447 |
1646 |
|
Injection Rate |
g/s |
310 |
356 |
405 |
|
Plasticizing capacity |
g/s |
60 |
65 |
70 |
|
Injection Pressure |
Mpa |
195 |
158 |
139 |
|
Screw Speed |
Rpm |
0-165 |
CLAMPING UNIT |
Clamp Force |
KN |
3980 |
|
Space Between Tie Bars |
mm |
720*720 |
|
Toggle Stroke |
mm |
700 |
|
Max. Mold Height |
mm |
760 |
|
Min. Mold Height |
mm |
280 |
|
Ejector Stroke |
mm |
200 |
|
Ejector Tonnage |
KN |
110 |
|
Ejector Number |
P |
13 |
OTHERS |
Max. pump Pressure |
Mpa |
16 |
|
Pump motor powder |
Kw |
37 |
|
Heater Power |
Kw |
24.8 |
|
Machine Dimension(L*W*H) |
M |
7.3*2.0*2.2 |
|
Oil Tank Capacity |
L |
850 |
|
Machine Weight |
T |
16 |
