Helpful hints:
A. standard off-the-shelf mold, non-standard specifications can be according to the drawing requirements of customers processing and production.
B. because too many product varieties and species, the diagram can not have what you need, but as long as you can say what you need. Or provide the drawings to us, we can get qualified product in your hands! If you need help, please contact us.
Product information:

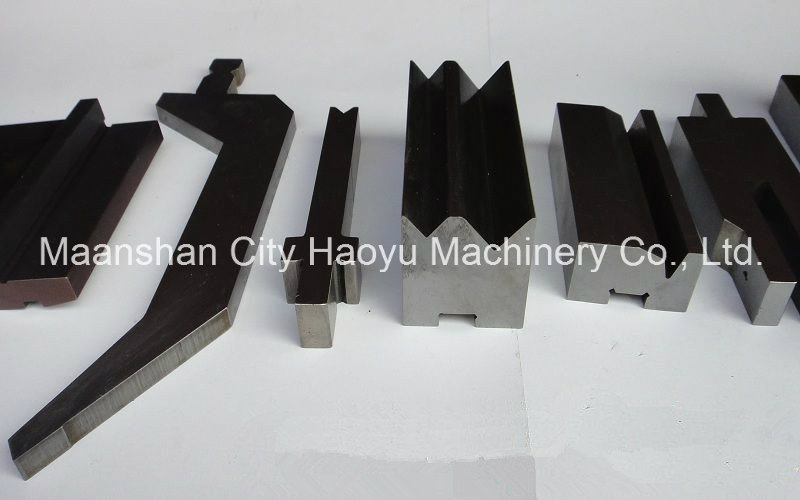

CNC bending machine mold materials: Cr12Mo1v1, 42 crmo, T10a
Quench hardening: HRC: 52 ° to 60 °
Plus or minus tolerance: 002
Other services: CNC bending mold grinding, grinding, maintenance, etc
Standard length: 835 mm, 800 mm and 550 mm (standard CNC bending machine mold spot supply, non-standard bending machine mould specifications can be according to the drawing requirements of customers to provide customized processing and production.)
CNC bending tool segment, the conventional segmentation specifications are as follows:
Die block 1
Nc bending die: 100 (left), 10, 15, 20, 40, 50, 200, 300, 100 (r) = 835 mm
CNC bending die: 10, 15, 20, 40, 50, 100, 200, 100 = 200 mm
Die segment 2
Nc bending die: 100 (left), 10, 15, 20, 40, 50, 165, 300, 100 (r) = 800 mm
Applies: import L.V.D CNC bending machine, AMADA CNC bending machine, TRUMPF, FINN - POWER CNC bending machine and domestic CNC bending machine with mold. Product has differential mode of CNC bending machine, bending machine die, bending machine die under concentric, under bending machine mold, CNC bending machine composite forming mould, etc.
Bending machine mould is a tool for bending machine used for sheet metal forming process, this tool has all parts, different mould made up of different parts. It is mainly by the changes of the molding material physical state to implement items shape processing. To under the action of bending machine pressure make blank into a specific shape and size of the stamping tools.
Bending machine mold material selection: generally with T8 or T10, again good some 42 crmo material, it demands mainly by high strength, high toughness and good wear resistance, selection of cold work die steel. Cr12MoV is good material. Use can meet the performance, process performance, the price will be high. 42 crmo is an alloy of high strength quenched and tempered steel, high strength, strong toughness. Can work under 500 degrees. T8, T10, 42 crmo, Cr12MoV.
MaanShan Haoyu Machinery Co., Ltd. Located in Bowang industrial park Maanshan Anhui, mainly engages in manufacturing all kinds of bending machine, plate shearing machine, punching machine, cutting tool and mold etc. It specially provide special machinery and complete equipment for industries, such as aviation, light industry metallurgy construction, auto, electric power and upholster, etc. The products are sold all parts of China and exported to South East Asia region.
The Company adopts modern enterprise management, focuses on quality management of products and wins fully confidence and high acclaim from all our customers by good quality, new design, favorable price and complete aftersa{e service. With exquisite technology, fair price, good quality and fast aftersale service and technicalsupport, the company's products are affirmed at all times by customers at home and abroad, The company will use all opportunities to introduce talented people and promote product competitive power. The rapid development of the company will provide better products and service to all users.
