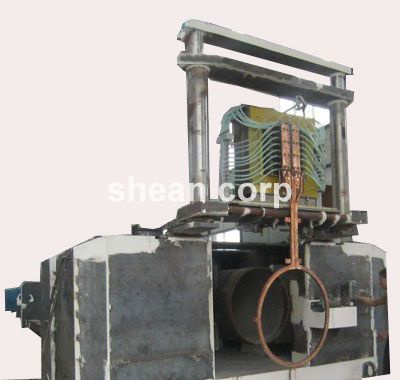

Bent Machine
HYG series Bent Machine is specially designed for production bending radius above R = 3 times benders.
The Bent Machine we supplied can process the following pipe:
Min bending radius R=2.5D
Max. Bending radius R=6D
Max. Process diameter: OD 325mm
Min. Process diameter: OD 89mm
Min. Process thickness: 6mm
Max. Process thickness: 18mm
The whole Bent Machine is composed of host machine and medium frequency heating power.
Host machine used hydraulic transmission, it's easy to achieve fast conversion between fast pushing-fast return and feeding speed, and randomly to adjust the pushing force. Stable working with low noise, no pollution. We can also adjust the process specification of the products. It's convenient and reliable, low failure rate.
Welcome to our factory visit. Shean also supply all kinds of machine according to customer requirements. We supply Bent Machine, elbow forming machine, press machine, bevel machine.
|
Serial number |
Max diameter |
Max thickness |
Stroke of cylinder |
Quantity of cylinder |
Max thrust |
|
(mm) |
(mm) |
(mm) |
(piece) |
(t) |
|
|
|
|
|
|
|
1 |
1420 |
20 |
6500 |
4 |
670 |
|
2 |
1220 |
20 |
6500 |
4 |
600 |
|
3 |
1020 |
20 |
6500 |
4 |
500 |
|
4 |
820 |
20 |
6500 |
4 |
400 |
|
5 |
720 |
20 |
6500 |
4 |
320 |
|
6 |
630 |
20 |
6500 |
2 |
300 |
|
7 |
530 |
14 |
6500 |
2 |
160 |
|
8 |
426 |
14 |
6500 |
2 |
130 |
|
9 |
325 |
14 |
6500 |
2 |
84 |
|
10 |
219 |
12 |
6500 |
2 |
65 |
Shean (Cangzhou) Corp Ltd registed in 2011, production line started in 1994. Has technician 10 persons, workers 50 persons, sale clerk 12 persons. For years, Shean helps heavy industrial enterprises gain huge profit domestic and abroad. Shean started foreign business since 2008 as while as good domestic sales. In 2014, Shean will creat another workshop as showroom of various machines running and head office will move to Cangzhou City with 900 square meters.
Our main scope for making and sells are: Induction pipe bending machine, Elbow forming machine, Tee machine, Hydraulic press, Pipe fittings, elbows, tee. "good products and complete after sale service " is our core principle.
Product covers all over the world, like USA, England, Russia, Turkey, India, Poland etc.
Welcome you visit Shean (Cangzhou) Corp Ltd.
