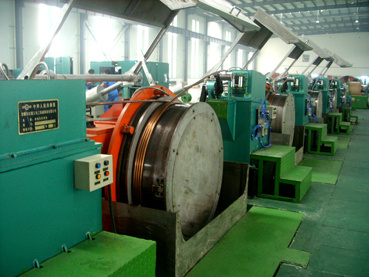

LFD trolley wire drawing machine
1. Application:The machine is used for drawing the copper alloy trolley wire which used in the electric railway, drawing the Φ20-Φ22mm rod toΦ10.8-Φ14.4mm trolley wire. 2. Main Compositions:2.1. Coiler type pay-off2.2. Length counter 2.3. Drawing liquid supplying system 2.4. Shaft mounted pay-off2.5. Movable take-up2.6. Drawing cooling system2.7. Main drawing machine 2.8. Electric control system 2.9. Wire pointer and stringer 3. Main Features3.1. Non sliding type drawing: Every drawing capstan is driven by individual motor. Dies arrangement is flexible.3.2. Torque type motor control mode: Wind wire around drawing capstan in several circles, which ensure the wire has little slide on the drawing capstan and guarantee the good surface quality of wire.3.3. Cooled sufficiently: Adopt inside and outside water circulation system to cool the drawing capstan. The sufficient cooling avoid the wire overheat and improve the drawing speed effectively.3.4. Long service life of drawing capstan: The surface of drawing capstan is painted with tungsten carbide and processed by grinding treatment, which guarantee the long service life of drawing capstan.3.5. Excellent function of take-up: Adopt entirety movable type traverser. The powder transmitted through ball screw, which ensures the machine moves smoothly. Its self-lock function ensure the accuracy of traversing and avoid capsize of wire.3.6. Advanced electric control system: Adopt DC motor and imported DC speed regulator to control the running of motor. Adopt imported PLC to command and coordinate the whole line. Adopt imported 10.4 inch colorful touch-screen to display and set on-line technical data. Model | LFD-1000/4 | LFD-1200/5 |
Inlet Wire Dia. | Φ20mm | Φ20-Φ30mm |
Outlet Wire Dia. | Φ10.8-Φ14.4mm | Φ10.8-Φ14.4mm |
Section elongation | 20-30% | 20-30% |
Max. drawing speed | 60m/min | 60m/min |
Powder of motor | 75kw*4 | 90kw*5 |
Transmission ratio of reducer | 80-140 | 110-200 |
Pay-off bobbin size | Φ2000 | Φ2000 |
Take-up bobbin size | Φ2000 | Φ2000 |
4. Our company:Yangtze Precision Machinery & Technology Co., Ltd. is a leading company specializes in R&D and the manufacture of machinery and equipment for wires and cables in China. Our main products consist of three main series, drawing machine, stranding machine and laying up machine include various types of planetary stranding machine, rigid frame stranding machine, tubular stranding machine, drum twister laying up machine, laying-up stranding machine, copper rod drawing machine, aluminum or aluminum alloy rod drawing machine, extruder, optical fiber cable SZ stranding line, optical fiber sheath production line and relevant auxiliary equipment. That's our connected information:Yangtze Precision Machinery & Technology Co.,Ltd. Changjiang Jinggong Industrial Park, Lu'an Economic Development Zone, Anhui, China 237161 Tel:+86-564-3634-718 Fax:+86-564-3634-717 Website: www.ahcjcm.com
Anhui Changjiang Jinggong Wire & Cable Machinery Co., Ltd. is a subsidiary of Jinggong Holding Group with registered capital of 40 million yuan and total investment 150 million yuan. With continuous development and extensive experience, it becomes a leading company specializes in R&D and the manufacture of machinery and equipment for wires and cables in China.

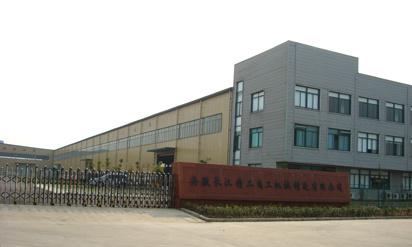

Our factory is located at Changjiang Jinggong Industry Park, Lu' An Economic Development Zone. The modern plant covers an area of 48, 000 square meters, equipped with large scale processing machine and a complete range of test equipment. Our company is a member of China Electrical Equipment Industrial Association and Shanghai Wire and Cable Industry Association. We have established the Quality Management System (QMS) with ISO9000 standard and achieved SGS certification of golden supplier on Made-in-China. Three main series, over 40 kinds of products have acquired CE marking for Europe market.

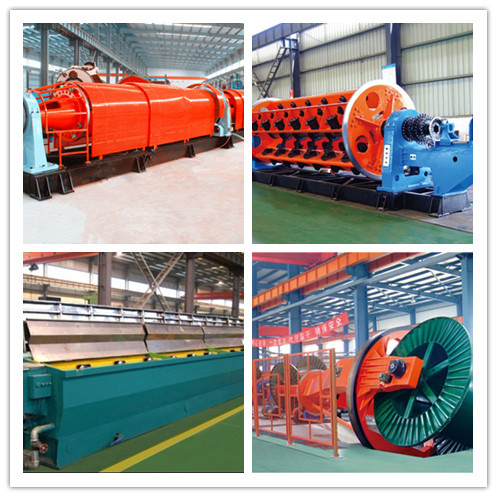

Our feature products include various types of planetary stranding machine, rigid frame stranding machine, tubular stranding machine, drum twister laying-up machine, planetary core laying-up machine, armoring machine, copper rod drawing machine, aluminum or aluminum alloy rod drawing machine, trolley wire drawing machine, extruder and relevant auxiliary equipment.
Technology To Further Our ' People First' Philosophy. By offering the customers full technical support, and services including commissioning, training of personnel, one year warranty and continuous spare part supply, we always aim to provide our global customers top quality products and service.
