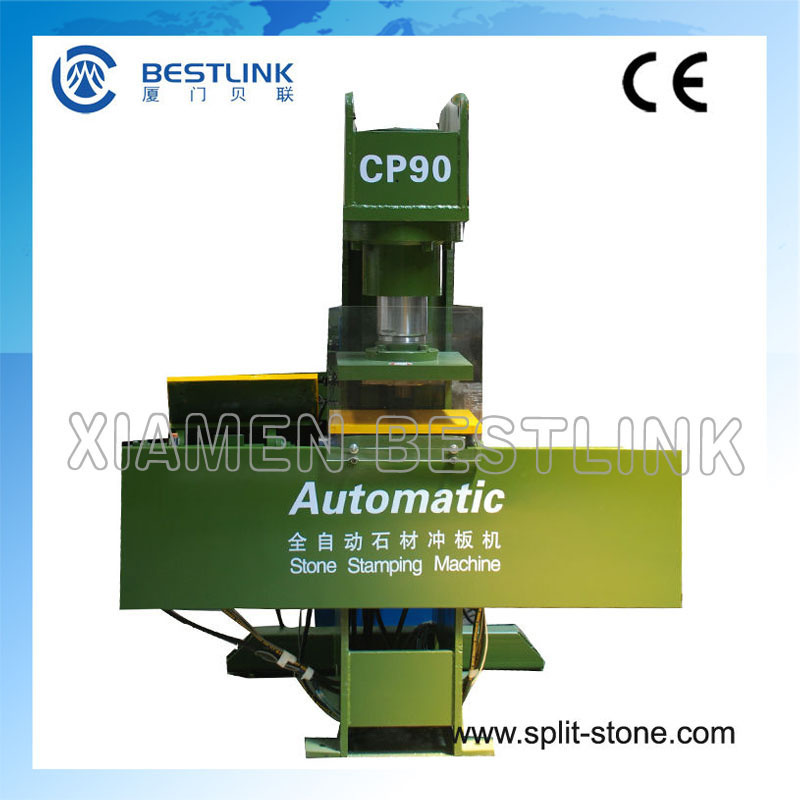

Bestlink Automatic Stone Stamping Machine

Bestlink Automatic Stone Stamping Machine
Price: US $ 3000-7000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Automatic Stone Stamping Machine for Xiamen Bestlink

1.CE Certificate
2.40 different models
3.It is used to press letfover and slabs

Online Video:
HTTP://V.youku.COM/V_show/ID_XMjE2MDM2MzAw.HTML

http://xmbestlink.en.made-in-china.com/custom/CP90-40T-B-Stone-Stamping-Recycling-Equipment-Machine-for-Marble-and-granite-AQTxhkYUoJVc.html


Hydraulic Granite Stone Pressing Cutting and Stamping Machine
As a professional factory for producing this kind of stone stamping machine, we absolutely can provide you a good machine to reuse your waste stone slabs, and save your money.
Our hydraulic slab stamping machine is specially designed for processing the waste or leftover slabs or tiles into different shapes with difference moulds (designed patterns), providing to the builders for plaza, street, villa and living areas.

Advantage:
1.This machine is for changing the waste slabs into valued paving tiles, which is save the stone materials and protect the environment.
2.This machine have very compact structure, it is easily operated and maintained.
3.The CP-90 machine have the output around 80m²~100m² per day, certainly, if the operators have very good experience and skill, the yield will be much more.
4.This hydraulic stamping machine has 3 in 1 functions. Three functions for your choice: pressing(stamping), splitting and cutting.
5.It can stamp / Press the stone tiles thickness from 1cm up to 8cm of more than 40 designs figure brick. with the same machine.
6.It also can separate the stone brick or bar into natural face for decorating wall stone or round fire pit cladding.

Technical Data:
We can provide 2 types of this machine, they differ in the stamping power. One is 20T, the other is 40T.
They can process different slab size, one is 30cm*30cm*5cm, the other is 30*30*8cm.

Model

CP90-20T-A

CP90-40T-A

CP90-20T-B

CP90-40T-B

CP90
(40T automatic)

Hydraulic pressure

20Mpa

20Mpa

20Mpa

20Mpa

20Mpa

Splitting power

20T

40T

20T

40T

40T

Electric motor power

4kw

7.5kw

4kw

7.5kw

7.5kw

Max.slab stamping size

30cm×30cm×5cm

30cm×30cm×8cm

30cm×30cm×5cm

30cm×30cm×8cm

30cm×30cm×8cm

Max splitting length

30cm

35cm

30cm

35cm



Max splitting height

1-5cm

5-8cm

1-5cm

5-8cm

1-5cm

Machine size

70*86*113cm

80*100*150cm

80*100*150cm

80*100*150cm

80*100*150cm

Weight

420kg

550kg

500kg

580kg

650kg

Fuctions

stamping,splitting

stamping,splitting

stamping,cutting,splitting

stamping,splitting,cutting

stamping

Prod Model: CP90
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power: by Electric
Style: C-Front
Capacity: 20t and 40t
Brand: Bestlink
Type: Hydraulic Cutting Machine
Usage: Marble
Application: Stone Industry
Source Voltage: 380V
Automation: Automatic
Xiamen Bestlink Factory Co., Ltd.Is committed to providing the best drilling and cutting machines, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project.Our company is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in China.

Since 1985, we have produced and supplied high quality Split AG Non-Explosive Demolition Agent to our worldwide customers in the quarrying and demolition industries.

From early 2000, we have made a start in the study and developed the Hydraulic Rocks and Concrete Splitters by patent inventions, and reached a great success in the domestic and overseas market.Now, we are only a producer and exporter just now from China.

In 2004, we developed and produced the patented products:Hydraulic Rock Drill, Stone holes Groover, Stone Crack Expander and Hydraulic Rock Breaker.We offer a vast range of hydraulic and pneumatic drills and machines for diamond wire cutting as well as all kinds of accessories for quarrying activities.

Now, quality products are being exported to more than 45 countries and regions all over the world including the USA and Europe with high reputation.

We are continually looking for ways to develop drilling and cutting technology for quarrying and demolition, and hoping to be the world NO.1 company about quality and prices of hydraulic Splitters and Expansive Cement within 5 years.Thank you very much for your support and wish to get your deep interest and be your best partner.
