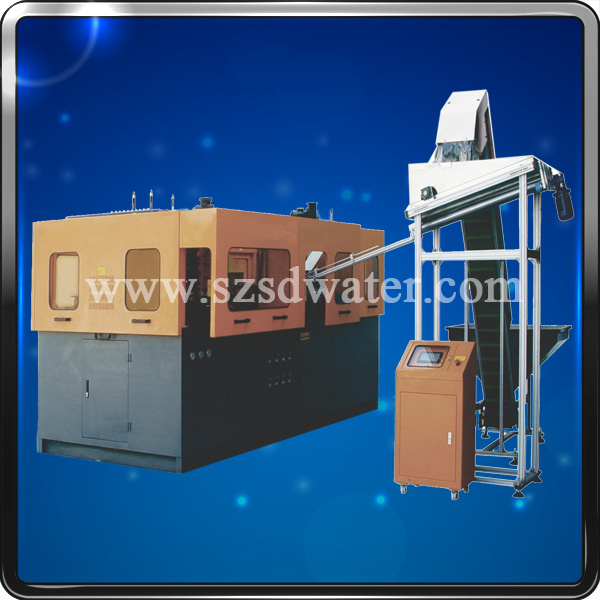

Beverage Bottle Series Automatic Mold Blowing Machine

Beverage Bottle Series Automatic Mold Blowing Machine
Price: US $ 3000-10000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Beverage Bottle Series Automatic Mold blowing Machine

Characteristics:
Full automatic, fast and efficient perform feeding system adopts the variable frequency motor star wheel to load perform and save air source.
Energy-saving and high efficiency semi open style heating system can save more than 30% energy comparing with other competitors.
Double crank arm mould clamping, linkage structure of die block, coordinating with high pressure compensation mould clamping process, solving the problem of the thick mould joint line of completed bottle.
The machine equipped with UK NORGREN High pressure combination valves with the advantages of big flowing and fast reaction to improve the unit production and save energy as well.
The machine has standard fitting system supply to ensure the equipment run steadily and reduce the maintenance cost.
MMI design, linear structure, simple operation, convenient and fast changing of the mould.
The machine equipped with automatic bottle out system, and can be connected to filling machine system on the automatic production line.


specifications :
ModelSD600-6SD600-4SD2000-6SD2000-4
Function  AutomaticAutomaticAutomaticAutomatic
Production Capacity6000-7000 bottles per hour3500-4000 bottles  per hour4000-5000 bottles per hour4000-5000 bottles per hour
Bottle volume600mL600mL2000mL2000mL
PETPETPETPET
mould6 cavities4 cacities6 cavities4 cavities
Main machine power380V 3 phase 50HZ380V 3 phase 50HZ380V 3 phase 50HZ380V 3 phase 50HZ
66KW66KW82KW82KW
Air dryer21.0m3/min 30Kg2.0m3/30Mpa*1set
Size4300*1850*2000mm3800*1900*2000mm5800*2000*2000mm4200*2000*2200 mm
Weight6500kg4500kg8000kg5500kg
Blowing cylinderFESTOFESTOFESTOFESTO
ValveFESTOFESTOFESTOFESTO
CylinderSMCSMCSMCSMC
PLCLGLGLGLG
HMI SCREENLGLGLGLG
SwitchOMRONOMRONOMRONOMRON

Prod Model: SD 2000-4Z
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity: 4000 Bottles Per Hour
Bottle Volume: 2L Max
Number Of Cavities: 4
Heating Unit: 4 Group
Type: Injection Blow Molding Machine
Raw Material: PET
Making Method Of Parison: Injection Blowing
Automation: Automatic
Computerized: Computerized
Certification: UL
Shine Dew Water Equipment Co., Ltd. is a specialized supplier of drinking water plant, bottled filling machines, labeling machines, package machine and other auxiliary equipments, with more than 10 years of experience in China.

We can provide machines and services as below:

1. RO(Reverse osmosis) water purification equipment;

2. UF(Ultra filtration) system for mineral water and spring water;

3. Automatic water bottle 3-in-1 washing filling capping machines for 3 or 5 gallon barrel and Automatic 3-in-1 monoblock filling machines for small PET bottle (0.25-2L);

4. Packaging machines, like labeling machines and date printing machines, PE shrinkage packaging machine;

5. Bottle blow moulding machines for various type/material bottle

6. Make budget for customers; Building water treatment factories as per clients' request;

7. Factory layout design, machine installation and adjustment and operation technology training;

Our goal is to assist our customers to provide healthy water and drinks for human beings. We sincerely hope to develop together with our customers in the field of water treatment industry. We welcome your contact via email, telephone and fax. We will always do our best to serve you here.
