Motorcycle tyre production line including the following all machines.
Model
Name of equipment
Model
QTY
Notes
Milling phase
1
Single blade cutter
660-1
Width of blade660mm
2
Banbury mixer
X(S)M-35/30
1
Hydraulic rollover unloading
3
Mixing mill
XK-450
1
4
Rubber sheet cooling machine
XPA-600
1
Working length 10 meters
Calendering phase
1
Four roller calender
XY4-1400
1
Include front, back device
2
Mixing mill
XK-450
1
Molding phase
1
Mixing mill
XK-450
1
2
Mixing mill
XK-400
1
3
Rubber extruder
XJ-150
1
4
Shutter car
10 layers
10
2000× 900× 60
5
Vertical cutting machine
LC-1500
1
6
Bead ring unit
1
7
STB former
2

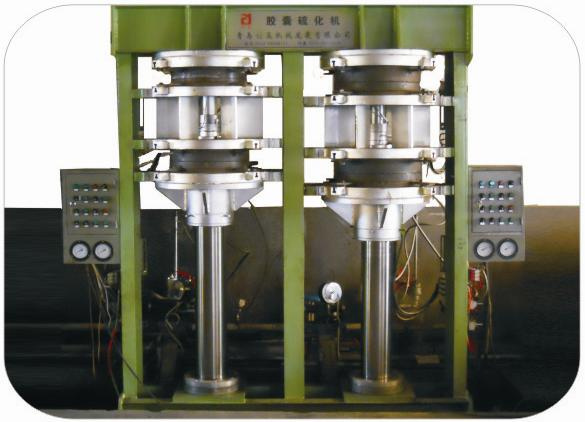

Vulcanizing phase
Unit 1
Four layers hydraulic vulcanizing machine
80T
6
Inclued 2 sets process for tyre
2
Splicer
1
3
Tyre shell perforating machine
2
4
Tyre shell heading press
2
5
Extruder
XJ-115
1
6
Mixing mill
XK-400
1
7
Tire shell machine
3
8
Tyre air setting machine
3
9
Mold
According customer's quantity, patterns and other requirements
Type |
WT801-1821-4P |
Size of tire |
10" 17" 18" motorcycle tyre |
Nylon cord |
2 PLY(4PLY) |
Cord fabric roll diameter (max) |
450mm |
Inner cloth roll diameter (max) |
400mm |
Revolution of drum |
180/60rpm |
Main drive motor |
pole change motor 1.5kw/4P |
Under stitcher motor |
pole change motor 0.4kw/4P |
Ply servicer motor |
1/2HPx4Px1/20/each ply |
Compressed air |
5-7kg |
Overall dimension |
2300Lx2200Wx2050H |
Building speed |
2PLY building 500pcs/8hrs 4PLY building 400pcs/8hrs |
Total pressure |
650 KN |
Working layer |
2 layer x2 set |
Plate daylight |
450mm |
Applicable rim diameter |
500-650mm |
Piston diameter |
210 |
Working pressure |
0.6-0.8 |
Motor power |
7.5 kw |
Weight |
3500 kg |
Note: one hydraulic station with 2 mainly machines |
Qingdao Eenor SCIENCE&TECHNOLOGY Co., Ltd is a professional production of rubber machinery company, has the independent production companies and import and export corporation. The company has the abundant technical force and rich production experience. Our main products: Plate vulcanizer, open mixing mill, mixer, tire vulcanizing machine, rubber cutting machine, rubber extrusion machine, rubber tile vulcanizing press, tyre crusher etc. Complete sets of equipment are: Ordinary conveyor belt production line, waste tyre reclaimed rubber powder production line. We can also according to the customers request; Design and manufacture all kinds of standard rubber machinery and equipment.
My company's products have passed the certification of the various, such as: Plate vulcanizing machine has passed the SGS certification, scrap tire rubber powder production equipment certified by BV certification (France). Product best-selling more than 30 provinces and regions, and exported to southeast Asia, the Middle East, Africa, Europe and the America and other 20 shelves and regions.
Our Company Motto: "THE HONESTRY IS THE ROOT, A PROMISE IS A PROMISE" the enterprise idea, adhere to market-oriented, providing customers with advanced products and quality services. Mr kIMSUN PANG(Chairman) together with all staff warmly welcome customers at home and abroad to the company to negotiate, guidance, my company is willing to first-class technology, first-class service, first-class quality, sincerely service for you.
