| Price: | US $ 17-20/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal,Western Union |
Unit | 95% Al2O3 | 99% Al2O3 | ZrO2 | GP-Si3N4 | |
Color | - | white | ivory | white | gray |
Density | g/cm³ | 3.65 | 3.88 | 5.95 | 3.22 |
Water Absorption | % | 0 | 0 | 0 | 0 |
Young's Modulus | Gpa | 280 | 350 | 205 | 295 |
Vickers Hardness | Gpa | 14 | 20 | 12 | 18-20 |
Flexural Strength ( at R.T. ) | Mpa | 280 | 300 | 900 | 650 |
Compressive Strength ( at R.T. ) | Mpa | 2000 | 2500 | 2200 | 2200 |
Thermal Conductivity ( at R.T. ) | W/(m.K) | 18-25 | 30 | 2.2 | 25 |
Thermal Shock Resistance | ΔT(°C) | 220 | 180-200 | 280-350 | 450-650 |
Max. Working Temperature ( at R.T. ) | °C | 1500 | 1700 | 850 | 1200 |
Volume Resistivity ( at R.T. ) | Ω.cm | >10^15 | >10^14 | >10^12 | >10^14 |
Dielectric Constant (1 MHz at R.T. ) | - | 9.50 | 9.80 | 26 | 8.20 |
Dielectric Strength | kV/mm | 16 | 22 | - | 16 |

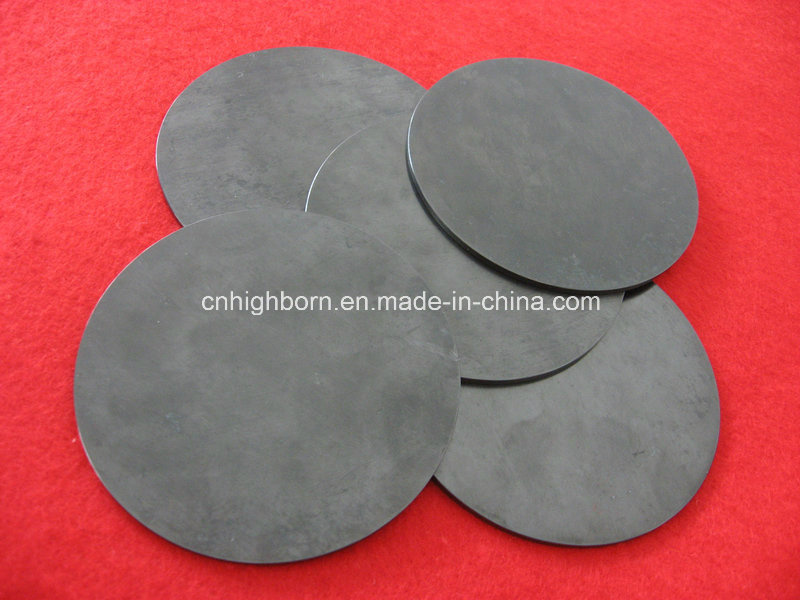

| Prod Model: | HB9 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Density: | 6.0g/cm3 |
| Size: | Diam80*Thickness2mm |
| Method Of Moulding: | Thermal Casting/Drying Press/Extrusion |
| MOQ: | 5PCS |
| Application: | Insulating Varnish |
| Type: | Insulation Sheet |
| Material: | Ceramic |
| Chemistry: | Wear Resistance |
| Thermal Rating: | 1000c |
| Maximum Voltage: | 220V |
| Color: | Black |
| Brand: | Hb |
