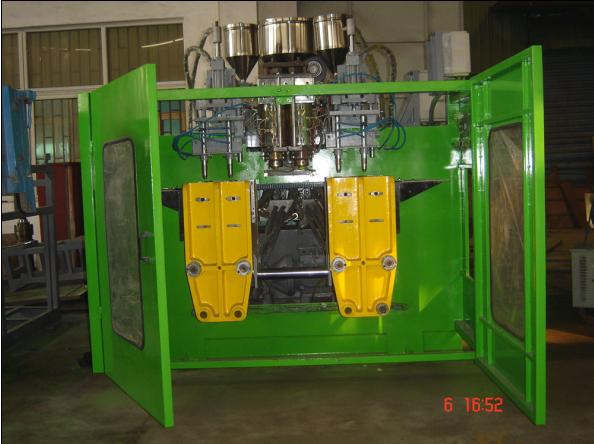

BLB75D Blow molding machine
Apply material:HDPE, PP, PE, PVC, etc.
Production capacity:10 L(max)
Theory output:240/300 per hour
Screw diameter:75mm
Screw L/D:24/1
Screw rigidity:HV700-840,
Screw brittleness:<=3 degree
Plasticizing ability:90kg/hr.
Arrange of temp.Control:0.5
Heating zones:3
Max size of mould (L*H):400*470mm
Automatic, high speed, controlled with computer.
It can equip with singledoublethirdfourth blowing equipment.
Japan Mitsubishi PLC + human-computer interface (Chinese or English interface), touching screen operation,
Realizing the dialog between human and machine, import components.
Production process of settingchangingsearchingtrouble diagnoses can realize easily in the touching screen.
Blowing moulding machine,bottle blow moulding machine ,plasitic machine.
We are professional manufacture the blow molding machine over 14 years experiences, also we can design according to client requirement, and save cost, we ensure can supply high quality but lowest price and good after-service. Hope can cooperation with you, and create beautiful furture together.
