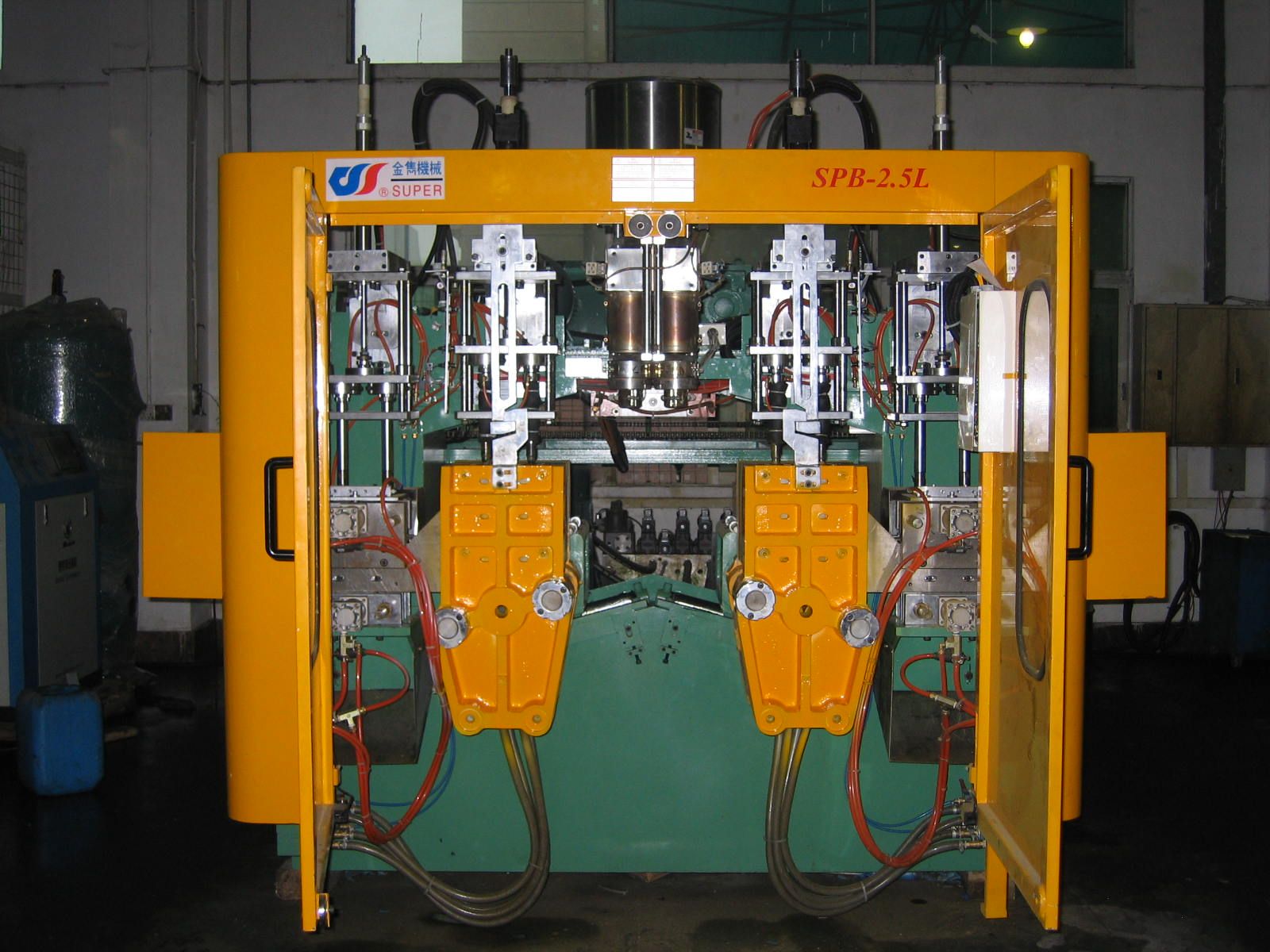

Blow Molding Machine to Double Head (SPB-2.5L2JD)

Blow Molding Machine to Double Head (SPB-2.5L2JD)
Price: US $ 38000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P
SPB-2.5L2JD blow molding machine Series?DOUBLE Station automatic plastic extrusion blow molding machine SPB-2.5L?model?DOUBLE station series automatic blow molding machine Product intro?duction: There are automatic water setting, rotary bottle mouse cutting setting, conveyer belt facility and automatic scraps collecting system, there are single mould head, double mould heads, three mould heads, four mould heads and six mould heads to be selected, the daily output (24 hours) reaches proximately 20,000 to 120,000; it can produce 0.1-2.5L plastic hollow products. ?Extrusion System A. We've introduced into a set of system of extrusion design, analog data analysis, which carries out real-time supervision and monitoring in accordance with plastic material type at different process sections (Feeding, Plasticization and Blending), it adjusts the screw parameter design, temperature and speed. The purpose is to achieve the best injection result for the different models of plastic. B.The system is made by a Taiwan-base professional manufacture, with our precise process skill, we adopted Japan special steel and advance CNC equipment, and ensure result in high precision and long durability. C.Advantage: 1. 40% more than traditional design in injection output; 2. Guarantee products weight stability and smallest tolerance, to reach +-1g; 3. The plasticization result is even, the color is bright and steady. We have adopted advanced Germany originated notching extrusion system. The screw is different from conventional design, featuring in boost extrusion that ensure smooth extrusion rate, superior plasticizing/mixing and perfect proportioning extrusion with 20 to 30 percents flow rate over the conventional extruder. The new extruder is applicable to PE,PP,PS,PVC,TPU,PETG,PA,ABS,EVOH,EVA,POM and other. Hydraulic system We introduce into America hydraulic system design of blow molding machine for the whole hydraulic system and parts, purchase for the oil pump, oil valve, oil panel, pressure flux two-proportions valve and nitrogen store system, with the special hydraulic filtrate system to make sure the whole hydraulic move swift, steady, no strike, durable, low noise, save power, and hydraulic pressure oil. Germany design die, improved central inlet ensuring first in first out of material benefit in fast flush color changing.Top quality 38 CrMoala die machined in 4 axis CNC machine completed with hear treatment; Extremely long life. Effectively assure seamless parision with superior thickness control while minimize creation of internal stress. With 100 points MOOG controller system Airing circulation system (Pneumatic parts) Thanks to our experience for many years in this field and the airing constituent FESTO and SMC respectively imported from Germany and Japan. We have designed and produced a series of airing circulation system including the blowing technology, clearance airing and airing dryness system.? Electricity circuit system, touch screen Use occident world famous brand, and our professional design control system and PLC parts for blow molding machine, module design, enlarge or change is agility, center control, network long-distance check, multi group data message, brainpower focus temperature control, self-motion alarm for trouble, action auto reset, screw, auto cooling protect setting, store for many group setting parameter, auto record the output and cycle time,the touch screen can interchange Chinese, English, Spanish etc.
Model   SPB-2.5L2JD
Screw diameter mm 55
Screw L/D ratio L/D 26:1
Drive motor kw 15
Inverter kw 11
Screw rotating speed r.p.m 10-85
Number of the heaters zone 8
Heating capacity kw 9.6
Extruding capacity per hour HDPE/PP kg/h 65
PETG/PVC/PC kg/h 45
Extruding mouth outer diameter mm 80
Mold center distance mm 130/120
Mold stroke mm 150-380
Length of mold capacity mm 100-350
Die width mm 100-380
Thickness of the mold capacity mm 150-180
Dry cycle per hour time/s 1000*2
mold-locked pressure ton 5.5
Oil tank capacity L 150
Pressure of air kg/cm 2 6-8
Air Volume m 3 /min 0.8
Cooling water pressure mpa 0.3-0.5
Cooling water consumption L/min 50
Min./Max.diameter of product mm 30-100
Weight of product g 10-250
Product capacity L 1.0
Total electrical power rating kw 35.6
Average electrical power rating kw 19.5
Machine net weight ton 4.5
Machine gross weight ton 5.0
Machine demension(L*W*H) m 3.2*2.1*2.5
Box dimension m 3 18

Prod Model: SPB-2.5L2JD
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Oil Pump: Vickers
PLC Temperature Control Module: B&R From Austria
Oil Valve: Condition New
Screw Diameter: 55mm
Drive Motor: 15kw
Inverter: 15kw
Box Dimension: 18m3
Machine Demension(L*W*H): 3.2*2.1*2.5m
Machine Gross Weight: 5tons
Average Electrical Power Rating: 19.5kw
Automation: Automatic
Making Method Of Parison: Extrusion-Blow Molding
Computerized: Computerized
Certification: ISO9001:2008
Raw Material: PE/PP/PS/PETG/PVC/EVOH/PC
Hong Kong DeKeWei Machinery Group is a professional manufacturer who dedicates itself to research, develop and manufacture full automatic extrusion blow molding machine and its auxiliary equipments. Our group's factory, namely Dongguan Jinjun Machinery Co., Ltd. Was established in 1999 in Dongguan City, Guangdong Province, China.
Our factory covers an area of 16, 000 square meters, and has automatic processing equipments such as CNC turning-lathe, CNC processing center, imported inner outer round grinding machine, automatic sheet metal coating production line. Our production capacity is 300 blow molding machines, 400 leak testers, 200 plastic bottles bagging machines and others.
We insist strict implementation of ISO9001 quality certification system, and can provide customers with comprehensive technical support and services. We have become one of the leading suppliers of automation solutions for the blow molding industry. We are the blow molding and packing solutions supplier to some famous international brands including Shell Group, bp, Caltex, Sinopec, Mobil, P&G and Unilever.
Our reputation for professional sales force, knowledgeable application engineers, efficient project teams, and skilled service technicians makes us a winning combination.
