Main Features

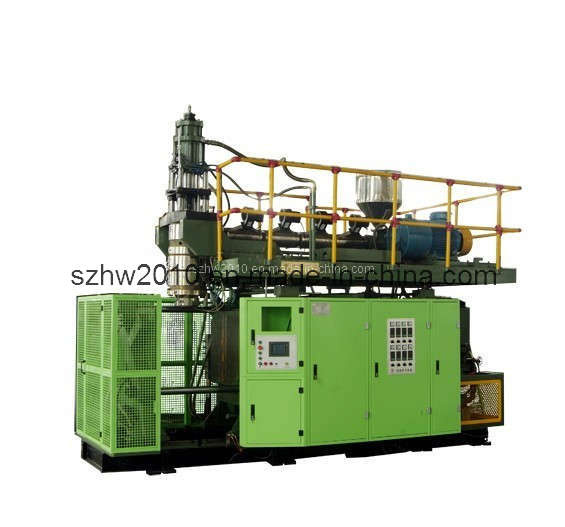

The series include HWB80, They can be used to produce big hollow plastic products, such as gas tank, tool box and so on.
1) Clamping device: X-Axis construction, good rigidity, the space for mold is generous and mold changing is easy.
2) Die head: Adopt the principle "first in, first out" to keep even thickness of parison and high surface quality.
3) Operation is easy; Servicing is convenient, with a high degree of automation.
The HWB series is composed of clamping device, die head, extrusion system, hydraulic system, framework, pneumatic system, cooling system, electric control system and so on. There are robot, multifunctional bottom blowing device, parison controller, mechanical ejection, and hydraulic ejection that can be selected by customers.
|
Product max volume(L) |
25(30) |
|
Diameter of screw(mm) |
80 |
|
L/D |
25 |
|
Plasticizing capability(kg/h) |
100 |
|
Mold dimension(W*H)(mm) |
800*750 |
|
Mold stroke(mm) |
270-820 |
|
Mold dimension(W*H)(mm) |
600*750 |
|
Mold thickness(mm) |
290*380 |
|
System pressure(Mpa) |
12 |
|
Clamping force(kn) |
240 |
|
Accumulator volumes(L) |
4.6 |
|
Max diameter of die head(mm) |
250 |
|
Bottom blowing lifting stroke(mm) |
250 |
|
Blow pin lifting stroke(mm) |
150 |
|
Extrusion stroke(mm) |
140-350 |
|
Framework lifting stroke(mm) |
350 |
|
Extruder heating power(kw) |
19 |
|
Die head heating power(kw) |
18 |
|
Extruder motor power(kw) |
37 |
|
Oil pump power(kw) |
18.5/22 |
|
Servo motor power(kw) |
4 |
|
General power(kw) |
100 |
|
Average consumption power(kw) |
40 |
|
General dimension(L*W*H)(M) |
4.4*2.6*3.8 |
|
Weight(T) |
10 |
Suzhou Huawang Machinery Co., Ltd. is a professional manufacturer of plastic extrusion blow molding machinery. Our company is located in Zhangjiagang, which is a well-know international garden city in Jiangsu Province, China. We enjoy a convenient location and we are near Shanghai, Suzhou, Wuxi and Changzhou.
Our company has a modern factory and offices. We have many skilled employees engaged in the manufacture of our blow molding machines and we pay particular attention to technical innovation and employee training. We strive to become an international enterprise in order to meet high quality requirements of the international market.
We produce 3 series of automatic blow molding machines: HWB single stations, double stations and fixed open-clamping machines. We can design machines according to the requirements of our customers.
Our ambition is endless, and we endeavor to provide you with the best service. We will be your reliable partner to create a prosperous future!
