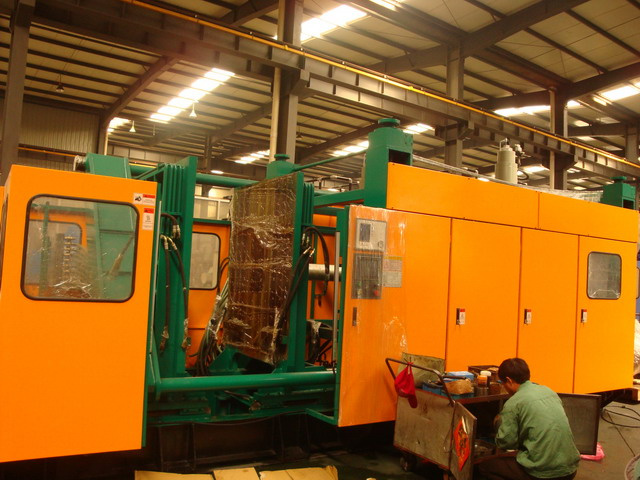

Suitable material PP, PE
Capacity(Max) 1) liters 250
Extruding motor power Kw 132
Dry cycle time second 16
Extruding capacity1)2)3)4) Kg/hr 320(powder materiel), 450(grains material)
Weight of machine tons 38
Item |
Code Item |
Standard Code |
Manual |
Note |
Extruder
(Main extruder)
|
Max. Capacity |
250L |
|
|
Main screw |
φ120mm |
High efficiency of mixing |
|
Screw L/D |
32: 1 |
|
|
Screw material |
|
38CrMoALA |
|
Max. Extruder consumption |
320KG/Hr |
Take EHMWDPE for example, change with material density |
|
Twisting transition method |
Electrical machinery, Gear box, Leather belt transmission |
Hard gear surface decelerator |
|
Driving motor |
132KW |
|
|
Screw rotate speed |
5---60r/min |
|
|
Ahead/back adjusting |
Yes |
|
|
Up/down adjusting |
Yes |
|
|
Temperature control zone |
6 |
JapanMTSUBISHI |
|
Heating power |
3φ16.2KW |
|
|
Cooling for blower |
6 |
|
|
Cooling function |
Yes |
Cooling water |
|
Clamping unit (Mold opening/closing unit) |
Structure |
|
With patented TONGDA two-bar timing clamping structure in high speed and high force, to achieve quality products.
|
|
Clamping directions |
Ball rail |
for high precise location for longer service life. |
|
Clamping speed |
250mm/sce;
15m/min |
|
|
Platen dimension |
1320*1650 mm |
(W*H) |
|
Max. Mold dimension |
1100*1720 mm |
(W*H) |
|
Mold opening stroke |
1000 mm |
|
|
Platen distance |
800~1800 mm |
Min.~Max. |
|
Clamping force |
770 KN |
|
|
Mould thickness scope |
810~1000 mm |
|
|
Fixing pattern of mold |
Mold press platen |
|
|
Mold opening/closing stroke control |
Inducing Switch+moving |
Discriminate mold opening/ closing end, mold opening/ closing slow speed, |
|
Light
Electric
Safety protect |
|
TaiwanFOTEK |
|
Die head
|
Form |
Accumulator |
First in, first out |
|
Material |
|
38CrMoALA, inner mirror treatment |
|
Accumulator volume |
22L |
|
|
Output of injecting |
16.5Kg |
HDPE, density: 0.75g/cm 3 |
|
Die dimension size |
φ120~ 620mm |
Min.~Max. |
|
Heating method |
|
Stainless steel heating ring, precision + 1% |
|
Temperature control zone |
6 |
|
|
Blow-air |
Yes |
|
|
Adjusting of parison thickness |
Yes |
MOOG 100-point |
choose |
Injecting stroke control |
|
Accumulator electronic ruler + limit switch |
|
Adjusting method of thickness |
Inner mold adjusting |
|
|
Adjusting output at axial direction |
+ 5mm |
|
|
Injecting pressure |
75~140mm |
TongDa 10-point pressure adjusting control |
|
Max. Injecting speed |
1.6kg/sec |
Not sure |
|
Top blowing |
Blow-air control method |
|
Discriminate high/low blow-air |
Choose |
Side blowing |
Blow-air control method |
|
Discriminate high/low blow-air |
Choose |
Bottom blowing |
Blow pin stroke control |
Inducing switch |
Discriminate blow pin up/down end |
Choose |
Blow-air control method |
|
Discriminate high/low blow-air |
Choose |
Blow pin cooling function |
Cooling water |
1-in 1-out cooling system |
Choose |
Blow pin supporting material |
Yes |
Changeable |
Choose |
Adjusting of blow pin position |
|
Ahead/back, left/right, up/down adjusting |
Choose |
Mechanical hand |
Running method |
|
GermanyFESTO |
Choose |
Direction control |
Ball rail |
High precise and speed |
Choose |
Electric system
|
Temperature control |
MITUSBISH |
MITUSBISH, PID control |
|
Load protection |
|
|
|
Movement control |
MITUSBISH PLC |
|
|
Operation interface |
Human-machine interface |
TaiwanHITECH |
|
Time setting |
Touch screen |
|
|
Oil pressure system
|
Main motor |
45KW |
|
|
Main oil pump |
|
American DENISON |
|
Movement control method |
Proportion pressure control |
0~999 |
|
Direction control |
|
TaiwanDONGFENG or JEOUGANG |
|
Max. Pressure |
145kg/cm 2 |
|
|
Air pressure system
|
Direction control |
|
TaiwanAIRTEC |
|
Pressure control |
Separated |
|
|
Max. Pressure |
8kg/cm, 1.6m 3 /min |
All air pipes are connected by PU pipe |
|
Other material
|
Lubrication way |
|
|
|
Oil pressure cooling |
|
Cooling effect is achieved by oil pressure cooling |
|
Mold cooling |
|
Separated cooling water resource, use 5-in 5-out fix (single side) |
|
Gear box, hopper place, die dimension cooling |
|
Use separated cooling water circuit, insure cooling effect |
|
Overall dimension |
L*W*H |
8000*2900*5500(mm) |
|
Weight |
38TON |
|
|
