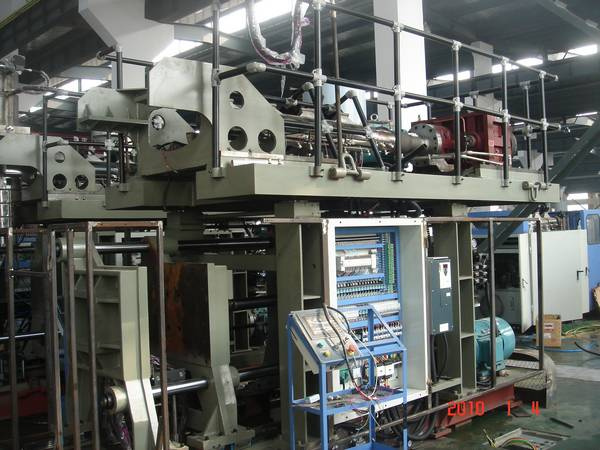

Features:
1)For packaging from 5liters to 18 liters capacity
2)Electric system: Mitsubishi PLC from Japan and human-machine
Parameters Unit Specifications
Max. Product Volume L 18
Production Capacity (Dry Cycle) PC/h 700 mold*2
Max. Die Head Diameter mm 145
Main Screw Diameter mm φ 90
Main Screw L/D Ratio L/D 25
Plasticating Capacity Kg/h 150
Max. Extruding Power KW 45
Mold Thickness Range mm 245-360
Max. Size of Mold (width*height) mm 610*450
Clamping Force KN 158
Size of Machine (length*width*height) m 4.95*4.2*3.1
Max. Total Power KW 110
Weight of Machine T 13.8
Zhangjiagang Faygo Union Science Co., Ltd. was established in 1999. We engaged in plastic machinery, beverage machinery, air compressor and blow moulding machines, such as plastic pipe extrusion lines, corrugated/ spiral pipe extrusion lines, kinds of sheet production lines, plastic profile production lines, wide door panel production lines, plastic board production lines, plastic recycling machinery, water/ fruit juice/ tea/ gas containing beverage wahing, filling, and sealing production line, high/middle/normal pressure air compressor and blow moulding machine for different bottles.
We are committed to the operational principle of "high quality products, star grade service" in order to ensure complete customer satisfaction. Relying on our experienced R&D team, we have developed a good market base for our machinery and products.
In addition to our well-equipped facilities and excellent quality, we firmly believe that customer service is more important than sales. We offer our customers the best technical plans, superior products, and perfect after-sales service to provide total customer satisfaction.
Welcoming distributors and end-users around the world to cooperate with us, we look forward to receiving your detailed inquiries and get mutual benefit cooperation in the near future.
