Blowing Machine for PE PP PVC

Blowing Machine for PE PP PVC
Price: US $ 19900/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T

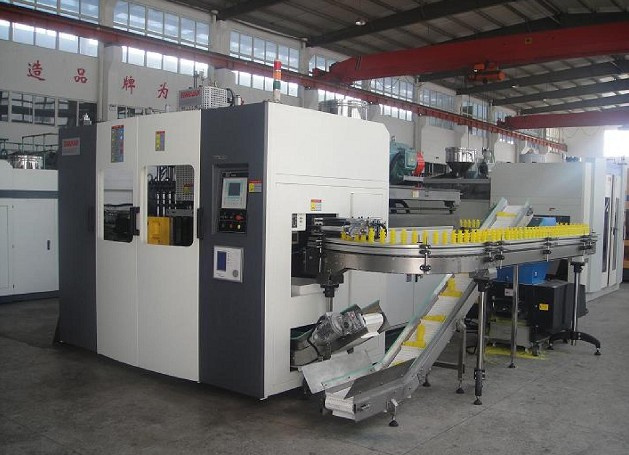

Automatic Extrusion Blow Molding Machine

SLD blowing molding machine is a double station machine, and suitable for producing high quality container with medium output. With from one to six fold diehead, for use in the packaging of petroleum, cosmetics, chemicals, pharmaceuticals, food, toys and auto-parts. The clamping system is a high-precision single-station linear guide, extrusion system using a hard gear reducer and inverter imported from Japan. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve. The control system consists of PLC and Human-machine interface imported from Japan, an automatic temperature control module and imported electrical part.

Advantages of automatic extrusion blow molding machine:
1. Machine platen can be moved down & up.
2. Machine platen has been strengthened.
3. All tubes and lines are located in good order.
4. Mold-moving stand is in box shape. It can make movement more stable and avoid distortion.
5. Tie bars are strengthened to make movement more stable

6. Mold-closing and mold-moving cylinder has been equipped with joint bearing. It can help protect mold-closing and mold-moving cylinder.
7. New blow construction. It can blow vertically and even blow from certain angle.
8. Blow construction has connected to exhausting air pipe. It can make product cool down more quickly.
9. Machine is with auto deflash
10. Machine can be connected to conveyor to carry the slitter edge to crusher to be reused.

11. Machine can be connected to conveyor to carry out bottle and connecto the filling machine directly.
12. Machine can be equipped with robot arm to take out the bottle.
13. Machine can be equipped with circle-type cutter to trimmer the bottle with foil-sealing type.
14. Mold platen has been professionally designed in construction and shape to keep stable.
15. New and safe machine door.

16. Machine is equipped with reduction valve in the mold-moving parts. It can make mold move more quickly and more stably.
17. Machine is equipped with manual adjuster to adjust the position of mold and blow pin. It make the adjustment more conveniently.
18. Screw stand is of high rigidity
19. Screw can be adjusted forward and backward, leftward and rightward.

Advanced processing equipment:
Introducing advanced technology form Germany, Italy, Japan etc.
Involving advanced design and production of super large-scale blow-molding machine and engineering management capability.
Holding over 40 items Patent Technologies.
After sales service:
With good brand reputation and attitude of customer-centric, we invite special technologists responsible for after sales.
Service hotline is 24-hour on call.
Fast response: Domestic call is handled within 12 hours.
International call is handled within 20 hours.
Prod Model: TOPS-JR20SC
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wrranty: One Year
Bottle Material: PE, PP, PVC
Bottle Sizes: 50ml to 2000ml
Way Of Control: PLC Control
Type: Extrusion Blow Molding Machine
Raw Material: PP
Making Method Of Parison: Extrusion-Blow Molding
Automation: Automatic
Computerized: Computerized
Certification: ISO9001:2008
Zhangjiagang Shilong Machinery Co., Ltd. is a professional manufacturer and exporter in Tyre recycling machinery in China. It is located in Zhangjiagang city which is near from Shanghai, which enjoys good transportation by all means of express way, and rivers.

Our main products:
1. Tyre shredding line (shredding, wire separating, fiber separating, classification)
2. Devulcanizer
3. Open mixing milling machine
4. Project design & guidance for the production of reclaimed rubber from any waste rubber products to get the high quality reclaimed rubber
5. Agent/Marketing for the reclaimed rubber in China
6. Plastic pipe welding Machine
7. Color Steel Coils

The latest technology, superior quality, and considerate after-sale service make us form specific advantages over market competitions. The products have been marketed not only the inland of China, but also exported to dozens of countries such as Bulgaria, Poland, Brazil, Saudi, Mexico, India and many other country.

Sincerely invite all friends from both the overseas and domestic to our company for friends visiting and business talk.
