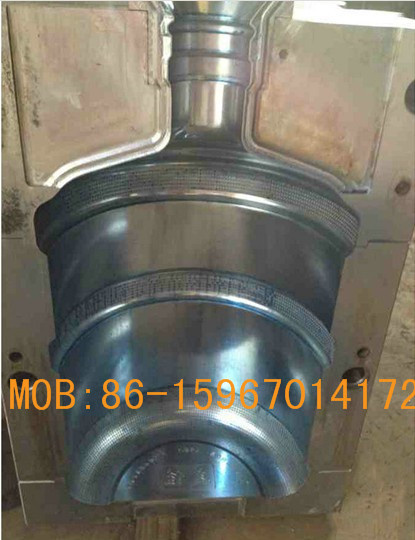

Blowing Mould

Blowing Mould
Price: US $ 280-300/Set
Trade Terms: FOB,CIF,EXW
Min Order: 1/Set
Pay Type: T/T,Western Union

Professional PET blowing bottle mould maker



Customized bottle mould, jar  Mould,container mould supplier





Specification:

1Bottle mould with high quality and competitive price.

2.OEM service avalible

3. wide ranges of bottle mould avalible.



We are professional mould maker with more than 15 years experience.

We can provide various kinds of mould or customize according to your requirments.

We can quote a price base on drawings or sample you provide.

Your satisfation is guaranteed.









A.Mould Features:

  1. Features of the preform mould. No cutting of valve gate is employed to reduce the labor cost.
  2. Advanced hot runner system assures lower level of AA value.
  3. Reasonable-designed cold water channels increase cooling effect and shorten the cycle

 B.Material

  1. The main components of perform molds are made of S136 material (Sweden ASSAB)
  2. The mold base is made of imported P20. plate method avoids corrosion efficiously and assures long life service of the perform molds.
  3. German Vacuum stove is imported for heat treatment of the components,which assures the hardness of components HRC45-HRC48.

C.Advanced Processing Equipment



Many machine tools are imported from America and Japan,such as Machine center,CNC lathers,EDM and so on . All of these increases processing precisiion, good interchangeability and low eccentricity≤0.10mm(preform length≤100).



D.Electric Heating Components

  1. German Hotset heating components.
  2. German intelligent temperature controller(PID continuous power controlling).
  3. Offering temperature controller and voltage controller according to customers'requirement.

E.Perfect Inspection Method.



Inspection tools include projector, hardness tester,stress tester, eccntric tester,electric balance and other inspection tools.



F.After-Sales Service



Techinologists professional in after-sales line and excellent credit assures  stable operation of the machines.





Customized jar Preform Mould supplier



Descriptionplastic injection mould of PET preform
Parts Name cavity&Core Plate&Tapping Hole hot runner cylinder reducing elbow nozzle head Intermediate Plate
Material35Crmo(stainless iron) H13 3Cr13 SKH51 H13, copper 35Crmo, its hardness can up to 38 degree
 Production precess surface grinder, define super finish, assure the surface is to be smooth and straight; precision Boring Machine, CNC machining center production
Plastic materialPET
 Minimum order quantity 1 sets
 Mould life 2000000 shots
 Loading Port Ningbo or Shanghai
 Lead time45days
 Payment terms TT/LC
 Supply ability 500sets/year
Design softwareUG, MASTERCAM, CAD
Packing detailswooden case








Prod Model: 150855632
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Runner: Cold
Cavity: Multy
Package: Wooden Case
Moudling: Blowing
Application: Commodity
Product Material: Steel
Process Combination Type: Single-Process Mode
Method For Making Preforms: Extrusion Type
Extrusion Blow Molding Mould Application Type: Commodity Container
Function: Abrasion Resistance
Certification: SGS
Warranty: 24 Months
Customized: Customized
Condition: New
Taizhou Huangyan Xing Xi Te mould factory located in Huangyan district Zhejiang province--the hometown of the mould in China, specializing in PET preform mould, PP preform mould, PET preform mould with valve gate, PET preform mould with short tail, PET preform mould with long tail, mineral bottle preform mould, beverage bottle preform mould, edible oil bottle preoform mould, engine oil bottle preform mould, 3 gallon preform mould, 5 gallon preform mould, preform mould with different weight, preform mould with different length, preform mould with 1 to 96 cavities, cap mould, injection mould, water bottle mould, mineral bottle mould, shampoo and costmetic bottle mould, fruit juice bottle mould, oil bottle mould, jar mould, barrel mould and so on with modern technology and advanced equipments. For over 15 years diligent operation, we had established a mature one-stop service line from inquiry to after-sales service.

Xing Xi Te Mould uses the latest versions of PRO-E, U. G, Solid-work, auto-CAD to designfull 3D formats and uses the Mold-flow for the analysis of injection. With rich experience in designing, the design team has the ability to provide the financially feasible solutions to meet all the requirements of clients.

Our target is to be your business partner and provide you with complete solutions in high quality and compatible prices. Our founders' experience in mold design, mold manufacturing and injection molding process makes us a strong and reliable partner for you.

We do believe that only good quality molds with compatible prices would lead long term win-win cooperation.
