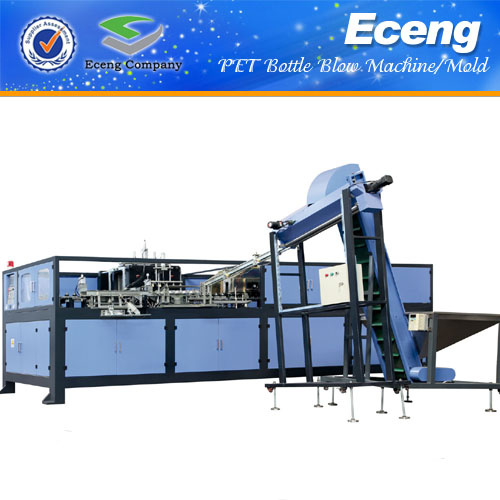

Blowing moulding machine spare parts
MODELS: YCQ-2L-4
Features:
A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: Automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting
O. Low rejection rate: Less than 0.3percent.
|
|
item |
YCQ-2L-4 |
Bottle type specification
|
cavity |
4 |
|
output(PCS/HR) |
3200-3500 |
|
Max. volume (L) |
2L |
|
Bottle mouth maximum overall diameter (mm) |
28-38mm |
|
Bottle biggest diameter |
100mm |
|
Bottle maximum height |
330mm |
Power specifications
|
Light tube quantity |
32pcs |
|
Light tube power |
1.25kw |
|
Maximum heating power |
40kw |
|
All electric machine installation |
43kw |
|
Actual consumption |
21.5kw |
Air pressure specification
|
Work pressure |
7-9kg/cm2 |
|
Low-pressure gas consumption |
1600Ltr/min |
|
Blow bottle pressure |
25-35kg/cm2 |
|
Higher -pressure gas consumption |
3000 Ltr/min |
Frozen water specification
|
Work pressure |
5-6 kg/cm2 |
|
Temperature range |
10 |
|
Consumption |
8000kcal/hr |
|
Frozen water flow |
88Ltr/min |
Machine specification
|
Size of the machine |
4.5x1.6x1.9 (m) |
|
Weight of the machine |
3.5ton |
Our company, Zhangjiagang Eceng Machinery Co., Ltd., is specialized in manufacturing PET bottle blowing machine and blow molds...etc. We dealed in this field for years, and have gained well-known reputations by our customers who are spreading in almost the whole world. It' S needless to say that our products are with superior quality and the strict Q. C. Made by our experienced engineering group. To respect customers as our good friends and try our best efforts to make much closer relationship are always our main purpose of doing bussiness. We earnestly hope that you will become one of our members.
