Screw/bolt making machine ( thread rolling machine ) of precise design, high speed, easy operation and competitive price

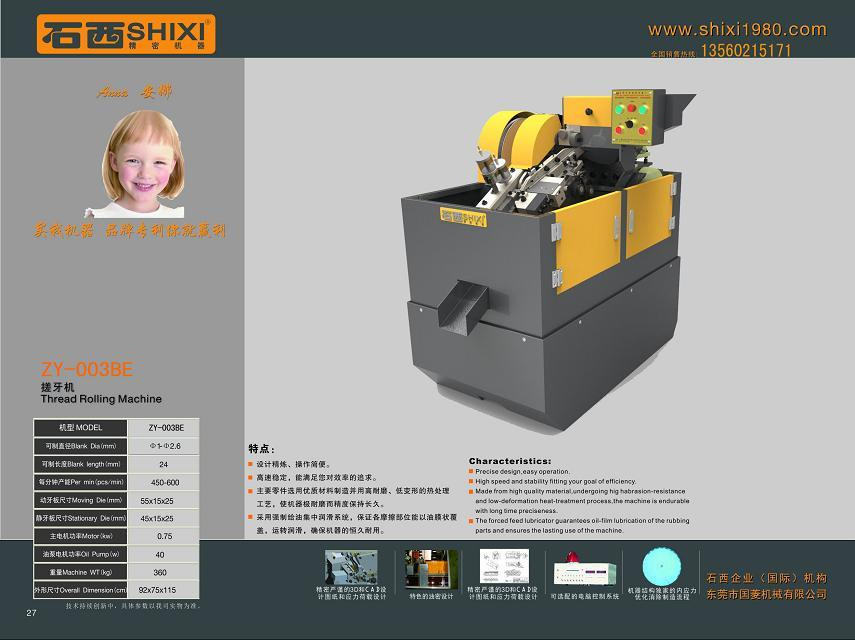

Screw/bolt making machine ( thread rolling machine )
Features:
1. Precise design, easy operation.
2. High speed and stability fitting your goal of efficiency.
3. Made from high quality material, undergoing high abrasion-resistance and low deformation heat treatment process, the machine is endurable with long time preciseness.
4. The forced feed lubricator guarantees oil-film lubrication of the rubbing parts and ensures the lasting use of the machine.
Specifications:
MODEL |
ZY-003B |
ZY-004AE |
ZY-004BE |
ZY-3/16E |
ZY-3/8B |
Blank Dia. (mm) |
Φ1-φ2.6 |
Φ1.7-φ3 |
Φ2.6-φ4 |
Φ3-φ6 |
Φ5-φ10 |
Blank Length (mm) |
16 |
25 |
40 |
55 |
16-100 |
Capacity (pcs./min.) |
400-500 |
280-380 |
235-280 |
128-172 |
85-90 |
Moving die (mm) |
55×15×20 |
80×20×25 |
80×20×40 |
105×25×55 |
165×25×105 |
Stationary Die (mm) |
45×15×20 |
65×20×25 |
65×20×40 |
90×25×55 |
150×25×105 |
Motor (kw) |
1.1 |
1.5 |
1.5 |
4 |
7.5 |
Oil Pump (w) |
40 |
40 |
40 |
40 |
370 |
Machine Weight (kg) |
300 |
500 |
900 |
900 |
1800 |
Overall Size (cm) |
143×100×145 |
160×112×120 |
110×60×106 |
138×70×132 |
225×155×160 |
|
Option |
Counter |
|
Shixi Enterprise (International) Organization was established in 1980. We are a united economic enterprise specializing in the R&D, manufacture and marketing of various high-precision machinery and parts. We have a number of subsidiaries including Dongguan Guoling Machinery Co., Ltd. And Dongguan OVK Optics Technology Co., Ltd. Read on to learn more about our infrastructure.
Dongguan Guoling Machinery Co. Ltd specializes in developing and manufacturing screw/bolt-making machines. The products include 2-die 3-blow cold formers, heading machines, thread rolling machines and other processing equipment. The machines are reputable for excellent performance, high precision, efficiency, stability and long-life span. Our non-clamp 2-die 3-blow cold formers developed in-house were awarded the Special Prize of New Superior Products by China General Machine Components Industry Association and the Gold Prize in the 16th National Invention Exhibition.
We perform comprehensive QC in the whole production process from raw material sourcing to finished product delivery. Our strong R&D team ensures that all our products are reliably compliant with CE standards, and our strong capability keeps us in a leading position in selling precise components
