Bottle Blowing Machine (KZ)
| Price: |
Negotiable/Piece |
| Trade Terms: |
CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union |

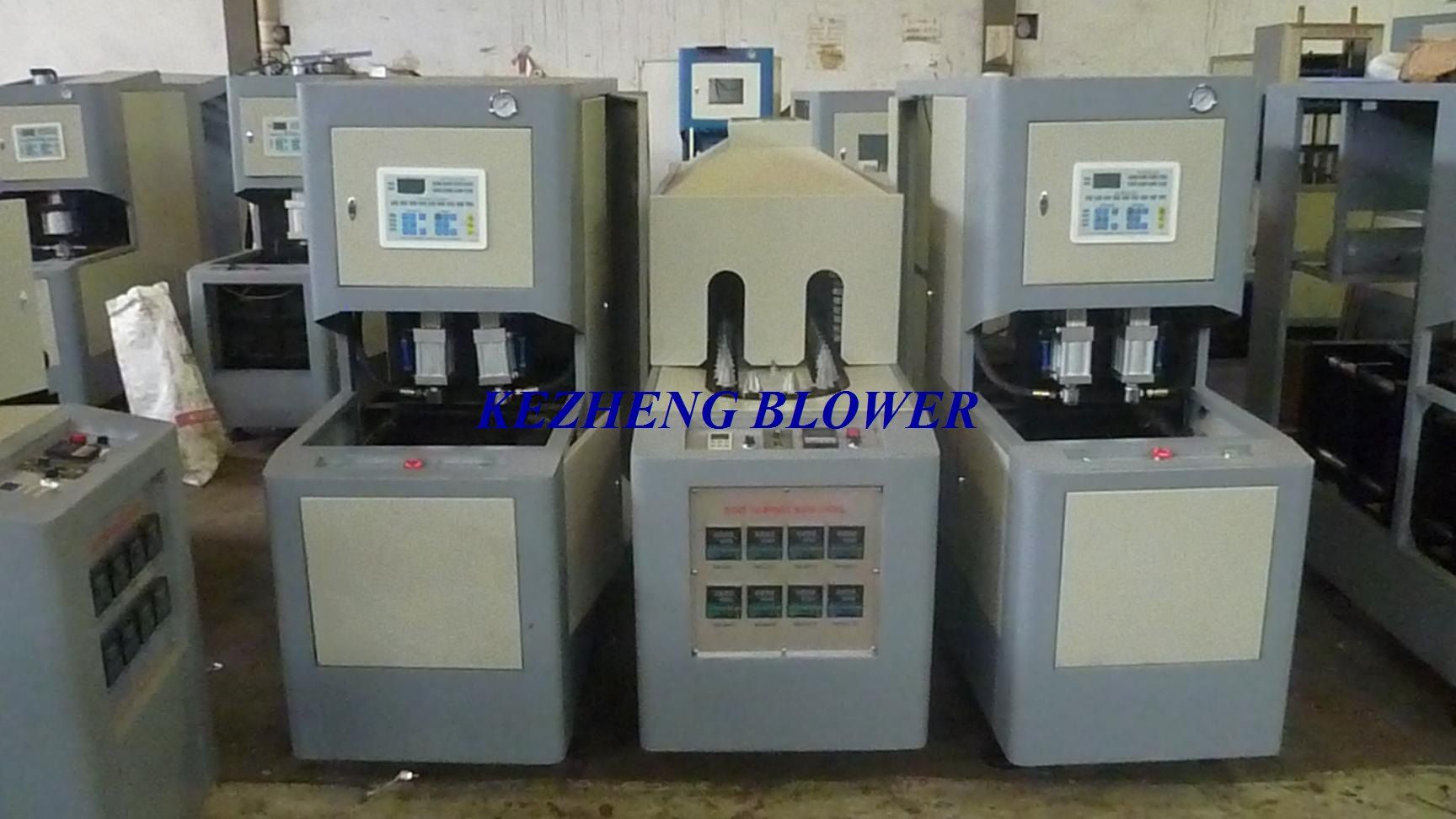

JD88-A Two step semi-automatic heat-resistant bottle blowing machine is used to blow the plastic container within 2L.
Semi automatic bottle blowing machine is the one controlled by the computer with rotary infrared oven heating...This series bottle blowing machine is specializes in the production of blowing the plastic container(PET/PMMA/PS/PP) within 2L which is heat-resistance and superior difficulty.
It has the higher air pressure, big claimping force, small size. Low energy consumption rate, easy to operate and so on.
|
S/N |
Item |
Unit |
Technical Data |
|
1 |
Raw material |
|
PET/PMMA/PS/PP |
|
2 |
Working Pressure(Air) |
Mpa |
0.7-0.9 |
|
3 |
Blowing pressure |
Mpa |
0.9-3.0 |
|
4 |
Voltage/Frequency |
V/HZ |
220V/380/50HZ.60HZ |
|
5 |
Rated power |
Heater |
Kw |
4(220V) |
|
Air Compressor |
Kw |
11(380V) |
|
6 |
Max mould effective
dimension(LxWxH) |
mm |
335x335x220 |
|
7 |
Mould opening stroke |
mm |
170 |
|
8 |
Max mould thickness |
mm |
250 |
|
9 |
Center distance between two cavities |
|
mm |
80-240 |
|
10 |
Volume of product |
ml |
10-2000 |
|
11 |
Max stretch length |
mm |
400 |
|
12 |
Clamping force |
KN |
50 |
|
13 |
Capacity |
Pcs/H |
400-900 |
|
14 |
Machine Dimension |
Main machine |
mm |
1600x600x1500 |
|
Heater |
1750x600x1450 |
|
15 |
Machine weight |
Main machine |
Kg |
500 |
|
Heater |
200 |
|
16 |
Air Compressor |
Dimension(LxWxH) |
mm |
1700x670x1220 |
|
Weight |
Kg |
410 |
|
17 |
Air Filter |
Dimension(LxWxH) |
mm |
250x250x600 |
|
Weight |
Kg |
15x2Pcs |
|
18 |
Frezzed Dryer |
Dimension(LxWxH) |
mm |
890xx550x1000 |
|
Weight |
Kg |
175 |
|
19 |
Temperature range |
|
15-110(PET)
15-180(PMMA.PS.PP) |
| Prod Model: |
KZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Zhangjiagang Fengcheng Machinery Manufacturing Co., Ltd. Deals in importing and exporting Machinery. Our company is located in the famous economy booming, culture rich and cleanest city - Zhangjiagang, eastern littoral of China, which links to Shanghai in the east, Suzhou, Wuxi and Changzhou in the west and south. It is convenient in water and road transportation.
We have the first class developing and design system and richly experienced technicians. We mainly manufacture Single/Double plastic extruders, the whole production lines for HDPE silicon core pipes, PPR pipes, lacunars pipes and multiunit tubes, Double plastic extrusion pipes, tubes production lines, prilling production lines, thermostat cooling and dry lines, loading materials machines, grinder and breakers lines, compounding mixing lines, water temperature controlling systems for forming plants, dehumidifying and dry lines and other auxiliary devices. We also domestic and overseas the turnkey projects for various plastic machines.
We are sincerely providing customers automatic washing, filling and sealing assembly production lines for purified water, spring water, fruit juice drink, lactic acid drink, gas containing drink, wine, flavoring and strong tea drink. We also provide the while set water treatment production lines for automatic washing, filling, and sealing for barrel drinking water. We can meet customers' special needs to make beverage machinery within their different production conditions and capability. With excellent performance, good service and advanced technology of the world, our products are delivered to every part at home and abroad. They are fully trusted by customers.
The main objective of our company is to supply first class quality goods. We will apply ourselves to produce suitable machine matched with different requirements for customers, with our rich technology and advanced processing techniques.
During development, our company insists on the management principle of people oriented, market competition is people competition and focusing on training employees' skill and strengthening their principle of service. We are adhering to the tenet of setting up a good working condition for employees who can develop our company.
We seriously promise to provide high quality goods, professional service and advanced technology to all of our customers. Our company would like to establish windowing cooperative relationship and get bright future with worldwide friends on the basis of mutual benefits.
As we have different series machines, we export all machines under Zhangjiagang Kezehng Trading Co., Ltd company ahead. We are the same company, please kindly note.
