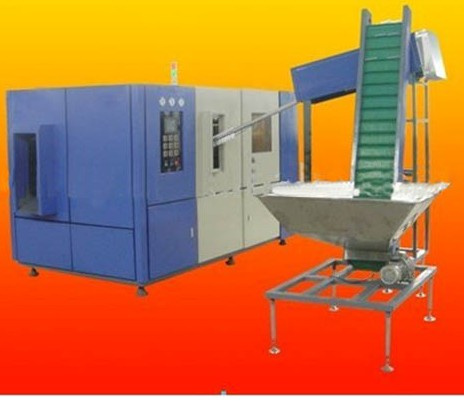

Bottle Blowing Moulding Machine (HY-A6)
| Price: |
Negotiable |
| Min Order: |
1 |
HY-A6 is the fastest liner blow molding machine in mainland of China by now. HY-A6reaches around 6000BPH for 350ML bottle. Its baking tunnel is separated from the blow station so that time for mold opening is shortened with a result of speedy blowing and high output, damage to machine is lessened so as to keep reliable performance and prolong service life, as well as machine runs more smoothly and steadily.
HY-A6 automatic stretch blow molding machine is equipped with patented preform loading system, which consists of two manipulators: Rectilineal manipulator and overturning manipulator. The rectilineal manipulator moves preform with neck up to the preform holder, after heating, the overturning manipulator grips heated preform and overturn 180 put preform to blow station with neck down. After stretching and blowing, the bottle is taken off by overturning manipulator. The specially designed preform loading & bottle discharging system avoid possible damage to preform & bottle during transportation.
HY-A6 is controlled by PLC. The whole process from preform feeding to bottle discharging is completed automatically with advantages of labor saving and no pollution. HY-A6 consists of three main parts: Preform loading system, Heater channel & blow station.
Control system
| Prod Model: |
HY-A6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Material: |
Plastic |
| Shaping Mode: |
Blowing Mould |
| Product: |
Pet Bottle |
Established in the year of 1992, Henan Tianrong Machinery Import & Export Trading Company Ltd. (It's original name was Henan Tianrong Mining Co., Ltd. ) is located in Lianchi Industrial Park, Shenqiu County, Henan Province. In 2006, Zhengzhou branch office was set up, and at the same time, our new factory was opened in Xinzheng, Zhengzhou City, possessing convenient transportation and high quality talents, promising a prosperous business. With more than 10 years' manufacturing experience, our company now owns advanced technology and sophisticated equipment.
Since 1992, our company has begun to produce mining machines and mining machine accessories of "Jin Ge" brand. The production technology has got improved year by year and our managing scale is becoming bigger and bigger. By continuously renewing equipment, new products are increased more rapidly. Based on the principle of cooperation and pursuing mutual benefits, we provide technical supports and capital investment to make cooperation with several famous enterprises, as a joint-venture company to produce mining equipment and accessories. By such corporations, we have made great achievement and also we can provide diversified services to our customers. Now our company is becoming the key enterprise in Henan Province.
Now, our working staff of engineers and technicians has more than 100 persons. Among them, there are 3 senior engineers, 15 engineering technicians, and 12 quality inspectors.
Covering an area of 16, 000 square meters, and 8, 000 square meters of workshop area, we have set up mold cast workshop, steel rolling work shop, forging shop, metal working shop, heat treatment shop and other more. In our workshop, there are various processing machine tools and equipment with special functions, high-efficiency and high-precision. Such equipment and machine tools are specializing in producing all kinds of rock drilling tools, fully mechanized cutting machine series, electric rock drills for coal mining series, MQS-50/1.7 portable pneumatic roof bolter drills, MQTB-80/2.0 Pneumatic roof bolter drills, MQS-60/2.1 portable pneumatic roof bolter drills, MQT-90/2.1 Pneumatic roof bolter drills, MQT-110/2.5 pneumatic roof bolter drills, MQT-120/2.7 pneumatic roof bolter drills, MQT-130/2.8 pneumatic roof bolter drills, and other series drilling machines, as well as the mining conveying machinery and accessories. We also can process various non-standard mining accessories.
"Quality is the life of an enterprise and credit is the foundation of a company" is rooted deeply in the hearts of Tianrong working staffs. We strive to offer customer best products, good credit, top-class service and high quality.
Credit cooperation is the base for development and customer satisfaction is the eternal pursuit of Tianrong Company.
