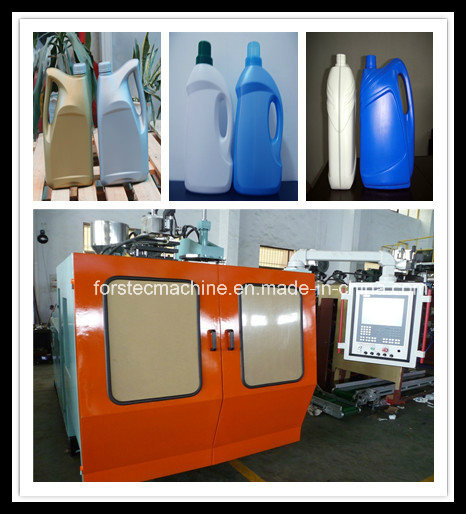

1.Specifications of Bottle Extrusion Blow Moulding Machine:
1).Speciliazed in bottle extrusion blow molding machine for more than 15 years experience.
2).With deflashing system on mould or equiped on the machine itself.
3).More than 20% higher effiency than others
4).Imported brand components
5).Certificate: ISO9001.CE, SGS.
6).Screw diameter: 70mm
7).Max capacity: 5L, double station
2.Main Characteristics for Bottle Extrusion Blow Moulding Machine:
1).Double station, one layer, 65mm screw with 13.8kw heating power for material of HDPE,PP,ABS and etc.
2).Power supply: 380VAC, 50Hz (depending on client's county ).
3).Different Die Head for Choosing:
One die head (5L): 5L bottle around 130 bottles per hour
Two die head (2L): 2L bottle around 220 bottles per hour
4). Center Distance: Two Die head: 160mm,Three Die head: 110mm,tetra-die head: 85mm
5). Auto matic Deflashing system: Neck/ handle/ bottom deflashing.Fully automatic.
6). MOOG 100 Points Parison Controller (Optional)
3. Advantages of this Bottle Extrusion Blow Moulding Machine:
1). Adopt energy-saving system which can increase the 20% efficiency.
2). The capacity is 10% higher than some others.
3). Power consumption is about 10% lower.
4). All process are well computerized which makes the operation more conenient.
5). Imported hydraulic components which gurantee the stable working for long time.
6). This machine adopt the directional proportional valves which can gurantee the stable working process.
The parameters for this Bottle Extrusion Blow Moulding Machine:
extruder |
|
1 | Screw diameter | 70mm |
|
2 | L/D ratio | 24:1 |
|
3 | Screw speed | 8-90r.p.m. |
|
4 | Drive motor | AC 15Kw 3 Phase asynchronism motor |
|
|
5 | Inveting drive | Emerson,America |
|
|
6 | Heating zone with cooling fan | 3 ZONES |
|
|
7 | Output/Throughout | 70-80Kg/h(HDPE particle) |
|
|
8 | Heating capacity | 3X4.73(=14.2 kw) |
|
9 | Vertical adjustment of head | 300mm |
|
10 | Right/Left adjustment of head | 20mm |
|
11 | Groove feed barrel cylinder | NO |
12 | Gear box | Hard gear decelerator |
|
|
13 | Safety precaution | Safety door and Safety switch |
|
|
|
|
|
DIE HEAD |
|
1 | Continuous extrusion | Central incoming |
2 | Design | First in, first out |
|
|
3 | Heating zone | 3 ZONES |
|
|
4 | Heating capacity | 5.7kw |
|
5 | Max die&pin diameter | 155mm |
|
6 | Die head axis with pre-blow | 12mm |
|
CLAMPING UNIT |
|
1 | Tie bar | C model double tie bar |
|
|
2 | Platen size | 330(W)X370(H) |
|
3 | Size of mold | 340×370mm |
|
4 | Clamping force | 68KN |
|
5 | Close/Open stroke | 150-500mm |
|
6 | Mold thickness | 205mm |
|
7 | Clamping stroke measurement | Proximal sensor TAIWAN |
|
|
8 | High pressure | 12MPa |
|
9 | Support parts for platen movement | Moving and clamping axis |
|
|
Suzhou Forstec machinery Co., Ltd is located in zhangjiagang city Yangshe economic development zone.
We company is mainly dedicated to the production and trading issues for the blow molding machines. The machine is suitable for the production from 5 ml to 1000 litres of plastic bottles, bucket, cans, tool bag, car parts, unique shape insulating hollow seats, the car, tray, packaging barrels and hollow products. According to the need we can be configured single-mode head, dual mode head, three die head, four die head, six die, single, double, three, four, five, six layer modular top layer. For the users can make suitable for processing various special and special raw materials bottle blowing machines, blow molding blow molding machines. Such as PE, PP, PC, PA, PS, ABS, EVA, PETG, EVOH, PVDC, characterization, PPE, POM, TPE etc products of the production. The company product widely sales Britain, Australia, Brazil and 55 countries and the area, deeply trusted by customers domestic and abroad.
The company always adhere to the "collaboration, and the operation tenet" together with the customer, and the user, a hollow out, realize the development, improve the molding technology profession competitive power. At the same time the company always adhere to the "innovative design, fine manufacture, continued to improve, for global customers with first-class products and service" the quality idea, make product quality, provide satisfying products for market. Strive to continuing innovation and accumulation in outreach, LED by a combination of comprehensive form, the comprehensive strength of the modernization of the strong excellent enterprise.
