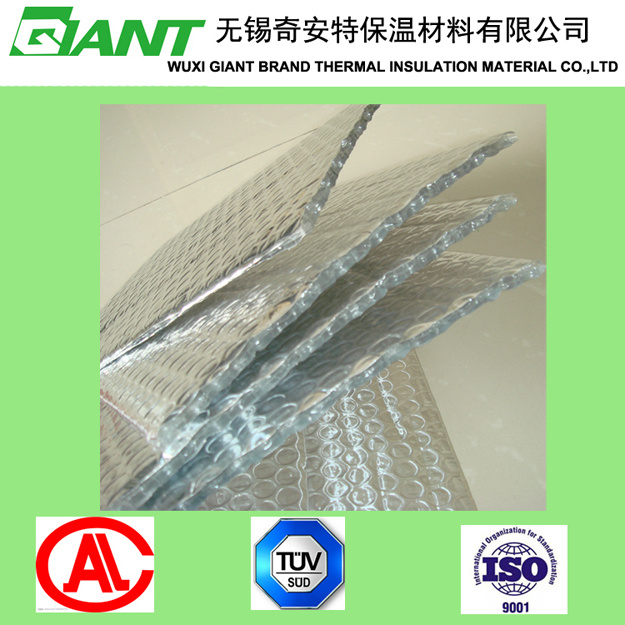

Bubble Foil Heat Insulation with aluminum foil and PE bubbleSpecifications
1 Single side aluminum foil insulation material 2 Max width:1.2m ,1.22m 3 For wall,ceiling,floor,factory building 4 ISO9000
1. Material structure as follows
AL/Bubble
AL/Bubble/AL
AL/bubble+bubble/AL
2. Size of bubble
10mm
Thickness: 3mm-8mm
3. Application
1. Pipe insulation, roof heat insulation, waterproofing membrane;
2. Travel mats, beach mats, camping moisture-proof pad;
3. Car sunshade, car cover, air conditioning covers, motorcycle sun-proof cushions;
4. Household appliances, precision instruments, high-grade porcelain and other crafts packaging
4. Benefits
Reflects 96% at least of radiant heat
Non-toxic / Non-allergic
Durable and lightweight
Does not compress, collapse or disintegrate
Easy to cut and install
Permanent and maintenance-free
Does not support the growth of mold or mildew
Not affected by moisture or humidity
5. Technical parameter
Properties | Test data | Unit |
Thickness | 3.5 | MM |
Weight | 250 | G/M2 |
Emissivity | 0.115 | COEF |
Thermal conductivity | 0.034 | W/M2 |
Apparent density | 85 | KG/M3 |
Reflectivity | 95-96 | % |
Water Vapour Transmission | 0.013 | G/M2 KPA |
Corrosion | no | |
Tensile strength(MD) | 79 | 25mm |
Tensile strength(TD) | 68 | 25mm |
WuXi Giant Brand Thermal Insulation Material Manufacturer Co. Ltd located at the beautiful and rich Yantze River delta. It's neighboring to the ChangJiang River in the north and the Tai La-ke in the south, which has a very superior geographical position and mostconvenient transportation.
Enterprises put into production in 2010, 20000 tons of rock wool (products) production line, product quality is stable, strong technical force, rock (mine) cotton blanket - forming, plank, insulation shell products, such as light density, low thermal conductivity, high temperature resistance, heat insulation, sound insulation, fire prevention, freeze protection as one of the characteristics, widely used in petroleum chemical industry, metallurgy, electric power, transportation, shipbuilding and other industries insulation, heat insulation, sound insulation engineering. Enterprises through the ISO9001-2000 quality system certification, has won the national association of noise insulation recommended units, oil and chemical heat insulation material recommended factory, the country's electricity industry insulation refractory charter suppliers, etc. The company adopts modern innovation mechanism system, the standardization of scientific management mode, a highly efficient team of elite, humane corporate culture connotation in the intense market competition strives for the survival by the change, and maintain the good momentum of sustainable development, a rising star in the industry in thermal insulation.
