Bus Seat Blow Moulding Machine Extrusion Blow Moulding Machine

Bus Seat Blow Moulding Machine Extrusion Blow Moulding Machine:
1). Blow molding machine experience of the engineer for more than 12 years
2). Machine produce the max for 60L jerrycan, public seat, plastic seat, drums and etc.
3). The capacity is about 55pcs/h.
4). The famous imported components for machine
5). Taiwan Yuken hydraulic valve for stable working
6). The deflashing system can be equiped according to customer's request.

2. Main characteristics of Bus Seat Blow Moulding Machine Extrusion Blow Moulding Machine(FSC90):
1). Accumulator head, single layer, the capacity is up to 60L jerrycan, drum, plastic seat, public seat.
2). It process the material as HDPE, PP, ABS and etc.
3). Power supply: 380VAC, 50Hz (depending on client's county ).
4). The machine is mainly composed of extrusion system, die head system, clamping system, hydraulic system and electrical systems

The general information for this Bus Seat Blow Moulding Machine Extrusion Blow Moulding Machine:
Extrusion system: Screw: Specially designed based on material's trait, High quality nitriding steel 38CrMoAlA, with nitriding surface HV≥ 800, brittleness≤ 2. Barrel: High quality nitriding steel 38CrMoAlA, with nitriding surface HV≥ 900, brittleness≤ 2.
Die head system: Accumulator die head, single cylinder, central injection, vertical fist in first out design, accumulator channel slick; Slip parts like injection piston and cylinder made with different material and technique, work balanced and reliable.
Clamping system: Fixed clamping system, double diagonal tie bar single cylinder central clamping, wider space for the mould, install and dismantle the mould easily, linear roll guide rail.
Hydraulic system: Adopted proportional pressure controlling, with hydraulic valve and pump of Taiwan Yuken, balanced and accurate action, prolonged useful life, sensitive response.

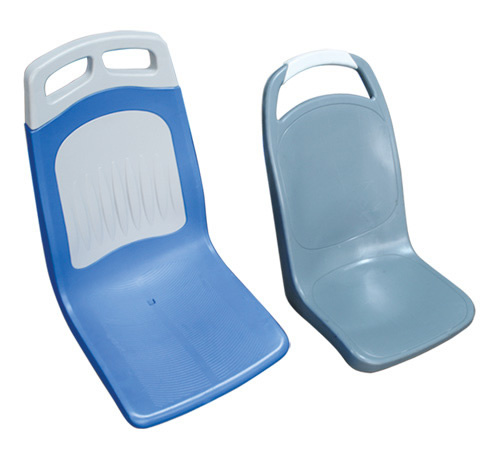

This Bus Seat Blow Moulding Machine Extrusion Blow Moulding Machine is mainly used to produce 60L drum, chemical drum and oil drum, plastic seat, plastic chair and etc. Some basic parameters are as follows:
1. Screw diameter: 90mm
2. L/D ratio: 30/1
3. Max capacity: 60L
Dry cycle: 180pc/h
Clamping force: 320KN
Platen open stroke: 450-1050mm
Plasten size: 900*880mm
Max platen size: 900*880mm
Oil Pump Power: 15kw
Extrusion motor: 37KW
Plasticizing capacity: 140kg/h
Heating zone: 4 zones
Extrusion heating power: 21.3kw
Power of Die heating: 21.4kw
Max die pin diameter: 350mm
Accumulator head capacity: 6.6L

3. Advantages of this Bus Seat Blow Moulding Machine Extrusion Blow Moulding Machine:
1). Adopt energy-saving system which can increase the 18% efficiency.
2). The capacity is about 55pcs/h which is15% higher than some others.
3). Power consumption is about 15% lower.
4). All process are well computerized which makes the operation more conenient.
5). Imported hydraulic components which gurantee the stable working for long time.

5. After-sale service:
1). Instruction for Installation and Debugging
Before delivery, FORSTEC takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
FORSTEC also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer of FORSTEC, provides the engineer with round-trip tickets, accommodation, vehicle and $55 per day salary.
2). User Training
Before delivery, FORSTEC will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3). Warranty Period
The warranty period for FORSTEC machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.

6. Main parameters for this Bus Seat Blow Moulding Machine Extrusion Blow Moulding Machine(FSC90):

extruder
1	Screw diameter	90mm
2	L/D ratio	24:1
3	Screw speed	50-85r.p.m.
4	Drive motor	AC 37Kw   3 Phase asynchronism motor
5	Inverter drive	America Amerson
6	Heating zone with cooling fan	4 zones
7	Output/Throughout	100(HDPE  particle)
8	Heating capacity	21.4KW
9	Vertical adjustment of head	400mm
10	Forward/Backward adjustment of head	400mm
11	Groove feed barrel cylinder	No
12	Gear box	Hard gear decelerator
13	Ladder and safety rails	fixed
DIE HEAD
1	Accumulator capacity	5L(3.75kgHDPE)
2	Design	First in, first out
3	Heating zone	4 zones
4	Heating capacity	21.3kw
5	Max die$pin diameter	350mm
6	Die head axis with pre-blow	80mm
7	Accumulator push-out stroke measurement	Transducer  Italy Gefran
8	Injection pressure	12Mpa
9	Extruder stop	HAVE
CLAMPING UNIT
1	Tie bar	Two tie bar
2	Platen size	880(W)X900(H)
3	Length of mold	410-510mm
4	Clamping force	230KN
5	Close/Open stroke	400-1050mm
6	size of mold	720×1200mm
7	Clamping stroke measurement	Proximal sensor TAIWAN RIKO
8	Hydraulic valve	YUKEN
9	Number of hydraulic cylinder	1
10	High pressure	14mpa
11	Support parts for platen movement	Guide
HYDRAULIC SYSTEM
1	Drive motor	AC 11Kw 3 Phase asynchronism motor
2	Hydraulic  valve	YUKEN
3	Hydraulic pump	Taiwan
4	Connector\Tuber	Japan PIONEER
5	Seal	Japan VALQUA
6	Oil tank capacity	400L
7	Operating pressure	14mpa
8	Cooling water for oil	fixed
9	Control of oil level & temperature	Checking oil temperature and abnormal alert be observed dipstick
