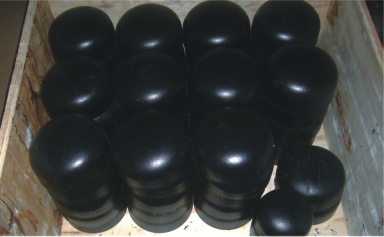

Carbon Steel Butt Welded Seamless Cap
Product Category: Caps
Description:
Product Name: Carbon steel cap
We supply carbon steel pipe fittings of different standards.
STANDARDS: ANSI B16.9 ASTM A234 WPB, JIS, DIN. ETC.
SIZE: 1/2"---48"
THICKNESS: STD, SCH40, SCH20, SCH60, SCH80, SCH100, SCH120, SCH160, XS, XXS, SGP, ETC.
Carbon steel butt welded seamless Caps is usually used for protecting the end of pipe and other fittings, so the shape is disigned according to the shape of pipe line. We also use caps to cut off the transition and the connection treat can be butt weld, socket weld and thread conection according to use requirements.
Nominal pipe
size
DN |
Outside Diameter at Bevel |
Length |
Limiting Wall
Thickness for
length E |
Series A |
Series B |
E |
E1 |
15 |
21.3 |
18 |
25 |
- |
- |
20 |
26.9 |
25 |
25 |
- |
- |
25 |
33.7 |
32 |
38 |
- |
- |
32 |
42.4 |
38 |
38 |
- |
- |
40 |
48.3 |
45 |
38 |
- |
- |
50 |
60.3 |
57 |
38 |
44 |
5.5 |
65 |
76.1(73) |
76 |
38 |
51 |
7.0 |
80 |
88.9 |
89 |
51 |
64 |
7.6 |
90 |
101.6 |
- |
64 |
76 |
8.1 |
100 |
114.3 |
108 |
64 |
76 |
8.6 |
125 |
139.7 |
133 |
76 |
89 |
9.5 |
150 |
168.3 |
159 |
89 |
102 |
11.0 |
200 |
219.1 |
219 |
102 |
127 |
12.7 |
250 |
273.0 |
273 |
127 |
152 |
12.7 |
300 |
323.9 |
325 |
152 |
178 |
12.7 |
350 |
355.6 |
377 |
165 |
191 |
12.7 |
400 |
406.4 |
426 |
178 |
203 |
12.7 |
450 |
457.2 |
478 |
203 |
229 |
12.7 |
500 |
508.0 |
529 |
229 |
254 |
12.7 |
550 |
559 |
- |
254 |
|
600 |
610 |
630 |
267 |
|
650 |
660 |
- |
267 |
|
700 |
711 |
720 |
267 |
|
750 |
762 |
- |
267 |
|
800 |
813 |
820 |
267 |
|
850 |
864 |
- |
267 |
|
900 |
914 |
920 |
267 |
|
950 |
965 |
- |
305 |
|
1000 |
1016 |
1020 |
305 |
|
1050 |
1067 |
- |
305 |
|
1100 |
1118 |
1120 |
343 |
|
1150 |
1168 |
- |
343 |
|
1200 |
1220 |
1220 |
343 |
|
|
|
|
|
|
|
C |
