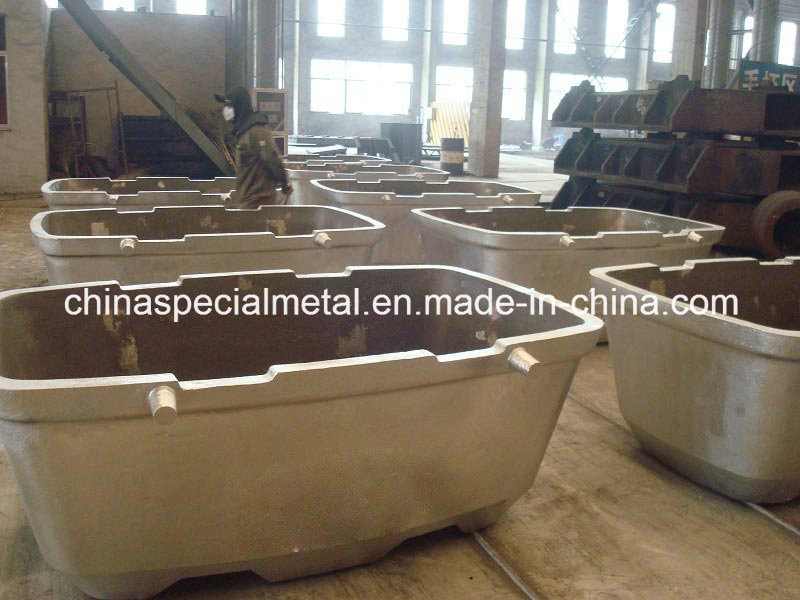

Cast Steel, Iron Skim Pot for Aluminum Ingots

Cast Steel, Iron Skim Pot for Aluminum Ingots
Price: US $ 1600-2000/Ton
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P

Sow molds, sow mould, skim pan are cast steel molds for the casting of aluminum ingot for remelting storage and, or transportation. Through our experience in designing durable castings, we CSM has expanded our products scope including Skim pan sets, sow moulds, dross containers and moulds. Dimensions and design can be customized to customer requirements, including the casting of customer's logo, and additional of feet and,or lugs for material handling.

Material
We CSM offer alloy steel sow molds which are developed to withstand the sever cast house environment ans is designed to endure both mechanical and thermal shock. The material is similar to ASTM A27 GRADE 65-35, ASTM A148 GRADE 90-60, CAST STEEL 1028, CAST STEEL AISI 8630.

Dimensions
The mold sizes listed in the following table will satifafy most requirements. The low profile design was developed to reduce the shrinkage cavity in the aluminum casting, ans is now widely used by most major producers. They can be also customized to your specifications.


Description
Outside mold dimensionInside mold dimensionApprox.
weight
WLHWLH
1200lb Low Profile44.3858.3811.3841.2554.259.381800lbs
1200lb Low porfile w/fork pockects44.3858.3812.1341.2554.259.382000lbs
1200lb high profile404018.19363616.191630lbs
1200lb high profile w/fork pockects404018.69363616.191750lbs
1500lb high profile48.3755.5613.7244.4451.5611.752100lbs
1500lb high profile w/fork pockects48.3755.5614.7244.4451.5611.752400lbs
2000lb high profile49.3856.8815.8845.3752.7513.882400lbs
2000lb high profile w/fork pockects49.3856.8816.8845.3752.7513.882595lbs
All dimensions are in inch.

 Production Process
1. Wooden pattern Production
2. Molding
3. Pouring
4. First cleaning
5. Heat treatment - grinding (inspection)
6. Rough machining (inspection)-finishing machining (inspection)
7. Packing-delivering



Quality Assurance
The fabrication route is governed by the provisions of the implemented Quality System ISO 9001: 2000. The standard documentation ensures the full traceability of every process step:
Manufacturer test certificates according to DIN EN 10.204 § 3.1 including chemical composition, mechanical properties and non-destructive examination;
Dimensional check supported with a "as-built" sketch;
Record of the heat treatment chart

Prod Model: Skim pan
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tolerance: DIN 1683 Gtb19
Inspection: Ut, Mt
Service: OEM, ODM
Certificate: En 1024 3.1
Application: Aluminum, Metallurgical Industry
Material: Cast Steel, Cast Iron
China Special Metal Group Limited (CSM), a supplier of metal material & machinery products, devotes to offer high quality of castings, high-precision machining products, welded fabrications and forgings to valued customers from all over the world. Meanwhile, we offer the design engineering and turnkey project as well.

Our group owns four mainly manufacturing bases. Casting bases in Xinxiang and Yiyang; The welding fabrication base in Wuxi; Special alloy base in Xi'an. Our Shanghai base is the commercial and engineering center. We have our own ISO 9001 certificate.

We have 2 sets of 30 Ton alkaline electric arc furnace; 8sets of transferring ladle with capacity of 35ton, 50tons, and 75tons; 2 sets of baked charter; 4 sets of large heat treatment furnace and the supporting facilities including oxygen generation station, air compression plant, natural gas station, CO station and 22 sets of lifting equipment machines. The lifting capacity reaches 200tons. We own 5 sets of large-scale molding equipment. Meanwhile, we also have the GS1000 vacuum direct reading spectrometer made by OBLF and other inspection equipments like carbon sulfide high-speed analyzer, microcomputer three elements of high-speed analyzer, digital ultrasonic flaw detector, multipurpose magnetic powder flaw detector such as chemical equipment, except that we also own leveraged universal strength tester, SAC thumping machine. Simulating the casting process by the CAE software to ensures the new quality level castings. All the castings are process by arc gouging, carbon dioxide gas gouging, shot-blasted in order to get the surface quality.

Our products include Metallurgical equipment, Cement & Mining machinery. The castings singe weight is up to 120MT. The main products are casting ladles, slag pot, ingot moulds, mill housings, chucks, girth gear & wheel for cement and mining machinery, grinding table and grinding roller for mills, case and covers for pumps, body and beams for all kinds of machine.
