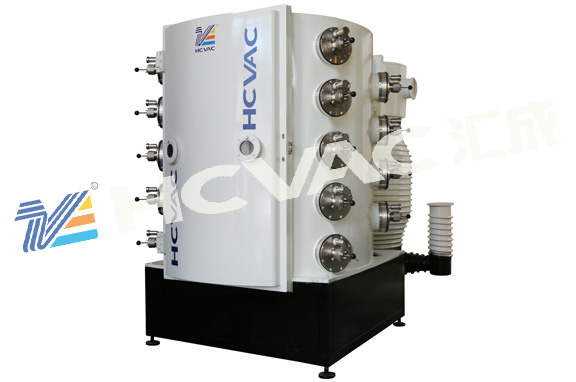

Cathodic arc PVD coating machine/cathodic arc PVD deposition machine
Poly Ion Metal Coating Machine is an ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate, great ionization rate, big ion energy, easy operation, low cost, large productive capacity, etc.
Characteristic: The principle of the electric arc is intergrating cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.
Applied industry: It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper, and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment
This machine is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about car wheels, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc.
Company introduction:
The coating experts of your own company: Full set solution for the coating production.
HCVAC can help you to enter the PVD coating easily by our vacuum coating machine and full range service. We will provide with most suitable technology according to your requirements.
We will make the special coating solution for each customer; Combine the full set production technics to meet your requirements, to ensure high efficiency of production.
We developed a complete after-sales system and effective service measures. Company now owns a professional after-sales service team with more than ten experienced engineers.
Please feel free to contact us for further information!
Contact: Lillian Yang
Mobile: 0086-13825720037
Specifications:
Mode
Dimension | LH-900 | LH-1100 | LH-1250 | LH-1600 | LH-1800 |
| 900*1000mm | 1100*1000mm | 1250*1500mm | 1600*1800mm | 1800*1800mm |
| Maily application | Metal decorative coating and Ceramic decorative coating |
| Coating mode and main confirguration | Eight multi-arc targets | Ten multi-arc targets | Twelve multi-arc targets | Twenty multi-arc targets | Twenty two multi-arc targets |
| Power source | Electric-arc power, Filament power, |
| Process gas control | Mass flowmeter + Electromagnetic ceramic valve |
| Vacuum chamber structure | Vertical side opening door, pump system postposition, double water cooling |
| Vacuum system | Molecule pump +Roots pump +Mechanical pump(8.0*10 -5 Pa)
Diffusion pump +Roots pump +Mechanical pump(8.0*10 -4 Pa) |
| Workpiece motion mode | Public rotation Frequency control: 0-20 rotation per minute |
| Measure mode | Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa |
| Control mode | Manual/Automatic/PC/PLC + HMI/PC four choice of control mode |
| Remark | We can design the dimension of the equipment according to customer's special technique requirement. |
DongGuan HuiCheng Vacuum Technology Co., Ltd is a high-tech enterprise specialized in the R&D, Production and Marketing of various kinds of the vacuum equipments. Our company aggregates many excellent technicians in the vacuum industry, including engineers with the senior and middle technique titles. We also invite the senior experts and experienced technicians to be responsible for the development and design of the new products, insure the high technology and quality of the vacuum equipment. Our products are popular with both the domestic and overseas clients, and have a high reputation in the vacuum industry.
Our company is dedicated to the R&D of the series of the vacuum coating machine. We have been designed various coating technics projects according to different requirements successfully, especially in the fields of mobile(computer) shell, electronical appliance, metal, auto parts and high-tech industries, etc. Particularly we designed the special wheels coating machine for the VIP enterprise in Zhejiang Province in 2007, bringing great benifits for the client, making prominent contribution to the environment protection and generating extremely positive social effectiveness. It is high appreciated by the government and craft brother. Therefor this project is listed to the item of the Nation Star Project. Our main products also include slide valve vacuum pump, Roots vacuum pump, water ring vacuum pump, rotary-vane vacuum pump, various vacuum units and different vacuum heating energy equipments, etc.
Our company sticks to the selling concepts of"People-Oriented, Keeping improving, Innovative and Factualistic, Customer First"; Holding the management policy of "Keep the science and technology ahead, Put quality and service at the first place"; Carrying forward our corporate spirits"Honesty and High efficiency, Unity and Struggle, Factualic and Innovative". We'll continue to hold the development and improvement as our main rhythm, stepping forward to the goal of becoming diversification, internationalization and high technological modern enterprise. We will make new contribution to set up the international advanced level in the vacuum fields.
