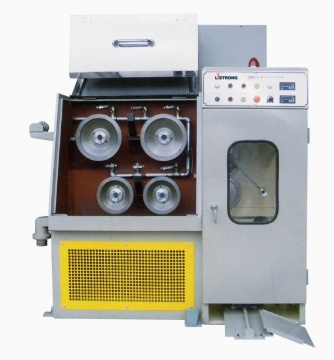

We firmly believe that quality is life, We are willing to work with you to Create new and old customers a Better tomorrow-CCA wire drawing machine.
|
Products models |
B22 |
B24 |
|
Line speed |
Max2700m/min |
Max2700m/min |
|
Inlet wire |
0.4— 1.2mm |
0.4— 1.2mm |
|
Main motor |
Stepless transmission control with inverter |
|
Finish dia |
0.10— 0.45mm |
0.08— 0.45mm |
|
Spool capacity |
20— 80kg |
20— 80kg |
|
Brake |
Electromegetic braking automatic wire broken or full beam stop |
|
Eye die holder |
Adjustable in up-down and front-back direction |
|
No. of dies |
22 |
24 |
|
Capstan |
Ten ceramic layer |
Eleven ceramic layer |
|
Reduction rate |
15% |
13% |
|
Power consumption |
15— 20kw |
15— 20kw |
|
Dimension |
2000*1800*1890 |
2000*1800*1890 |
|
weight |
2300kg |
2300kg |
Wire drawing machine, copper wire drawing machine, CCA wire drawing machine, CCS wire drawing machine, alloy wire drawing machine, Aluminium wire drawing machine, wire drawing machine+continuous annealer, drawing with annealing equipment, annealing machine, annealing and tinning machine, coarse wire drawing machine, medium wire drawing machine, fine wire drawing machine.
Yancheng Aijin Electrical Machinery Co., Ltd., is one of the best professional company which is specially designed equipment and accessories for manufacturing wire and cable. We are interested in supplying our high quality products to you on favorable terms and conditions.
