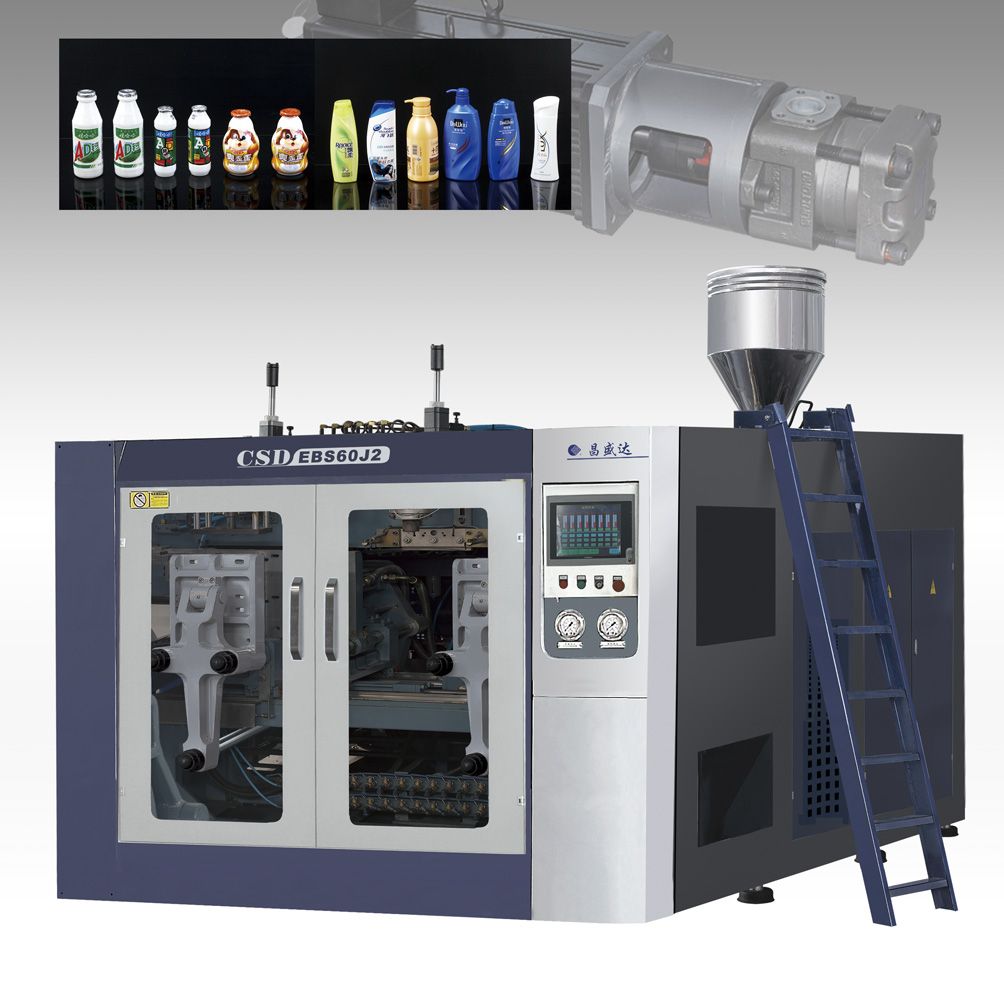

Model: CSD-EBS60 Double-station (Big bottle)Extrusion Blow Molding Machine
Features:
1. Economize On Electricity:EBS series extrusion blow molding machine is an economical and environmental machine. Comparing with conventional extrusion blow molding machine, EBS machine with servo motor drive can save over 50% electricity for motive power.
2. Economize On Water:It can save a lot of cooling water when the surrounding temperature is below 30 degrees.
3. Low Noise:The noise is very low in non-high-pressure situation.
![]()
|
Technical Parameter of CSD-EBS Double-station(Big bottle)Extrusion Blow Molding Machine |
|
Model |
Unit |
CSD-EBS50 |
CSD-EBS60 |
CSD-EBS70 |
CSD-EBS80 |
|
Screw Diameter |
mm |
50 |
60 |
70 |
80 |
|
Extrusion Capacity PP,PE |
kg/h |
36 |
55 |
70 |
100 |
|
Cycle |
s |
7 |
9 |
10 |
12 |
|
Screw |
L:D |
24:1 |
26:1 |
26:1 |
26:1 |
|
Mold Center Distance |
mm |
|
|
|
|
|
Screw Rotating Speed |
R/min |
10-85 |
10-80 |
10-75 |
10-75 |
|
Mold Stroke |
mm |
120-300 |
150-390 |
220-520 |
280-600 |
|
Max.Mold Dimension(W×H) |
mm |
300×300 |
360×360 |
400×360 |
500×480 |
|
Drive Motor Capacity |
kw |
11 |
18.5 |
25 |
37 |
|
Hydraulic Pump Capacity |
kw |
7.5 |
9 |
11 |
15 |
|
Heating Capacity |
kw |
7.2 |
10 |
12.4 |
15 |
|
Number of Heaters |
|
3 |
4 |
6 |
6 |
|
Clamping Force |
Kn |
40 |
70 |
85 |
120 |
|
Transfer Displacement Stroke |
mm |
340 |
390 |
440 |
550 |
|
Air Pressure |
Kgf/cm² |
6-8 |
6-8 |
6-8 |
6-8 |
|
Air Consumption |
M³/min |
0.4 |
0.5 |
0.6 |
0.8 |
|
Cooling Water Pressure |
Kgf/cm² |
3 |
3 |
3 |
3 |
|
Cooling Water Consumption |
L/min |
30 |
40 |
60 |
70 |
|
Product Weight |
G |
8-120 |
30-380 |
40-430 |
55-550 |
|
Machine Weight |
Kg |
|
|
|
|
|
Dimension |
mm |
2900×3000×2400 |
3300×3200×2800 |
3800×2800×2700 |
|
