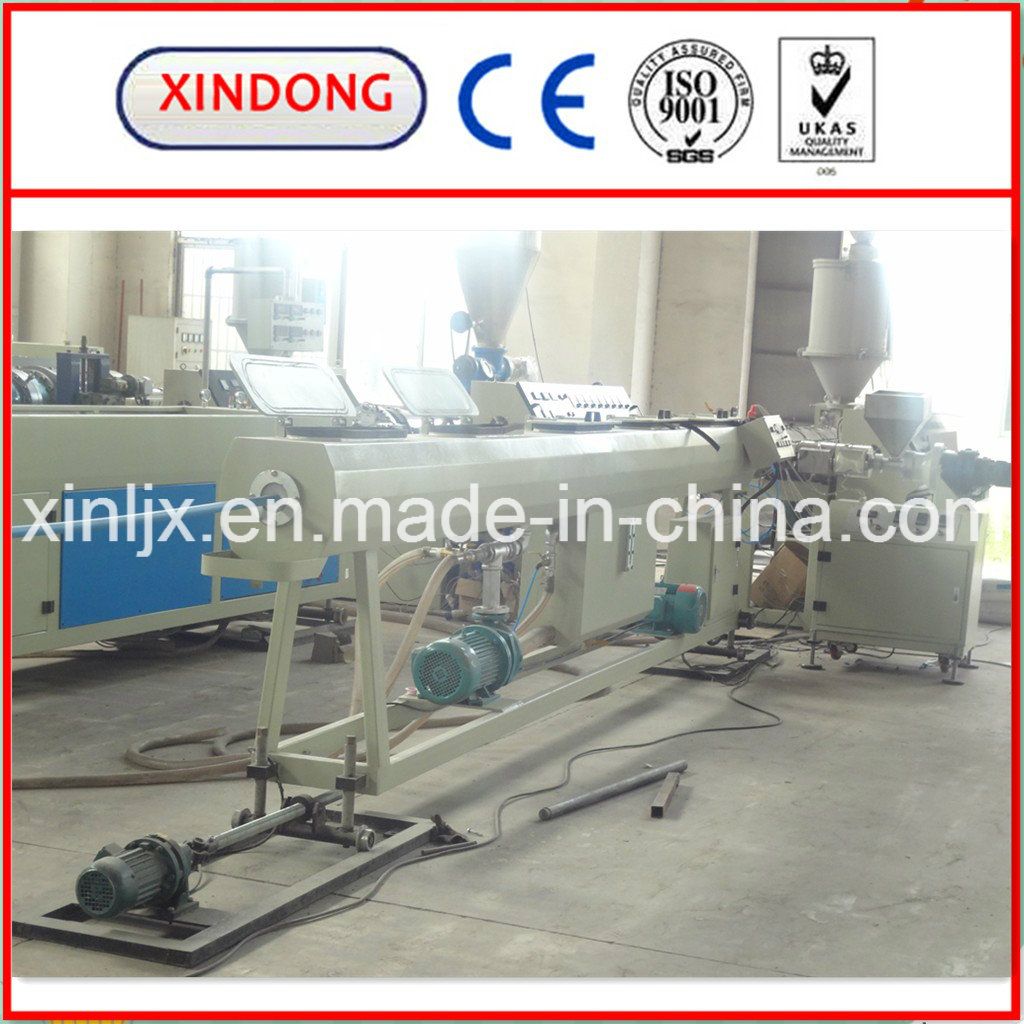

PPR/PE production line
Also called HDPE/PE pipe production, PPR/PE production line, PE/HDPE pipe extrusion/production line, PE gas and water supply pipe line, PE pipe extrusion line.
We are manufacturer for PE PPR /PVC pipe extrusion line.
Main applications:
This production line is composed of single screw extruder, vacuum shaping tank, spraying cooling tank, drawer, cutter, stacker, and also coordinated with different specification of moulds, to produce pressured water-supply, draining, gas, chemical antisepsis pipe materials etc.
| Model number | HDPE-16/63 | HDPE-20/110 | HDPE-50/160 | HDPE-75/250 | HDPE-110/315 | HDPE-200/450 | HDPE-315/630 | PE-400/800 |
| Pipe diameter | 16-63mm | 20-110mm | 50-160mm | 75-250mm | 110-315mm | 200-450mm | 315-630mm | 400-800mm |
| Max output | 150kg/h | 200kg/h | 350kg/h | 350kg/h | 350kg/h | 450kg/h | 850kg/h | 850kg/h |
| Production rate | 1-15m/min | 1.2-12m/min | 0.6-8m/min | 0.5-4m/min | 0.4-3.7m/min | 0.3-3m/min | 0.2-2m/min | 0.1-1 m/min |
| Extruder model | SJ-65/30 | SJ-65/33 | SJ-75/33 | SJ-75/33 | SJ-75/33 | SJ-90/33 | SJ-120/33 | SJ-120/33 |
| Installed power | 85kw | 110kw | 125kw | 180kw | 260kw | 325kw | 480kw | 600kw |
| Center height | 1000mm | 1000mm | 1000mm | 1000mm | 1100mm | 1100mm | 1200mm | 1300mm |
| Installation area | 35x3.0x2.0m | 38*3.1*2.2m | 38*3.1*2.2m | 40*3.2*2.4m | 42*3.2*2.4m | 52*3.3*2.6 m | 60*3.5*2.8m | 68*3.6*3.0m |
