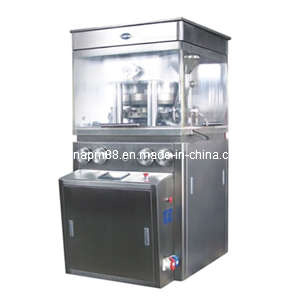

ZP-27 rotary tablet press is a double-pressing type, continuous automatic tablet press for pressing granular raw materials into tablets with different shapes, double color and impressed letters on both sides. It is mainly used in manufacturing piece prescription in pharmaceutical, chemical, foods, electronics industry.
Operating Principle of ZP-27 Rotary Tablet Press:
1. The cover of ZP-27 rotary tablet press is made of stainless steel with close type. The inner tablet surface is also made of stainless steel materials which could keep surface luster and prevent from cross pollution. Our ZP-27 rotary tablet press meets GMP requirement.
2. Equipped with plexiglass perspective window which could help to observe the status of pressing piece. Side blank could be fully opened, easy to clean and maintain. All monitors and operating components are in good order. Frequency changing, speed regulating apparatus are used to regulate. The convenient operation and smooth rotation are safe.
3. Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.
Combining ZP-27 rotary tablet press with electricity, equipped with touching key and screen.
The first kind rotary tablet press is with semi-automatically lubricating equipment and plexiglass anti-dust cover on the upper of revolving table.
4. Transmitting system is sealed in the oil box under the main machine. It is a separate component. No pollution, easy heat dissipation, wear resistance.
5. Powder cleaner could absorb the powder in the piece-pressing room.
6. Easily-damaged components such as upper orbit, material-adding machine, transmitting pole, powder measurer have general structures with ZP33 products which could help to be standard, general and series.
TYPE ZP-27
Dies (sets) 27
Max. Pressure (Kn) 100
Max. Dia. Of tablet (mm) 30
Max. Thickness of tablet(mm) 12
Max. Filling Depth (mm) 25
Max production capacity (up to32mm) (pieces/h) 81000
Max production capacity (up to16mm) (pieces/h) 162000
Max production capacity (up to9mm) (pieces/h) 243000
Max production capacity (up to6mm) (pieces/h) 324000
Rotational diameter (mm) 445
Rotational speed of revolving table (r/min) 10-25
Diameter of middle mould (mm) 45
Highness of middle mould (mm) 30
Length of up and down punch pole (mm) 32
Length of up punch pole (mm) 175
Length of down punch pole (mm) 180
Overall dimensions(mm) 1000× 1250× 1900
Net weight (kg) 3200
Motor model YU132M4A
Motor (kW) 7.5
Voltage(V) 380
