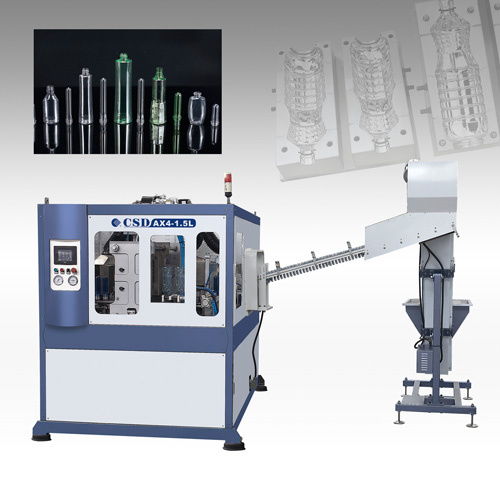

CE Approved with Ax Down Blow Series Automatic Blow Molding Machine (CSD-AX4-1.5L)

CE Approved with Ax Down Blow Series Automatic Blow Molding Machine (CSD-AX4-1.5L)
Price: US $ 71500/Piece
Trade Terms: FOB,CFR
Min Order: 1/Piece
Pay Type: L/C,T/T
Advantage

1. Inventional patent design heating channel with side-open stand, convenient for heating lamps replacement and machine maintenance;

2. Compact setting preform holders, no chain moving, performs stay in heating channel for longer time heating, saving power consumption.

3. Imported PLC automation control enable non-stop machine parameter adjustment.

4. Suitable for auto production of oil bottles, jars, and irregular neck containers.

5. World famous brand pneumatic components.

6. World famous brand electrical components.



Following is Blow Mold with four cavityes.
AX SERIES BLOW MOLDING MACHINE
Item  UNIT CSD-AX1-2.5L CSD-AX2-2L CSD-AX3-1.5L CSD-AX4-1.5L
Cavity   1 2 3 4
Product volume L ≤ 2.5L ≤ 2L ≤ 1.5L ≤ 1.5L
Recommend Production Capacity Pcs/h 1100-1600Pcs/h
Based on 500ml  bottle,
Preform Neck 28-30mm
Weight: 17gram
2100-2400Pcs/h
Based on 500ml  bottle,
Preform Neck 28-30mm
Weight: 17gram
2900-3200Pcs/h
Based on 500ml  bottle,
Preform Neck 28-30mm
Weight: 17gram
3900-4200Pcs/h
Based on 500ml  bottle,
Preform Neck 28-30mm
Weight: 17gram
Max.Diameter of Product mm φ 120 φ 100 φ 90 φ 90
Neck Size of Product mm φ 15-φ 38 φ 15-φ 38 φ 15-φ 38 φ 15-φ 38
Useful Area of Mould Plate mm 200× 350 300× 350 380× 350 480× 350
Mould Thickness mm 200 200 200 200
Mould Stroke mm 160 160 110 110
Clamping Force Kn 120 120 120 210
Stretching Stroke mm 450 430 430 430
Working Pressure Mpa 0.8-1.0 0.8-1.0 0.8-1.0 0.8-1.0
Blowing Air Pressure Mpa 2.6-3.0 2.6-3.0 2.6-3.0 2.6-3.0
Measurement of  Main Blower mm 1820× 1100× 1900 2280× 1500× 1900 2650× 1780× 1900 2810× 2000× 1900
Power of Preheater Kw 32 36 70 72
A 48 54 105 108
Power of Main Blower Kw 3 3 5 5
Weight of Main Blower T 1.5 2 2.5 3
Measurement of Conveyer mm 2570× 2570× 2700 2570× 2570× 2700 2570× 2570× 2700 2890× 2570× 2700
Weight of Conveyer T 0.2 0.2 0.2 0.2
HIigh Pressure Air Compressor Unit Power Kw 18.5 18.5 x 2 22 x 2 22 x 2
Pressure Mpa 3.0  3.0  3.0  3.0
Discharging Capa. m³ /min 1.5 3 4 4
Low Pressure Air Compressor Unit Power Kw ___ 11 11 22
Pressure Mpa ___ 1.25 1.25 1.25
Discharging Capa. m³ /min ___ 1.6 1.6 3.0
Air  Tank Capacity ___ 0.6 0.6 0.6
Working Pressure MPa ___ 3.0  3.0  3.0
Water Chiller Cooling Capacity Kcal/h 11900 11900 11900 24090
CompressorMotor HP 5 5 5 10
Air Filter
Oil Filter
Odor Removal
Filter
Capacity m³ /min 2 3 4 4
Working Pressure MPa 3.0  3.0  3.0  3.0
Item  UNIT CSD-AX1-5L CSD-AX1-M-5GAL CSD-AX2-W-5L CSD-AX2-M-10L CSD-AX2-M-5L
Cavity   1 1 2 2 2
Product volume L ≤ 5L ≤ 5GAL ≤ 5L ≤ 10L ≤5L
Recommend Production Capacity Pcs/h 700-850Pcs/h
Based on 5L bottle,
Preform Neck 45mm
Weight: 93gram
220-240Pcs/h
Based on 5L bottle,
Preform Neck 55mm
Weight: 750gram
1400-1500Pcs/h
Based on 5L  bottle,
Preform Neck 45mm
Weight: 93-120gram
1100-1200Pcs/h
Based on 5L bottle,
Preform Neck 45mm
Weight: 93-120gram
1400-1500Pcs/h
Based on 5L bottle,
Preform Neck 80mm
Weight: 93gram
Max.Diameter of Product mm φ 170 φ 270 φ 180 φ 200 φ 170
Neck Size of Product mm φ 38-φ 45 φ 45-φ 60 φ 60-φ 120 φ 45-φ 60 φ 38-φ 45
Useful Area of Mould Plate mm 240× 400 400× 570 420× 320 600× 460 550× 400
Mould Thickness mm 240 400 250 300 240
Mould Stroke mm 220 330 200 240 220
Clamping Force Kn 240 300 300 300 240
Stretching Stroke mm 450 660 380 590 450
Working Pressure Mpa 0.8-1.0 0.8-1.0 0.8-1.0 0.8-1.0 0.8-1.0
Blowing Air Pressure Mpa 2.6-3.0 2.6-3.0 2.6-3.0 2.6-3.0 2.6-3.0
Measurement of  Main Blower mm 2350× 1550× 1900 4200× 2000× 2300 3200× 2000× 1900 3200× 2000× 2200 3200× 2000× 2200
Power of Preheater Kw 48 117 84 60 60
A 72 175 126 90 90
Power of Main Blower Kw 3 5 5 5 5
Weight of Main Blower T 2 4.5 3.5 3.5 3.5
Measurement of Conveyer mm 2570× 2570× 2700 ___ ___ ___ ___
Weight of Conveyer T 0.2 ___ ___ ___ ___
HIigh Pressure Air Compressor Unit Power Kw 22 x 2 22 x 4 22 x 3 22 x 4 22 x 4
Pressure Mpa 3.0  3.0  3.0  3.0  3.0
Discharging Capa. m³ /min 4 6 6 10 8
Low Pressure Air Compressor Unit Power Kw 11 22 22 30 22
Pressure Mpa 1.25 1.25 1.25 1.25 1.25
Discharging Capa. m³ /min 1.6 3.0  3.0  4.0  3.0
Air  Tank Capacity 0.6 2 x 2 0.6 x 2 2 2
Working Pressure MPa 3.0  3.0  3.0  3.0  3.0
Water Chiller Cooling Capacity Kcal/h 11900 11900 35200 35200 35200
CompressorMotor HP 5 5 10 10 10
Air Filter
Oil Filter
Odor Removal
Filter
Capacity m³ /min 1 6 6 10 8
Working Pressure MPa 3.0  3.0  3.0  3.0  3.0
Prod Model: CSD-AX4-1.5L
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Preform Loading: Automatic
No. Of Cavity: Four
Max. Product Volume: 1.5 Liter
Preform Neck Size: 15-38mm
Recommend Production Capacity: 3900-4200PCS/H for 500ml Bottle, 17g
Automation: Automatic
Making Method Of Parison: Stretch Blow
Raw Material: PET
Computerized: Computerized
Changshengda Machinery (Zhejiang) Co. Ltd. (CSD) was established in 1992 with a registered capital of $5.2 million USD from Australian sole-ownership enterprises, and boasts a 72, 000 square meter factory zone. The company specializes in research and development in environmental protection, high-precision energy saving injection molding machines for medical and food industry, PET two stage automatic injection stretch blow molding machines, automatic extrusion blow molding machines and various types of plastic moulds and other hi-tech products. Its produce a wide range of goods such as food and beverages packing, plastic goods, pharmaceuticals packing, cleaning products, auto parts, toiletries, home appliances, construction materials, electronics, and so on. CSD's products achieved exceptional sales in South East Asia, the Americas, Eastern Europe, the Middle East, Europe and Africa. Currently the company is working in conjunction with ten of China's most famous brands. CSD's products have gained recognition both inside and outside China as a highly precise, energy-efficient and incredibly streamlined manufacturing company.

CSD boasts a standardized and streamlined production and operations system which has received ISO9001 quality authentication. The company has also been giving the following honorary titles: "Provincial Hi-tech Enterprise R&D Centre", "Zhejiang Province Hi-tech Enterprise", "Zhejiang patent demonstration enterprise", among others. CSD's business ethic primarily focuses on three aspects - one, acting in good faith at all times; Two, making science and technology a priority; And three, thriving on producing superior quality products. The company makes use of advanced design concepts, sophisticated processing equipment and incredibly precise manufacturing methods to meet the needs of high-end clients both inside and outside China.

CSD's products are continuously being innovated in a bib to ensure product quality and secure a reputable corporate image. The company also promotes the service commitment of one station service. The establishment of CSD after-sales centers all around the world not only demonstrates the company's dedication to thorough after-sales support, but also shows a commitment to providing excellent goods at reasonable prices to both new and existing clients.

CSD's employees are driven towards pluralism, standardization and the industrialized development of new technologies, and the company is committed to being an industry leader in plastic goods manufacturing.
