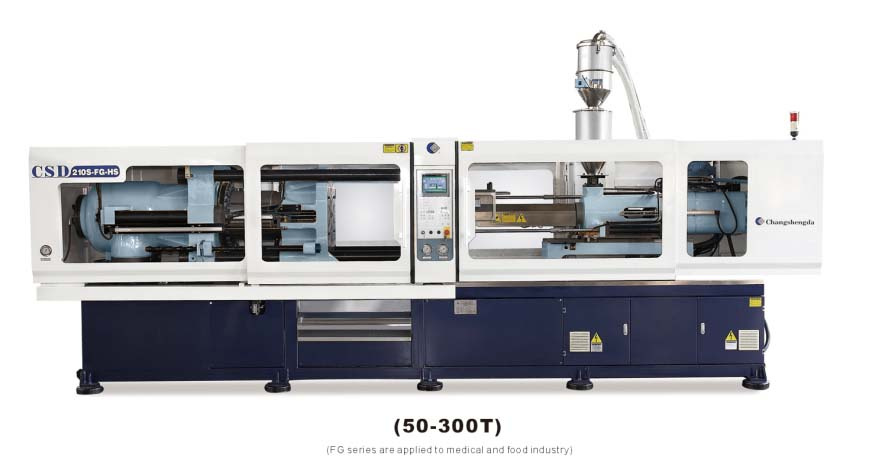

CSD-FG SERIES high precision, oil free, servo, and direct pressure injection molding machine for medical and food.
Advantage:
1. Environmental protection: oil free for the equipment surface
2. High speed: single cylinder injection
3. Energy saving: servo double closed loop system
4. Characteristic:straight mode of mold opening and closing
5. Precision: linear guide used in injection station, for open and close mode
6. Advantage: large mold opening distance
7. Control: european famous brand is adopted, temperature control
![]()
|
|
CSD-50S-FG |
CSD-90S-FG |
CSD-130S-FG |
CSD-170S-FG |
CSD-210S-FG |
CSD-250S-FG |
CSD-300S-FG |
CSD-420S-FG |
CSD-550S-FG |
CSD-720S-FG |
|
A |
B |
A |
B |
A |
B |
A |
B |
A |
B |
A |
B |
A |
B |
A |
B |
A |
B |
A |
B |
|
injection part |
SCREW DIMETER |
mm |
30 |
33 |
35 |
38 |
40 |
43 |
45 |
50 |
50 |
56 |
57 |
63 |
65 |
70 |
75 |
80 |
80 |
90 |
90 |
100 |
|
SCREW L/D RATIO |
L/D |
22 |
20 |
22 |
20 |
22 |
20 |
22 |
21 |
22 |
21 |
22 |
21 |
22 |
21 |
22 |
20 |
22 |
20 |
22 |
20 |
|
SHOT VOLUME(THEORETICAL) |
cm³ |
92 |
111 |
150 |
177 |
244 |
278 |
358 |
441 |
471 |
590 |
689 |
841 |
912 |
1058 |
1590 |
1808 |
1929 |
2443 |
2830 |
3495 |
|
SHOT WEIGHT |
g |
84 |
101 |
137 |
161 |
222 |
253 |
325 |
401 |
429 |
537 |
627 |
765 |
830 |
963 |
1446 |
1645 |
1755 |
2222 |
2576 |
3180 |
|
oz |
2.9 |
3.5 |
4.8 |
5.7 |
7.8 |
8.9 |
11.4 |
15.4 |
15 |
18.8 |
21.9 |
26.8 |
29 |
33.7 |
51 |
58 |
62 |
78.3 |
91 |
112 |
|
INJECTION PRESSURE |
MPa |
200 |
175 |
210 |
186 |
192 |
133 |
192 |
156 |
200 |
160 |
182 |
150 |
187 |
162 |
185 |
165 |
185 |
168 |
188 |
168 |
|
SCREW SPEED |
g/s |
63 |
76 |
86 |
101 |
112 |
130 |
141 |
175 |
175 |
219 |
206 |
252 |
267 |
312 |
358 |
407 |
407 |
515 |
515 |
636 |
|
SCREW SPEED |
r/min |
0~220 |
0~220 |
0~200 |
0~200 |
0~200 |
0~180 |
0~180 |
0~160 |
0~150 |
0~130 |
|
PLASTICIZING CAPACITY |
g/s |
8.9 |
10.6 |
11.8 |
16.3 |
17.7 |
22.1 |
25 |
32 |
32 |
42.8 |
41.1 |
53.3 |
56.8 |
67.7 |
71 |
83 |
77.8 |
105 |
91 |
119.3 |
|
clamping part |
CLAMPING FORCE |
kN |
500 |
900 |
1300 |
1700 |
2100 |
2500 |
3000 |
4200 |
5500 |
7200 |
|
OPEN STROKE |
mm |
420 |
480 |
510 |
660 |
720 |
770 |
820 |
800 |
880 |
950 |
|
SPACE BETWEET TIE BARS(WXH) |
mm |
330 x 330 |
380 x 380 |
420 x 420 |
480 x 480 |
540 x 540 |
600 x 600 |
690 x 690 |
750 x 820 |
940 x 870 |
1000x 980 |
|
MOULD THICKNESS |
mm |
150~570 |
180~660 |
200~710 |
220~880 |
260~980 |
280~1050 |
450~1250 |
400~1700 |
450~1880 |
460~2150 |
|
EJECTOR FORCE |
kN |
25 |
30 |
40 |
50 |
60 |
70 |
85 |
130 |
160 |
180 |
|
EJECTOR STROKE |
mm |
80 |
100 |
130 |
180 |
200 |
200 |
230 |
250 |
280 |
300 |
|
EJECTOR NUMBER |
n |
1 |
5 |
5 |
5 |
5 |
9 |
13 |
17 |
21 |
21 |
|
others |
HEATER POWER |
kW |
7.2 |
8.5 |
9.3 |
11.6 |
18 |
26 |
35 |
32 |
50 |
58 |
|
PUMP MOTOR POWER |
kW |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
55 |
64 |
80 |
|
MAX PUMP PRESSURE |
MPa |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
|
MACHINE DIMENSION(LxWxH) |
Mm |
3.9 X 1.1 X 1.5 |
4.3X 1.2 X 1.7 |
4.8 X 1.3 X 1.7 |
5.56X1.48X1.72 |
6.12 X 1.47 X 1.83 |
6.58X1.68X2.0 |
7.0X2.0X2.3 |
7.8X22.5X2.48 |
8.3X2.43X2.52 |
8.8X2.53X2.58 |
|
MACHINE WEIGHT |
T |
3 |
3.8 |
4.5 |
6 |
7.2 |
9.2 |
11.3 |
18.5 |
23.5 |
32 |
|
OIL TANK CAPACITY |
cm³ |
300 |
350 |
400 |
500 |
600 |
700 |
900 |
900 |
1000 |
1100 |
