The features of Automatic Blowing Molding Machine Model CSD-AB:
1. Adopting imported servo motor ensures smooth performance and exact orientation. The running speed can be adjusted randomly according to the production requirement. With preform ray-inspection device, the clamping system would stop automatically while perform were absent. Blow molding machine, blow moulding machine.
2. Advanced Double-toggle clamping structure makes clamping force stronger. Electro-motion mold adjustment and auto-lubrication device ensure easy operation.
3. Special designed preheater offers wide use range for performs of different neck sizes. Adopting temperature control of layered infrared heating and PLC individual adjustment ensures even heat distriution and makes blow molding easier. When the temperature is over or lower than normal, the preform feeding device will pause automatically. It reduces the waste of raw material.
4. Color LCD screen PLC control panel saves a lot of bottle shaping technical data. All of the parameters can be adjusted successively on the touch screen during operation. No need to stop the machine for adjustment. Blow molding machine, blow moulding machine.
5. With the best design and fine manworkship, the machine is characterized by running smooth, easy operation and maintenance.
6. Auto-locking system protects machine from running under wrong conditions. Any mistake appears in any motion, hints will be shoun on the screen automatically. Meanwhile the machine will alarm and stop. The machine will restart automatically as soon as the problem was settled down. Long-distance-controlled computer supervises all of the procedures. In case the user met problems in production, the manufacturer would be able to provide technical service through long-distance-controlled computer. Blow molding machine, blow moulding machine.
7. With European Community Safety Attestation TUV CE Certificate.
![]()
|

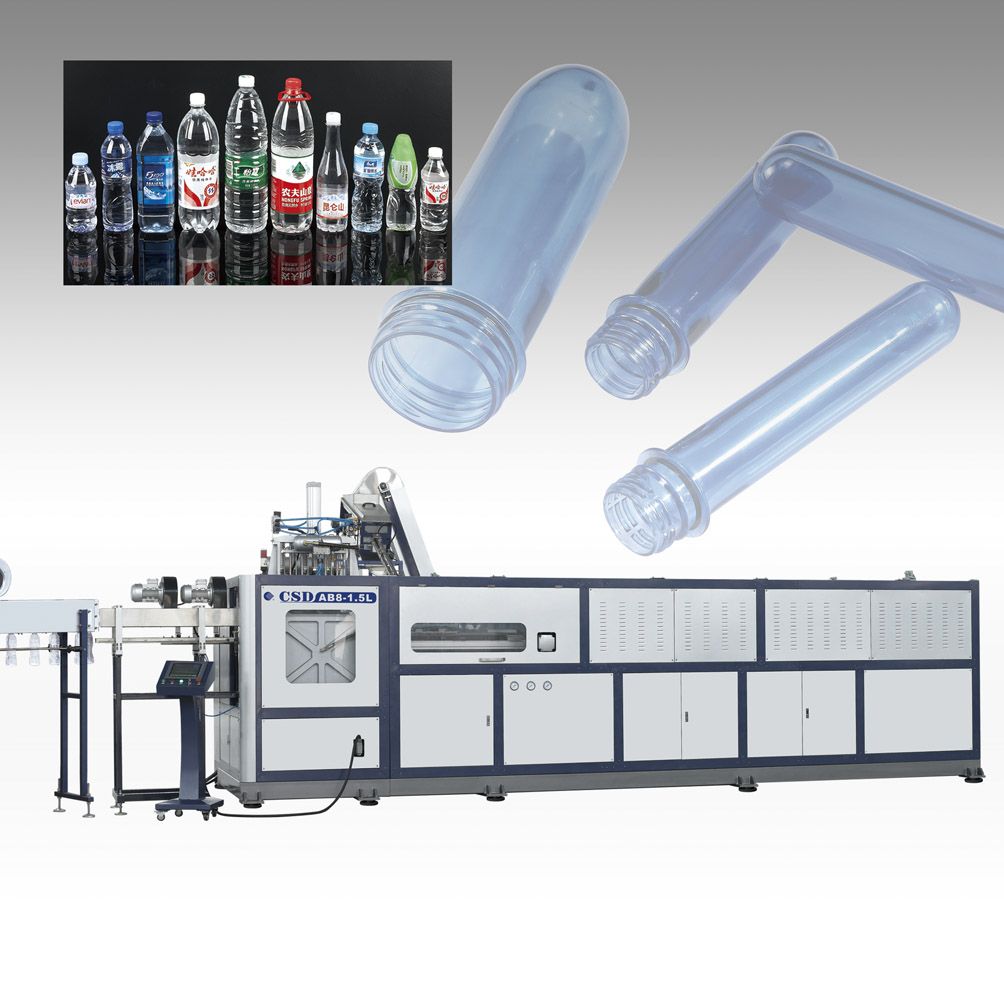

CSD-AB SERIES TWO-STAGE AUTOMATIC LINEAR HIGH-SPEED BLOW MOLDING MACHINE |
|
Item |
Unit |
CSD-AB8-1.5L |
|
Mold Number |
|
8 |
|
Production capacity |
L |
≤1.5L |
|
Production capacity |
Max Volume of Product(500ml)Pcs/h Preform Neck28-30mm |
9000Pcs/h(3.2s/cycle) |
Recommended
Production Capacity Pcs/h |
8600-9000Pcs/h
Based on 500ML bottle,
Preform Neck 28-30mm,
Weight:17gram,
Thickness:2.3mm
6700-7200Pcs/h
Based on 1500ML bottle,
Preform Neck 28-30mm,
Weight:42gram,
Thickness:3.3mm |
|
Max Diameter of Product |
Φ(mm) |
95 |
|
Neck Size of Product |
Φ(mm) |
15-32 |
|
Useful Area of Mould Plate |
mm |
1080×400 |
|
Max.Mould Thickness |
mm |
257 |
|
Min.Mould Thickness |
mm |
|
Mould Stroke |
mm |
116 |
|
Clamping Force |
Kn |
300 |
|
Stretching Stroke |
mm |
350 |
|
Working Pressure |
Mpa |
0.8-1.0 |
|
Blowing Air Pressure |
Mpa |
2.6-3.0 |
|
Measurement of Main Blower |
L×W×H(mm) |
9000×2000×1900 |
|
Power of Preheater |
kw |
200 |
|
A |
295 |
|
Actual Power of Preheater(based on 500ml bottle |
kw |
66 |
|
A |
100 |
|
Power of Main Blower |
kw |
8 |
|
A |
12 |
|
Weight of Main Blower |
T |
8 |
|
Measurement of Conveyer |
L×W×H(mm) |
3600×2500×3500 |
|
Weight of Conveyer |
T |
0.4 |
High Pressure
Air Compressor Unit |
Power |
kw |
18.5×8 |
|
Pressure |
Mpa |
3 |
|
Discharging Capa. |
m³/min |
12 |
Low Pressure
Air Compressor Unit |
Power |
kw |
22 |
|
Pressure |
Mpa |
1.25 |
|
Discharging Capa. |
m³/min |
3 |
|
Air Tank |
Capacity |
m³ |
0.6×2 |
|
Working PRESSURE |
Mpa |
3 |
|
Water Chiller |
Cooling Capacity |
kcal/hr |
49800 |
|
Compressor Motor |
HP |
15 |
|
Air Dryer |
Capacity |
m³/min |
12 |
|
Working PRESSURE |
Mpa |
3 |
|
After Cooler |
Capacity |
m³/min |
12 |
|
Working PRESSURE |
Mpa |
3 |
Air Filter
Oil Filter Odor
Removal Filter |
Capacity |
m³/min |
12 |
|
Working PRESSURE |
Mpa |
3 |
Changshengda Machinery (Zhejiang) Co. Ltd. (CSD) was established in 1992 with a registered capital of $5.2 million USD from Australian sole-ownership enterprises, and boasts a 72, 000 square meter factory zone. The company specializes in research and development in environmental protection, high-precision energy saving injection molding machines for medical and food industry, PET two stage automatic injection stretch blow molding machines, automatic extrusion blow molding machines and various types of plastic moulds and other hi-tech products. Its produce a wide range of goods such as food and beverages packing, plastic goods, pharmaceuticals packing, cleaning products, auto parts, toiletries, home appliances, construction materials, electronics, and so on. CSD's products achieved exceptional sales in South East Asia, the Americas, Eastern Europe, the Middle East, Europe and Africa. Currently the company is working in conjunction with ten of China's most famous brands. CSD's products have gained recognition both inside and outside China as a highly precise, energy-efficient and incredibly streamlined manufacturing company.
CSD boasts a standardized and streamlined production and operations system which has received ISO9001 quality authentication. The company has also been giving the following honorary titles: "Provincial Hi-tech Enterprise R&D Centre", "Zhejiang Province Hi-tech Enterprise", "Zhejiang patent demonstration enterprise", among others. CSD's business ethic primarily focuses on three aspects - one, acting in good faith at all times; Two, making science and technology a priority; And three, thriving on producing superior quality products. The company makes use of advanced design concepts, sophisticated processing equipment and incredibly precise manufacturing methods to meet the needs of high-end clients both inside and outside China.
CSD's products are continuously being innovated in a bib to ensure product quality and secure a reputable corporate image. The company also promotes the service commitment of one station service. The establishment of CSD after-sales centers all around the world not only demonstrates the company's dedication to thorough after-sales support, but also shows a commitment to providing excellent goods at reasonable prices to both new and existing clients.
CSD's employees are driven towards pluralism, standardization and the industrialized development of new technologies, and the company is committed to being an industry leader in plastic goods manufacturing.
