The predecessor of CSD---HUANGYAN CHANGSHEN MOULD FACTORY was established in 1992 by a group of professionals with years of experience in plastic machinery and moulds. Focusing on the high class international market, we majored in making high quality blow molding machinery, PET perform moulds, bottle blow moulds and cap moulds, injection moulds of daily use plastic products from the very beginning. Our creative design and scientific productive technology occupied the leading place in the field of moulds in China. We exported our products to Southeast Asian Countries, Middle East Countries, African Countries and South American Countries through other exporters. With high efforts from our managers and employees, we succeeded in gaining our customers trust worldwide.
![]()
|

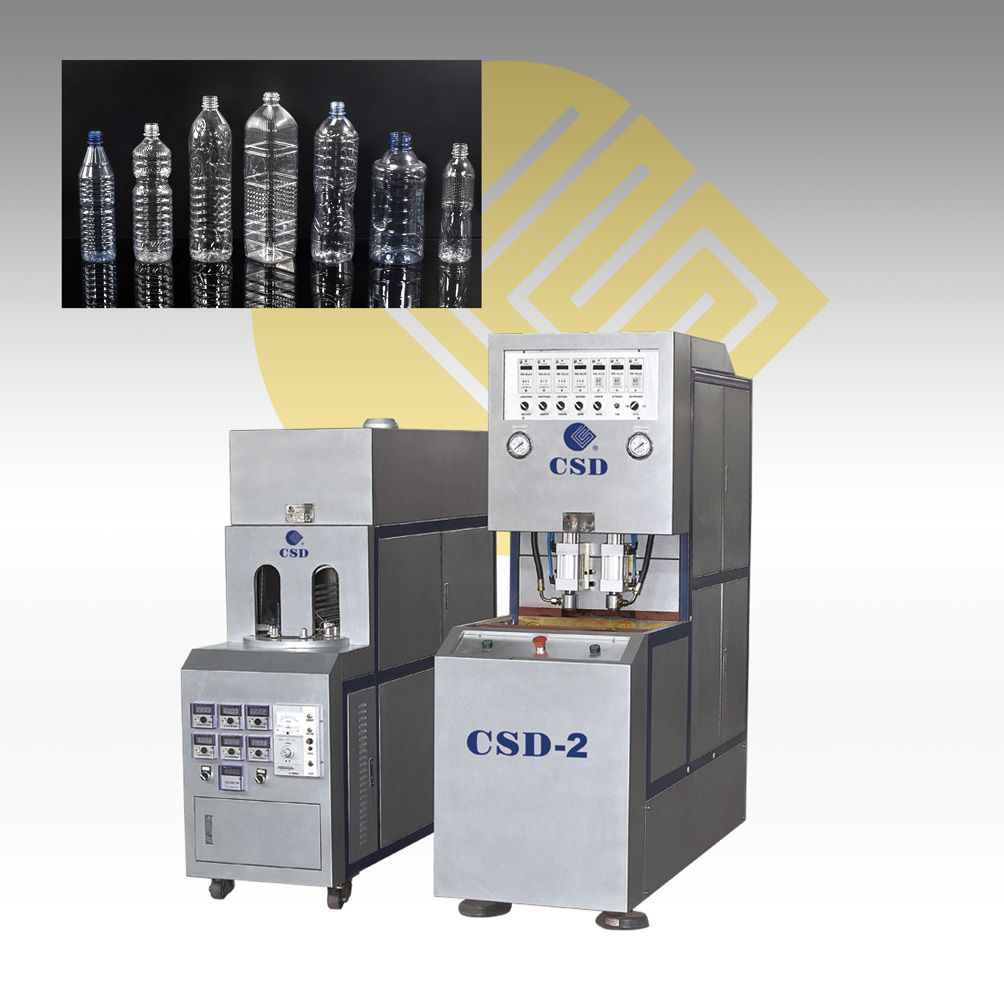

SEMI-AUTOMATIC BLOW MOLDING MACHINES |
|
Item |
Unit |
TECHNICAL DATA |
|
CSD-2P/CSD-2 |
CSD-3P/CSD-3 |
CSD-2P-4 |
|
Max.Volume of Product |
L |
2×2 / 1×3 |
2×2 / 1×7 |
1.5×4 |
|
Production Capacity |
Pcs/h |
840-360 |
840-360 |
1300 |
|
Neck Size of Product |
mm |
<75 |
<75 |
28-32 |
|
Useful Area of Mould Plate |
mm |
380×290 |
380×290 |
560×300 |
|
Max.Mould Thickness |
mm |
200 |
280 |
280 |
|
Min.Mould Thickness |
mm |
120 |
170 |
170 |
|
Mould Stroke |
mm |
135 |
210 |
265 |
|
Clamping Force |
kn |
80 |
80 |
100 |
|
Stretching Stroke |
mm |
410 |
410 |
500 |
|
Working Pressure |
Mpa |
1.0-1.25 |
1.0-1.25 |
1.0-1.25 |
|
Blowing Air Pressure |
Mpa |
2.5-3.0 |
2.5-3.0 |
2.5-3.0 |
|
Power of Main Blower |
kw |
0.1 |
0.1 |
0.15 |
|
A |
0.5 |
0.5 |
0.75 |
|
Power of Preheater |
kw |
12 |
24 |
24 |
|
A |
18 |
36 |
36 |
|
Weight of Main Blower |
kg |
690 |
800 |
1500 |
|
Weight of Preheater |
kg |
280 |
380 |
380 |
|
Measurement of Main Blower |
mm |
1520×580×1750 |
1830×580×1800 |
2300×800×2000 |
|
Measurement of Preheater |
mm |
1350×485×1450 |
1450×700×1350 |
1800×750×1500 |
Changshengda Machinery (Zhejiang) Co. Ltd. (CSD) was established in 1992 with a registered capital of $5.2 million USD from Australian sole-ownership enterprises, and boasts a 72, 000 square meter factory zone. The company specializes in research and development in environmental protection, high-precision energy saving injection molding machines for medical and food industry, PET two stage automatic injection stretch blow molding machines, automatic extrusion blow molding machines and various types of plastic moulds and other hi-tech products. Its produce a wide range of goods such as food and beverages packing, plastic goods, pharmaceuticals packing, cleaning products, auto parts, toiletries, home appliances, construction materials, electronics, and so on. CSD's products achieved exceptional sales in South East Asia, the Americas, Eastern Europe, the Middle East, Europe and Africa. Currently the company is working in conjunction with ten of China's most famous brands. CSD's products have gained recognition both inside and outside China as a highly precise, energy-efficient and incredibly streamlined manufacturing company.
CSD boasts a standardized and streamlined production and operations system which has received ISO9001 quality authentication. The company has also been giving the following honorary titles: "Provincial Hi-tech Enterprise R&D Centre", "Zhejiang Province Hi-tech Enterprise", "Zhejiang patent demonstration enterprise", among others. CSD's business ethic primarily focuses on three aspects - one, acting in good faith at all times; Two, making science and technology a priority; And three, thriving on producing superior quality products. The company makes use of advanced design concepts, sophisticated processing equipment and incredibly precise manufacturing methods to meet the needs of high-end clients both inside and outside China.
CSD's products are continuously being innovated in a bib to ensure product quality and secure a reputable corporate image. The company also promotes the service commitment of one station service. The establishment of CSD after-sales centers all around the world not only demonstrates the company's dedication to thorough after-sales support, but also shows a commitment to providing excellent goods at reasonable prices to both new and existing clients.
CSD's employees are driven towards pluralism, standardization and the industrialized development of new technologies, and the company is committed to being an industry leader in plastic goods manufacturing.
