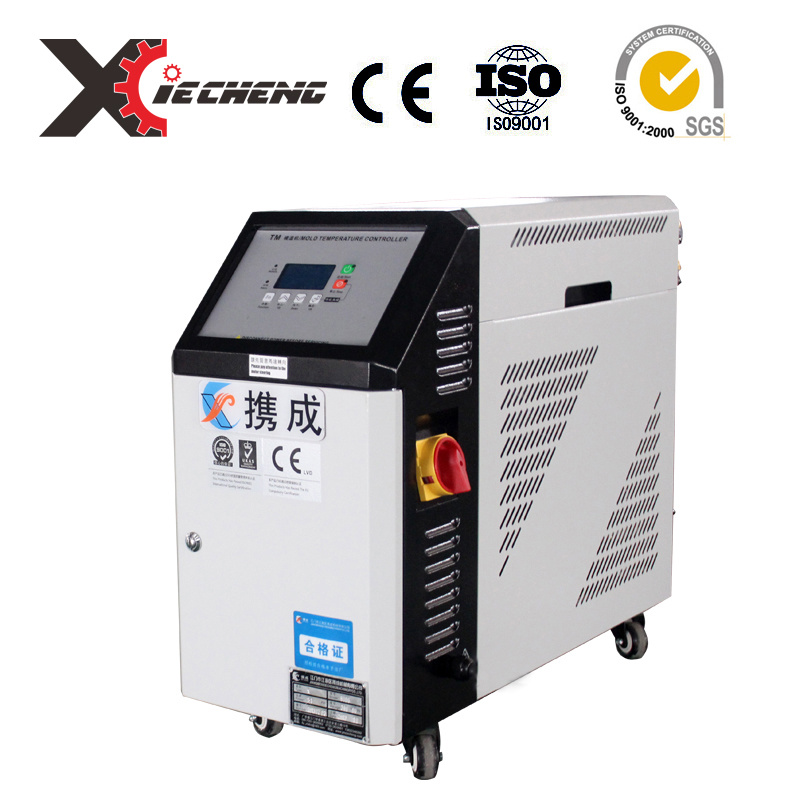

CE ISO SGS Certification Plastic Controller (XC-TM24KW-O)
1. PID temperature control--regulates error within ± 0.5° C, continuously and constantly, with high efficiency and energy saving.
2. CE ISO SGS Certification Plastic Controller Six series of protective measures--thermostatic and circuit alarm; Phase fault protect;
Pump protect; Overheat protect; Oil shortage protect.
3. CE ISO SGS Certification Plastic Controller Dual digital display shows the actual and set temperatures--direct and visual operations
4. Microcomputer chip control panel with light-touch switch--to start or turn off the machine automatically with just one single press
5. Visual and easy operations, easy to maintain;
6. Stainless steel tank-- durable without leakage or rust;
7. *Circumfluence design enables recollection of diathermanous oil, easily and rapidly;
8. Exquisite appearance with delicate size.
Model |
XC-TM24KW-O |
heat transfer medium |
heat transfer oil |
highest temperature |
200 C |
Pump power(kw) |
2.2 |
Pump flow(L/min) |
252 |
Throw of pump |
21 |
Heating power |
12*2 |
Inlet of medium |
1.5"*1 |
Practical cooling capacity(Kcal/h) |
1500 |
Dimension(mm) |
990*450*1000 |
Net weight(kg) |
110 |
